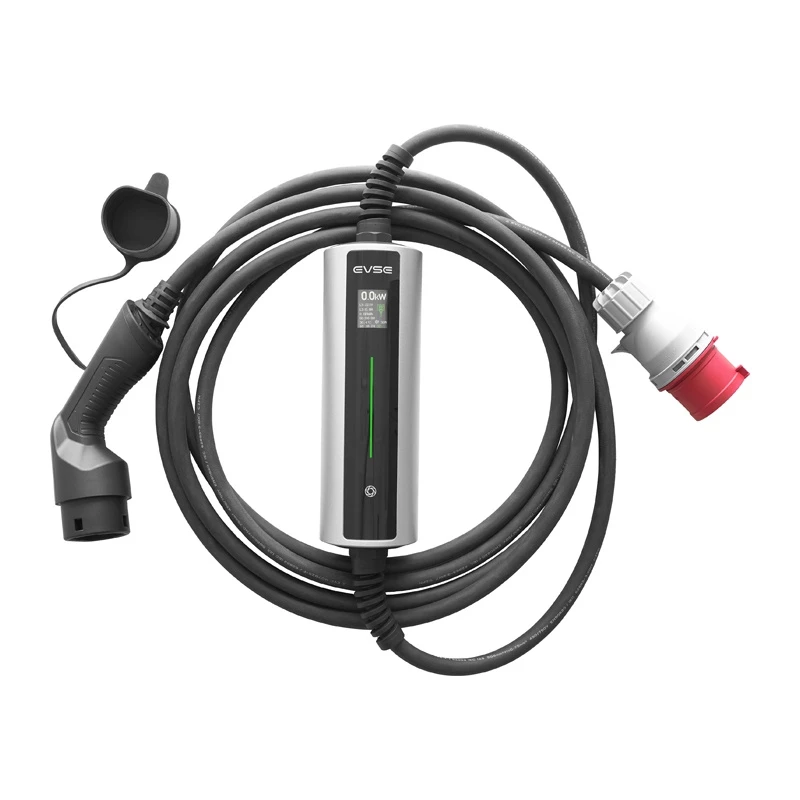

Besen BN70-BC-22KW-APP Caricabatterie portatile 22 kW Type 2 cavo di ricarica EV 5m

The Besen BN70-BC-22KW-APP Portable Charger is a high-performance electric vehicle charging solution designed for convenience and reliability. With 22 kW three-phase charging power and a 5-meter Type 2 cable, it offers fast and flexible charging for your EV at home or on the go.

Advantages

This portable charger combines robust construction with smart features. The IP65-rated control box ensures durability in outdoor conditions, while the integrated LCD screen and mobile app (Wi-Fi/Bluetooth) provide real-time monitoring and control. Adjustable current levels (8A to 32A) allow you to optimize charging speed based on your electrical setup.

Suitable for

• Electric vehicles with Type 2 (IEC 62196-2) inlet
• Three-phase power grids with CEE 32A 5-pin red plug
• Home, workplace, and travel charging

Key specifications

• Charging Power: 22 kW
• Charging Current: 32 A (adjustable: 8/10/13/16/20/24/32 A)
• Phases: 3-Phase
• Input Voltage: 400V AC
• Vehicle Connector: Type 2 (IEC 62196-2)
• Grid Plug: CEE 32A 5-Pin (Red)
• Cable Length: 5 meters
• Control: Mobile App (Wi-Fi/Bluetooth), LCD Screen
• IP Rating: IP65 (Control Box), IP54 (Connectors)
• RCD Protection: Type A + DC 6mA
• Safety: Over/Under Voltage, Overload, Short Circuit, Earth Leakage, Over Temperature, Lightning Protection
• Operating Temperature: -30°C to +50°C
• Housing Material: PC+ABS Alloy
• Certifications: CE, TUV

Recommendations

For optimal performance, ensure your electrical installation supports 22 kW three-phase charging. Always use a dedicated CEE 32A outlet. The adjustable current feature allows compatibility with lower-rated circuits.
