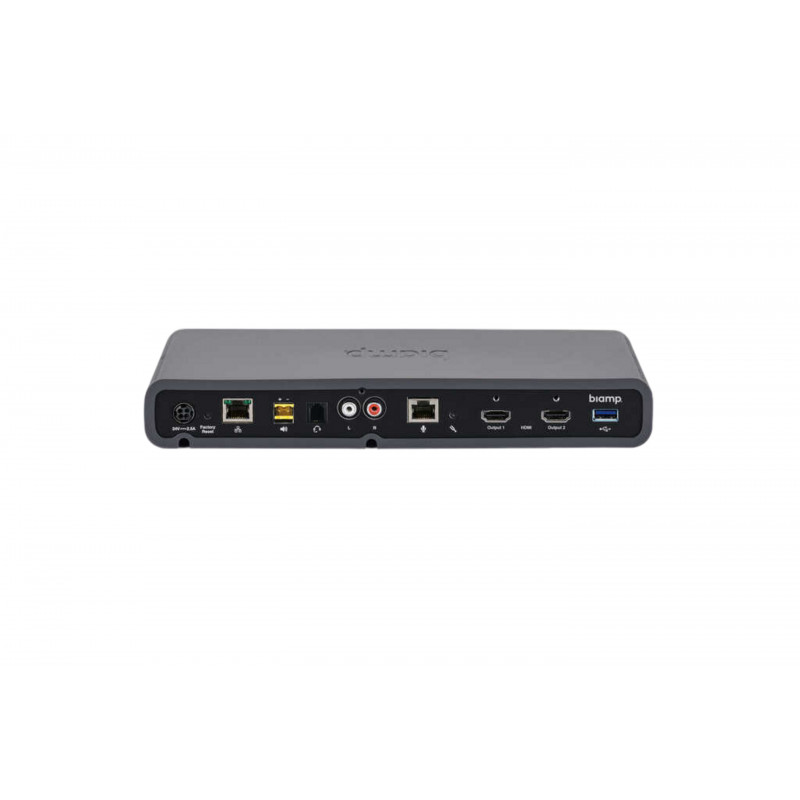

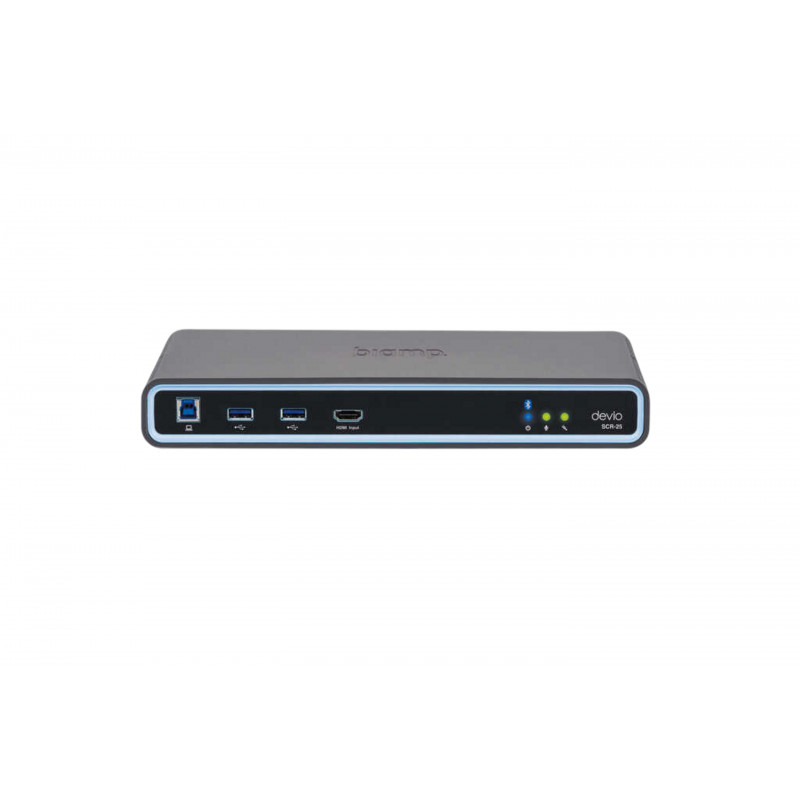

Biamp Devio SCR-25TX White hub per conferenze

The Biamp Devio SCR-25TX White is a compact conferencing hub designed for huddle rooms and small meeting spaces. It integrates seamlessly with Biamp Devio beamforming microphones and provides a complete audio-video processing solution with advanced features like Acoustic Echo Cancellation (AEC), Noise Reduction (NR), and Automatic Gain Control (AGC). The unit supports up to 4K UHD video pass-through via HDMI and offers flexible connectivity for USB peripherals and network control.

Advantages

Simplifies room setup with a single USB connection to the host PC, delivering high-quality audio and video. The PoE+ power supply eliminates the need for a separate power outlet, and the compact form factor allows for under-table or VESA mounting. Remote management via Biamp SageVue ensures easy deployment and monitoring.

Suitable for

• Huddle rooms and small meeting spaces
• Corporate offices and educational institutions
• Any environment requiring reliable audio conferencing with video

Key specifications

• Product Type: Conferencing Hub / Audio-Video Processor

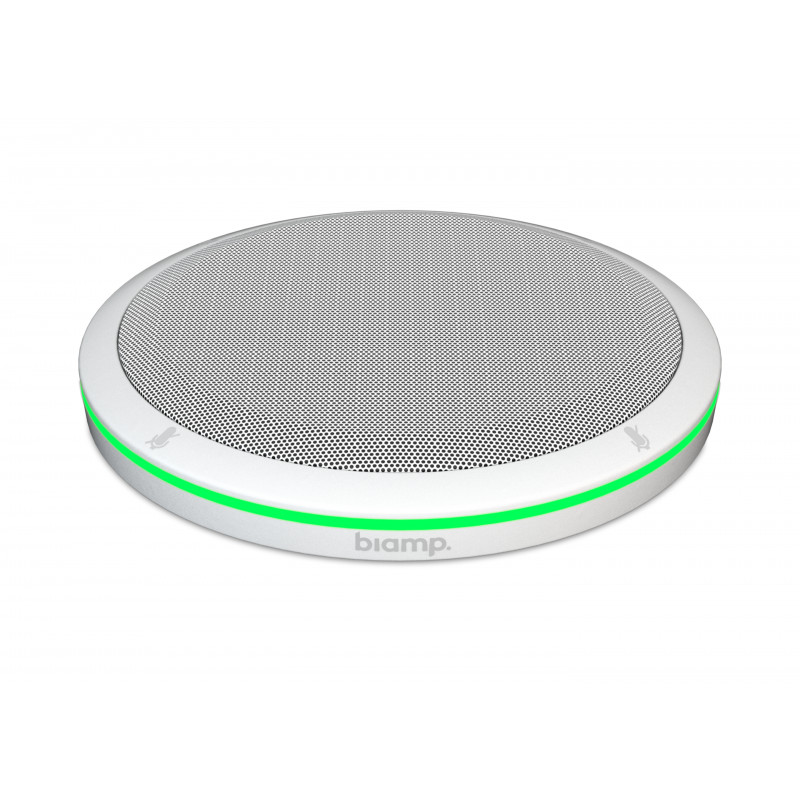

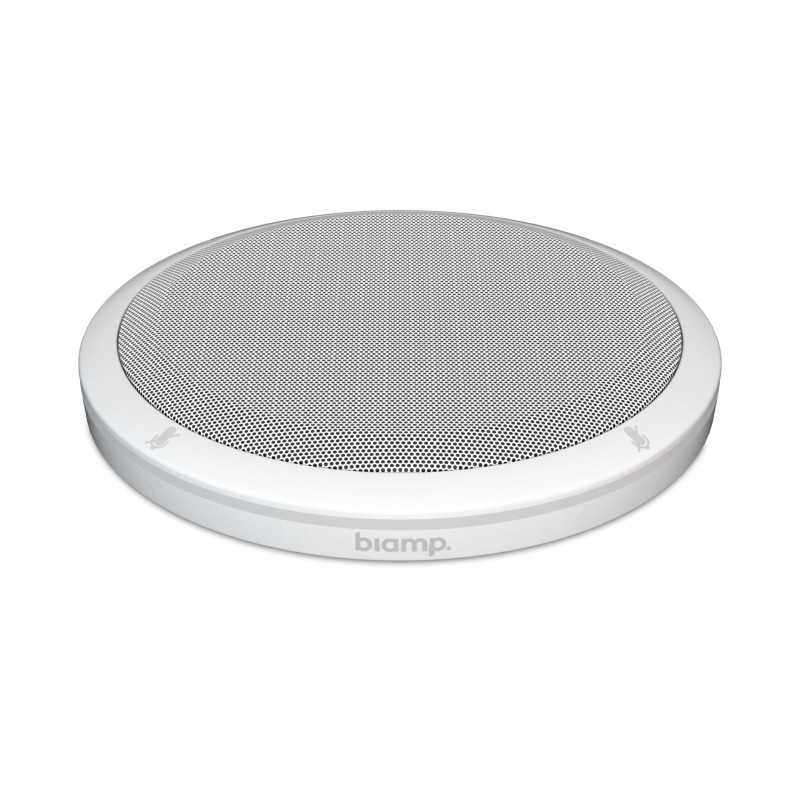

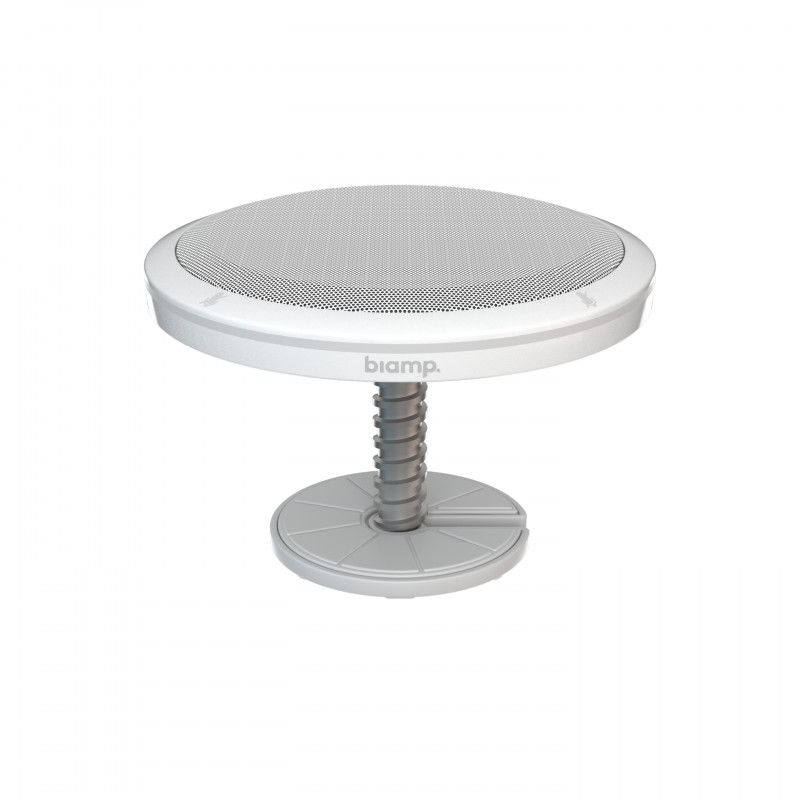

• Microphone Connectivity: 2 x RJ-45 for Biamp Devio Beamforming Microphones
• Host PC Connection: 1 x USB 3.0 Type-B
• Peripheral USB Ports: 2 x USB 2.0 Type-A
• Video Input: 1 x HDMI 1.4 (up to 4K UHD @ 30Hz)
• Video Output: 1 x HDMI 1.4 (pass-through, up to 4K UHD @ 30Hz)
• Network Interface: 1 x RJ-45 Gigabit Ethernet
• Analog Audio Output: 1 x RCA Stereo Line Out
• Power Supply: Power over Ethernet Plus (PoE+, IEEE 802.3at Type 2, Class 4)
• Mounting Options: Under-table, VESA (with optional mounting kit)
• Control Interface: Network (Web UI, Biamp SageVue)
• USB Audio Channels: 2x2 (Stereo In/Out)
• USB Video Support: UVC (USB Video Class) compliant
• USB Audio Support: UAC (USB Audio Class) compliant
• Color: White
• Operating Temperature: 0°C to 40°C (32°F to 104°F)
• Compliance: CE, FCC, UL, RoHS
• Form Factor: Compact, Huddle Room Solution
• Software Compatibility: Biamp SageVue

Recommendations

For optimal performance, pair the SCR-25TX with Biamp Devio beamforming microphones and a compatible USB camera. Use a PoE+ switch to power the hub and ensure network connectivity. The optional mounting kit allows for flexible installation under tables or on VESA-compatible displays.
