BIRA HARTTE MG280SR-BK serratura elettromagnetica per porta 280kg nera con monitoraggio e segnalazione

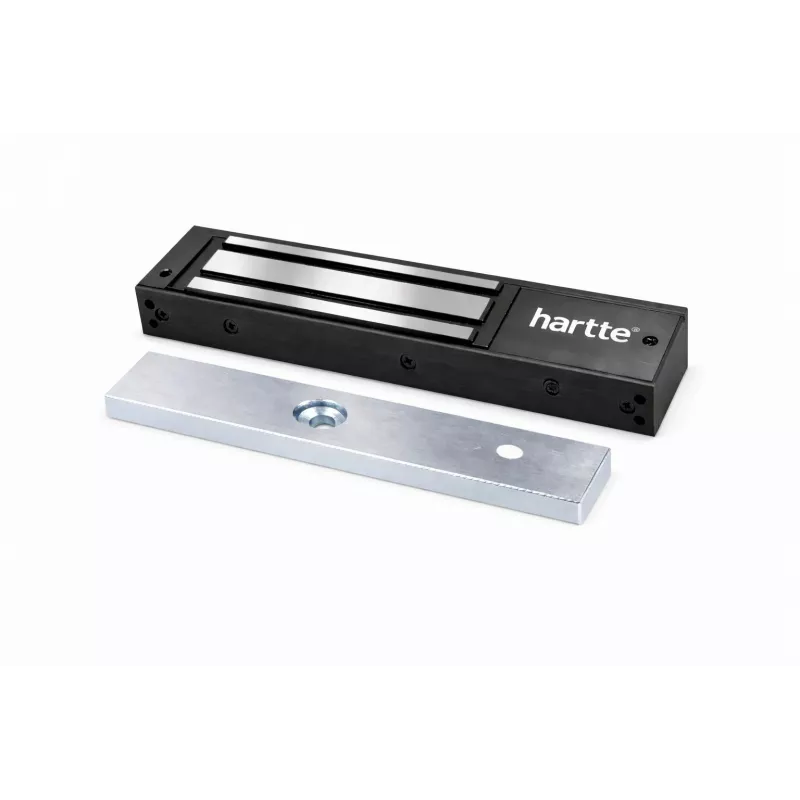

The BIRA HARTTE MG280SR-BK is a high-performance electromagnetic lock designed for secure access control. With a holding force of 280 kg (600 lbs), it provides reliable locking for various door types including wooden, glass, metal, and fireproof doors. The lock features built-in monitoring and signaling capabilities, making it ideal for integration with access control systems.

Advantages

Robust 280 kg holding force ensures secure closure. Integrated monitoring output (NC/NO dry contact) allows real-time door status detection. LED status indicator provides visual confirmation of lock state. Surface mount design simplifies installation. Compatible with 12V or 24V power supply for flexible system integration.

Suitable for

• Access control systems for offices, commercial buildings, and residential complexes
• Security doors requiring remote monitoring and signaling
• Integration with fire alarm and building management systems

Key specifications

• Holding Force: 280 kg (600 lbs)
• Power Supply: DC 12V / 24V
• Current Consumption: 500 mA (12V) / 250 mA (24V)
• Monitoring Output: NC/NO Dry Contact
• Status Indicator: LED
• Lock Body Dimensions: 250 x 47 x 25 mm
• Armature Plate Dimensions: 180 x 38 x 11 mm
• Housing Material: Anodized Aluminum
• Armature Plate Material: Zinc Alloy
• Mounting Type: Surface Mount
• Operating Temperature: -10°C to +55°C
• Operating Humidity: 0-95% (non-condensing)
• Color: Black

Recommendations

For optimal performance, ensure the power supply matches the selected voltage (12V or 24V). The lock is suitable for indoor use and should be installed by a qualified technician. Pair with compatible access control controllers for full monitoring functionality.
