BKL Electronic 075159 Cavo di collegamento a bassa tensione DC 5,5 x 2,1 mm a estremità aperta 30 cm

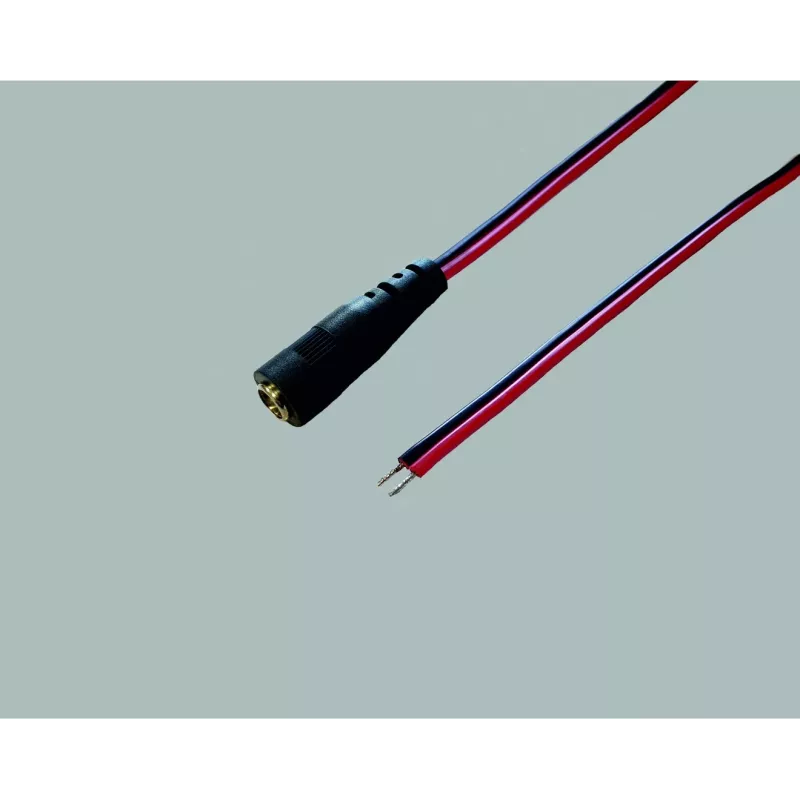

Low-voltage connection cable with a DC plug (5.5 mm outer, 2.1 mm inner diameter) on one end and stripped, tinned open ends on the other. The 30 cm length and 0.5 mm² conductors support up to 3 A at 30 V DC, making it a practical choice for power supply connections, DIY projects, and repairs.

Advantages

Ready-to-solder open ends allow flexible wiring. Black PVC insulation provides basic protection. Compact length suits tight installations.

Suitable for

• Powering small DC devices with 5.5 x 2.1 mm jacks
• Custom cable assemblies and repairs
• Prototyping and electronics projects

Key specifications

• Connector 1: DC plug 5.5 x 2.1 mm
• Connector 2: Open end (stripped and tinned)
• Cable length: 30 cm
• Conductor cross-section: 0.5 mm²
• Max. voltage: 30 V DC
• Max. current: 3 A
• Insulation: PVC
• Colour: Black

Recommendations

Verify polarity and current draw before use. For higher currents, select a cable with larger conductors.
