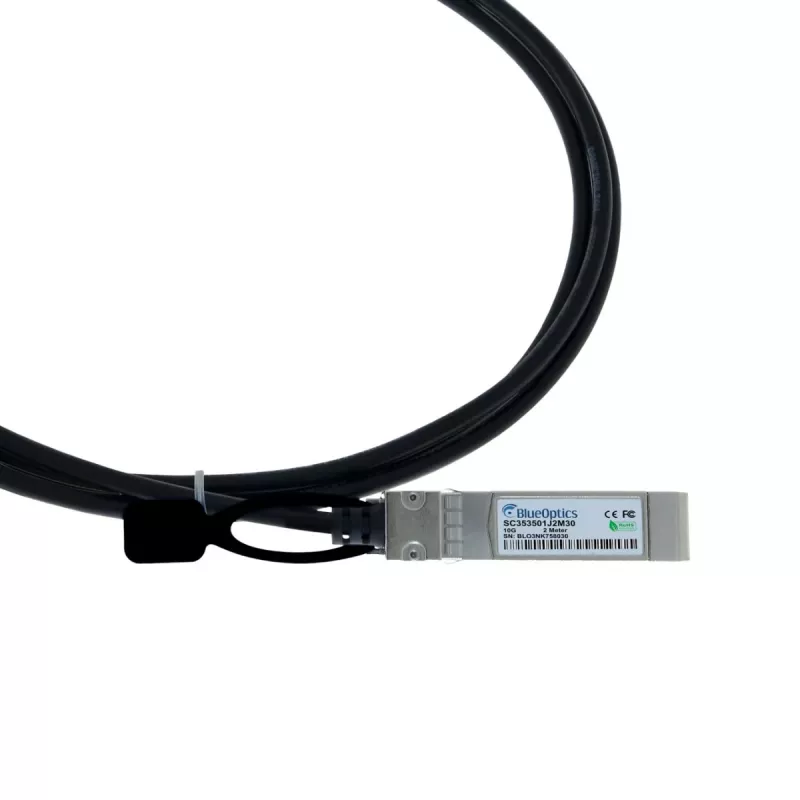

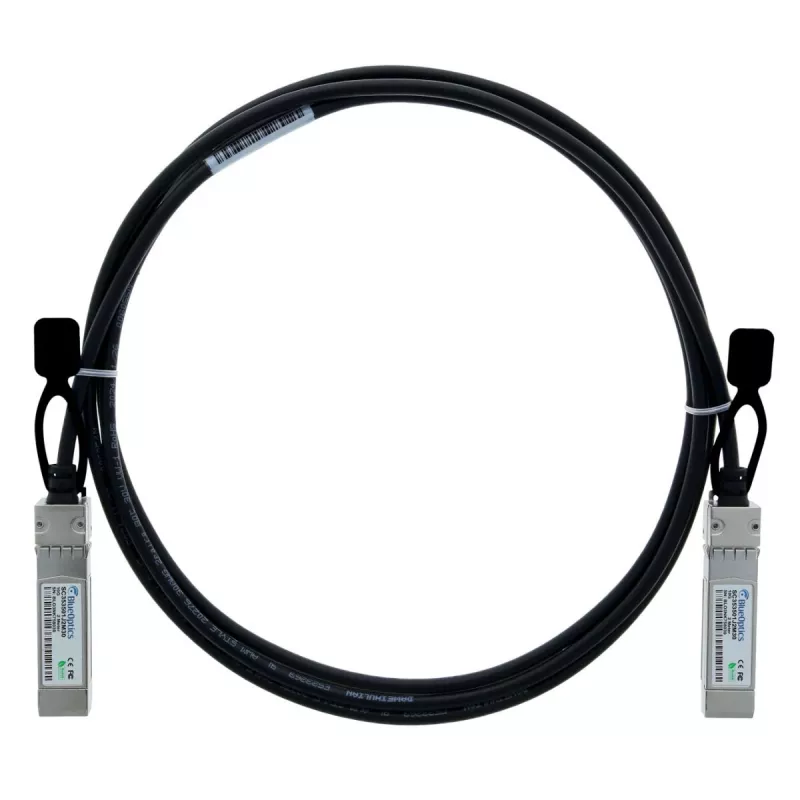

BlueLAN 747522301-BL cavo direct attach passivo 10GBASE-CR SFP+ a SFP+, 3m, AWG30

Direct attach cable with SFP+ connectors on both ends, delivering 10 Gbps over twinax copper for short-reach data center links. The passive design consumes under 0.1W, making it an efficient choice for high-density rack-to-rack and server-to-switch interconnects.

Advantages

Passive twinax construction eliminates optical transceivers, reducing cost and latency while maintaining signal integrity over 3 meters. AWG30 wire gauge balances flexibility with performance, and the 100 Ohm impedance ensures reliable 10GBASE-CR Ethernet operation. Hot-swappable connectors simplify installation and maintenance.

Suitable for

• Data center top-of-rack to end-of-row connections
• Server to access switch uplinks
• Storage and compute clusters requiring low-latency 10G links

Key specifications

• Length: 3 m (9.84 ft)
• Data rate: 10 Gbps
• Connectors: SFP+ to SFP+
• Cable type: Twinax copper, passive
• Wire gauge: AWG30
• Impedance: 100 Ohm
• Operating temperature: 0°C to 70°C
• Voltage supply: 3.3V

Recommendations

Verify switch and NIC compatibility with passive DACs before deployment. For distances beyond 3 meters, consider active optical cables or fiber transceivers.
