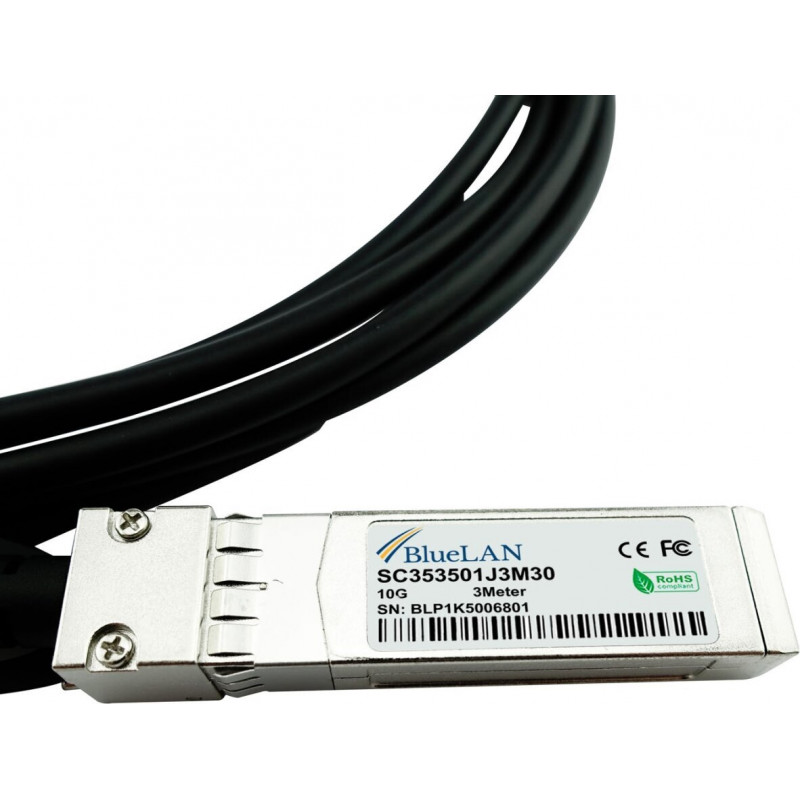

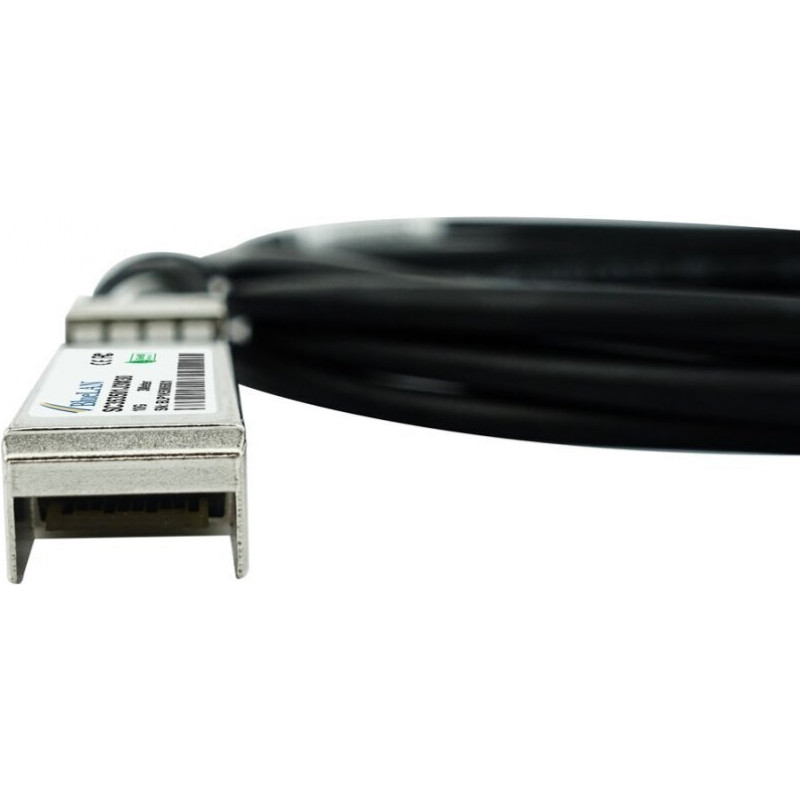

BLUELAN BlueOptics 10GBASE-CR SFP+ cavo in rame Direct Attach 1m Industrial SC353501J1M30IN

With a data rate of 10 Gbps over twinax copper, this BLUELAN BlueOptics direct attach cable delivers high-speed connectivity for data centers, server-to-switch links, and storage area networks. The industrial-grade jacket and wide operating temperature range from -40°C to 85°C ensure reliable performance in demanding environments.

Overview

The BLUELAN BlueOptics SC353501J1M30IN is a passive SFP+ to SFP+ direct attach copper (DAC) cable, one meter in length. It complies with the 10GBASE-CR Ethernet standard and MSA specifications, making it compatible with any SFP+ port that supports 10GBASE-CR. The 30 AWG twinax construction provides a robust and cost-effective solution for short-reach interconnects.

What stands out

• Industrial-grade design with extended temperature range (-40°C to 85°C)
• Low power consumption of less than 0.5 W, reducing energy costs
• Hot-pluggable SFP+ connectors for easy installation and maintenance
• RoHS, CE, and FCC certified for quality and safety
• Passive cable design—no additional power or signal conditioning required

Technical details

• Cable type: Direct Attach Copper (DAC) twinax
• Data rate: 10 Gbps
• Ethernet standard: 10GBASE-CR
• Connectors: SFP+ to SFP+
• Length: 1 meter
• Wire gauge: 30 AWG
• Impedance: 100 Ohm
• Supply voltage: 3.3 V
• Operating temperature: -40°C to 85°C
• Storage temperature: -40°C to 100°C
• Certifications: RoHS, CE, FCC

Our verdict

For industrial or data center environments requiring reliable 10G copper links, this BLUELAN cable offers an excellent balance of performance, durability, and value. Its wide temperature tolerance and low power draw make it a dependable choice for high-density deployments.
