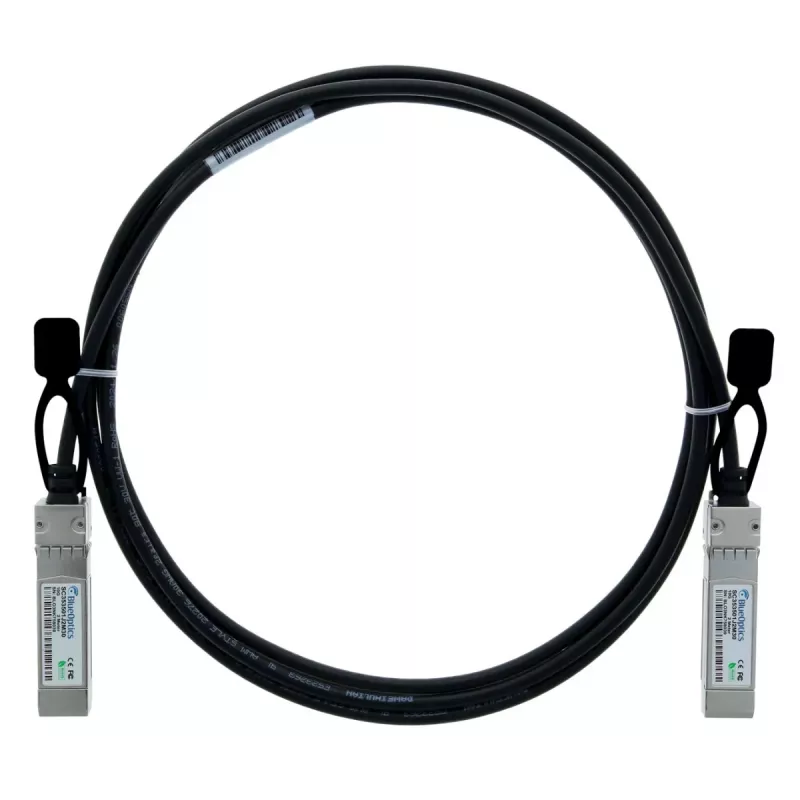

BlueLAN cavo direct attach passivo 10GBASE-CR SFP+ a SFP+, 1m, AWG30 (747521101-BL)

Passive Direct Attach Copper (DAC) cable for 10 Gigabit Ethernet, providing a reliable 1-meter link between SFP+ ports. This cable is compatible with Molex 747521101 and supports 10GBASE-CR, delivering low-latency, low-power connectivity for data centers and high-performance computing.

Advantages

Passive design consumes less than 0.1W, reducing power and cooling costs. The AWG30 twinax construction ensures signal integrity over short distances, while hot-swappable SFP+ connectors allow for flexible network reconfiguration without downtime.

Suitable for

• Server-to-switch connections in data centers
• Storage area networks (SAN) requiring 10GbE
• Fibre Channel and InfiniBand applications

Key specifications

• Data rate: 10 Gbps
• Connector type: SFP+ to SFP+
• Cable length: 1 meter
• Cable gauge: AWG30
• Impedance: 100 Ohm
• Operating temperature: 0°C to 70°C

Recommendations

Ideal for short-reach, high-density 10G interconnects where low latency and minimal power draw are critical. Pair with compatible SFP+ switches and network interface cards for seamless integration.
