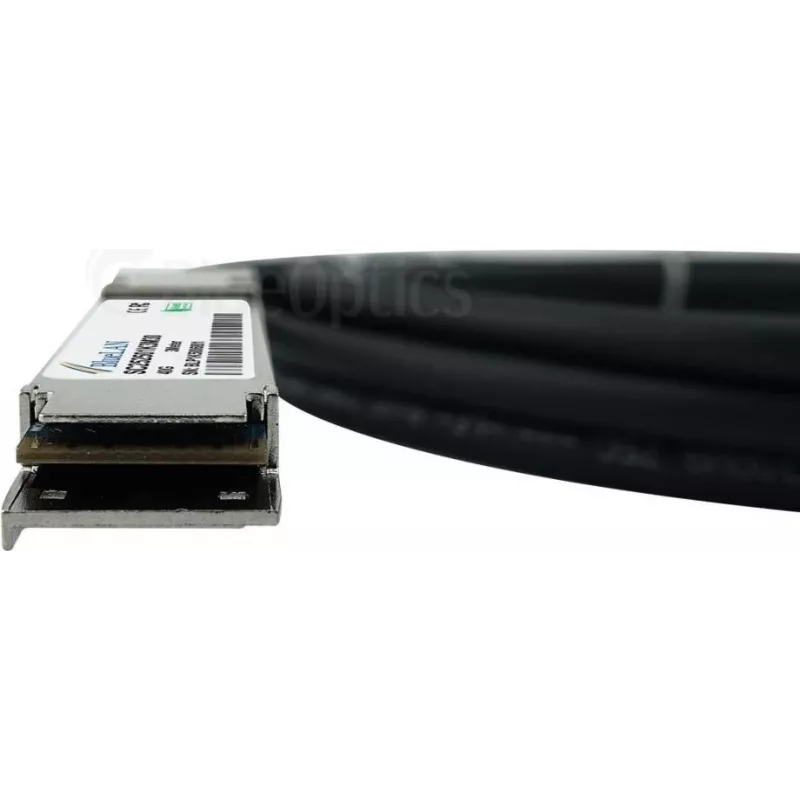

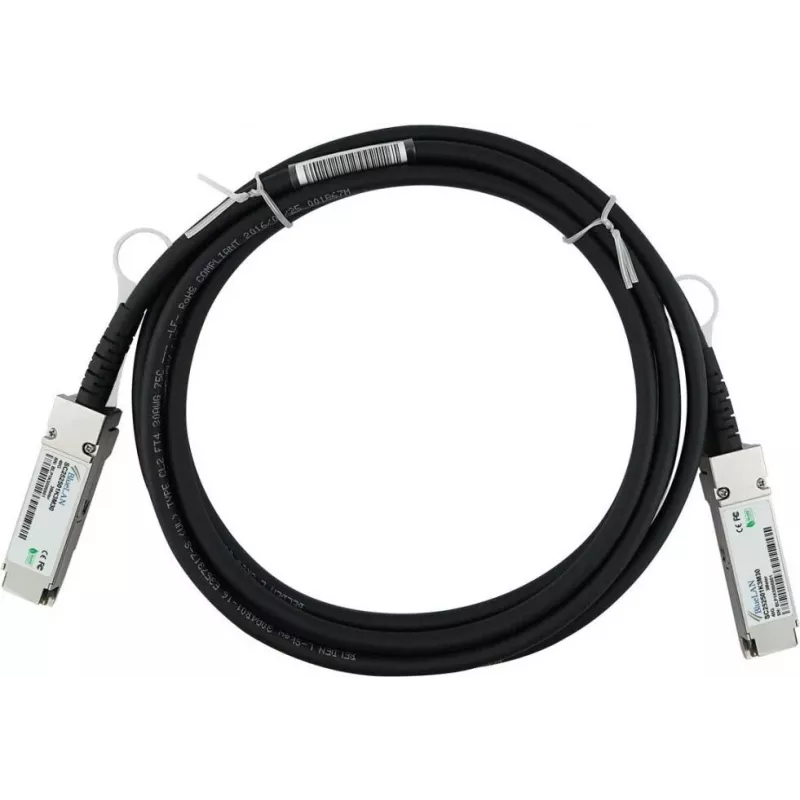

BlueLAN Cavo in rame Direct Attach Dell QSFP+ compatibile 470-AAGI-BL, 40GBASE-CR4, 30 m, attivo, Twinax, Ethernet/InfiniBand QDR

This BlueLAN 470-AAGI-BL is a 30-meter active QSFP+ direct attach copper cable engineered for 40GBASE-CR4 Ethernet and InfiniBand QDR links. Unlike shorter passive DACs that rely on host equalization, its active signal conditioning sustains full 40 Gbps over the full 30 m reach—ideal for top-of-rack to end-of-row connections in dense data centers.

Highlights

• 40 Gbps aggregate bandwidth over four 10 Gbps lanes
• QSFP+ to QSFP+ connectors, hot-swappable
• Active twinax construction with integrated signal amplification
• Compatible with Dell 470-AAGI and equivalent QSFP+ ports
• Supports 40GBASE-CR4 Ethernet and InfiniBand QDR protocols

In daily use

The cable's 30-meter length bridges aggregation switches and access rows without the cost or power draw of optical transceivers. Its PVC jacket and 100-ohm impedance maintain signal integrity across the operating range of 0°C to 70°C, while power consumption stays below 1.5 W. The hot-swappable QSFP+ ends simplify moves and changes in high-density racks.

Full specifications

• Cable type: Direct Attach Copper (DAC)
• Data rate: 40 Gbps
• Standard: 40GBASE-CR4
• Length: 30 m
• Connector A: QSFP+
• Connector B: QSFP+
• Protocol support: Ethernet, InfiniBand QDR
• Construction: Twinax copper
• Active/passive: Active
• Hot swappable: Yes
• Operating temperature: 0°C to 70°C
• Storage temperature: -40°C to 85°C
• Power consumption: < 1.5 W
• Jacket material: PVC
• Impedance: 100 Ohm
• Voltage supply: 3.3 V

Final note

BlueLAN's compatible DAC delivers the reach and reliability needed for 40G Ethernet and HPC fabrics, without vendor lock-in.
