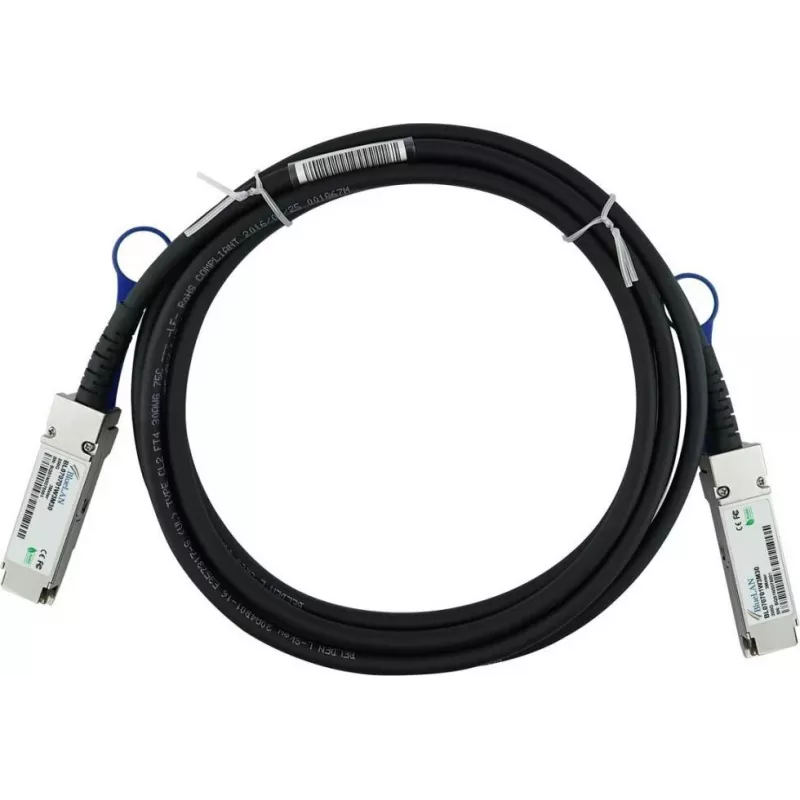

BLUELAN compatibile NVIDIA 980-9I65U-00J00A cavo Direct Attach QSFP56, 200GBASE-CR4, Ethernet, 30AWG, 2 metri

The BLUELAN 980-9I65U-00J00A-BL is a high-performance, cost-effective compatible direct attach cable (DAC) designed for NVIDIA networking equipment. It provides a reliable, low-latency connection for data center and high-performance computing environments, supporting 200 Gbps data rates over a 2-meter length.

Advantages

This passive copper DAC offers a plug-and-play solution with no power consumption, ensuring energy efficiency and minimal heat generation. Its QSFP56 form factor enables high-density deployments, and the 30 AWG construction ensures flexibility for easy cable management.

Suitable for

• Data center interconnects
• High-performance computing (HPC) clusters
• Ethernet networks requiring 200GBASE-CR4
• NVIDIA switch and adapter card connectivity

Key specifications

• Cable Type: Direct Attach Cable (DAC), Passive
• Connector Type: QSFP56 to QSFP56
• Data Rate: 200 Gbps
• Ethernet Standard: 200GBASE-CR4
• Cable Length: 2 Meter
• Wire Gauge: 30 AWG
• Cable Material: Copper
• Compatibility: NVIDIA 980-9I65U-00J00A (OEM Part Number)
• Hot-Pluggable: Yes
• Number of Lanes: 4
• Protocol: Ethernet
• Compliance: RoHS Compliant

Recommendations

For optimal performance, ensure your network equipment supports QSFP56 and 200GBASE-CR4. This cable is ideal for short-reach, high-speed connections within racks or between adjacent racks.
