BlueLAN SC282801L0.5M30 cavo Direct Attach compatibile, 100Gb/s, Infiniband EDR, 30AWG, 0,5 metri (980-9I620-00E00A-BL)

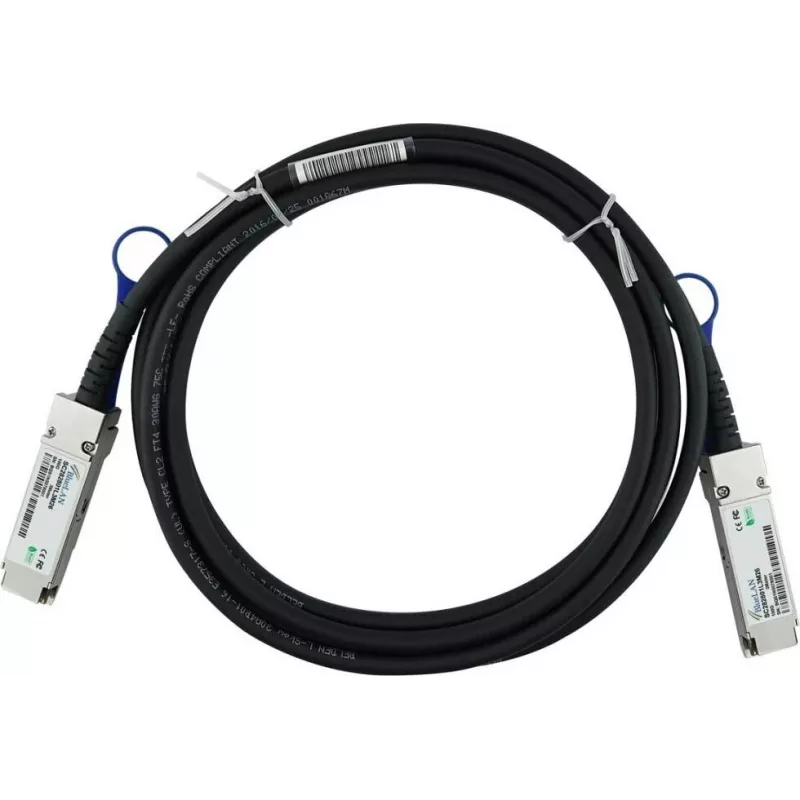

The BlueLAN SC282801L0.5M30 is a high-performance Direct Attach Cable (DAC) designed for demanding data center and high-performance computing environments. This passive twinax copper cable delivers 100 Gbps data rates over Infiniband EDR technology, ensuring reliable, low-latency connectivity for your network infrastructure. Compatible with NVIDIA 980-9I620-00E00A interfaces, it features QSFP28 connectors on both ends and a 0.5 meter length, making it ideal for short-range interconnects within racks.

Advantages

This cable offers a cost-effective and energy-efficient solution for high-speed data transmission. With a power consumption of less than 0.5 W, it reduces overall system power draw while maintaining exceptional signal integrity. The 30 AWG wire gauge ensures flexibility and ease of installation in tight spaces, and the passive design requires no external power or signal conditioning.

Suitable for

• Data center interconnects between switches, servers, and storage
• High-performance computing (HPC) clusters
• Networking applications requiring 100 Gbps Infiniband EDR connectivity

Key specifications

• Product Type: Direct Attach Cable (DAC)
• Data Rate: 100 Gbps
• Technology Standard: Infiniband EDR
• Cable Length: 0.5 Meter
• Wire Gauge: 30 AWG
• Cable Type: Twinax Copper
• Connector Type: QSFP28 (both ends)
• Cable Configuration: Passive
• Compatibility: NVIDIA 980-9I620-00E00A
• Electrical Interface: 4x 25Gbps NRZ
• Impedance: 100 Ohm
• Hot Swappable: Yes
• Operating Temperature: 0°C to 70°C
• Power Consumption: < 0.5 W

Recommendations

For optimal performance, ensure that both connected devices support QSFP28 and Infiniband EDR standards. This cable is a direct replacement for NVIDIA 980-9I620-00E00A and is fully compatible with BlueLAN networking equipment.
