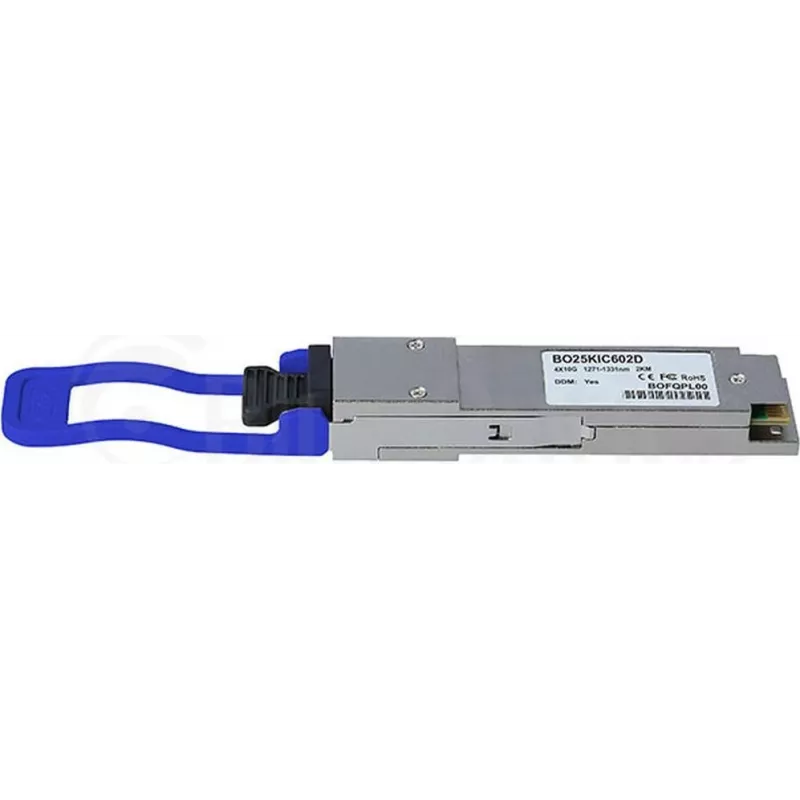

BlueOptics P95PT-BO ricetrasmettitore QSFP compatibile Dell Networking P95PT, LC-Duplex, 40GBASE-LX4, OM4 160 m, SMF 2 km, 4xWDM, DDM

The BlueOptics P95PT-BO stands out by pairing a QSFP form factor with dual-reach flexibility: it drives 40 Gigabit Ethernet over both multimode OM4 fibre up to 160 metres and single-mode fibre up to 2 kilometres. This dual capability makes it a versatile choice for mixed-fibre data centre and enterprise networks, eliminating the need for separate transceiver types for short and long links.

Highlights

• 40GBASE-LX4 standard with 4-channel WDM for efficient bandwidth utilisation
• LC-Duplex connector for straightforward fibre termination
• Digital Diagnostic Monitoring (DDM) for real-time performance tracking
• Hot-pluggable QSFP design for minimal downtime during installation or replacement
• Operating temperature range 0°C to +70°C for reliable operation in typical data centre environments

In daily use

Deploy the P95PT-BO in Dell Networking environments where a single transceiver must cover both short multimode runs and longer single-mode spans. Its DDM support allows network administrators to monitor optical power, temperature, and other parameters, aiding proactive maintenance. The 3.3V power supply and IEEE 802.3ba compliance ensure compatibility with standard 40G Ethernet infrastructure.

Full specifications

• Transceiver type: QSFP
• Data rate: 40 Gbps
• Ethernet standard: 40GBASE-LX4
• Connector: LC-Duplex
• Multimode fibre: OM4, max reach 160 m
• Single-mode fibre: SMF, max reach 2 km
• Wavelength division multiplexing: 4xWDM
• Operating temperature: 0°C to +70°C
• Digital Diagnostic Monitoring (DDM): Yes
• Hot-pluggable: Yes
• Power supply voltage: 3.3V
• Compliance: IEEE 802.3ba
• Application: Data Centre Interconnect, Enterprise Networking

Final note

For networks that demand both multimode and single-mode reach from a single QSFP slot, the BlueOptics P95PT-BO delivers a practical, monitored solution.
