BOPLA Bobuce kit di supporto per montaggio a parete, policarbonato, grigio grafite RAL 7024, 4 pezzi 96510004

For installers and panel builders working with BOPLA Bobuce enclosures, this wall mounting bracket set provides a secure external mounting solution. The set includes four brackets and matching screws, allowing the enclosure to be fixed to a wall while maintaining its protection rating.

Key specifications

• Material: Polycarbonate (PC)
• Colour: Graphite Grey (RAL 7024)
• Number of brackets: 4
• Mounting type: External wall mount
• Flammability rating: UL 94 V-2
• Operating temperature range: -40 to +80 °C
• UV resistance: Yes
• Impact resistance: High

Why choose it

The brackets are made from polycarbonate, offering high impact resistance and good chemical resistance against many oils, greases, acids, and alkalis. They are UV resistant, making them suitable for outdoor applications. The graphite grey colour matches the enclosure for a consistent appearance.

Ideal use cases

• Industrial enclosures
• Electrical installations
• Wall-mounting of Bobuce enclosures in control cabinets or machinery

Good to know

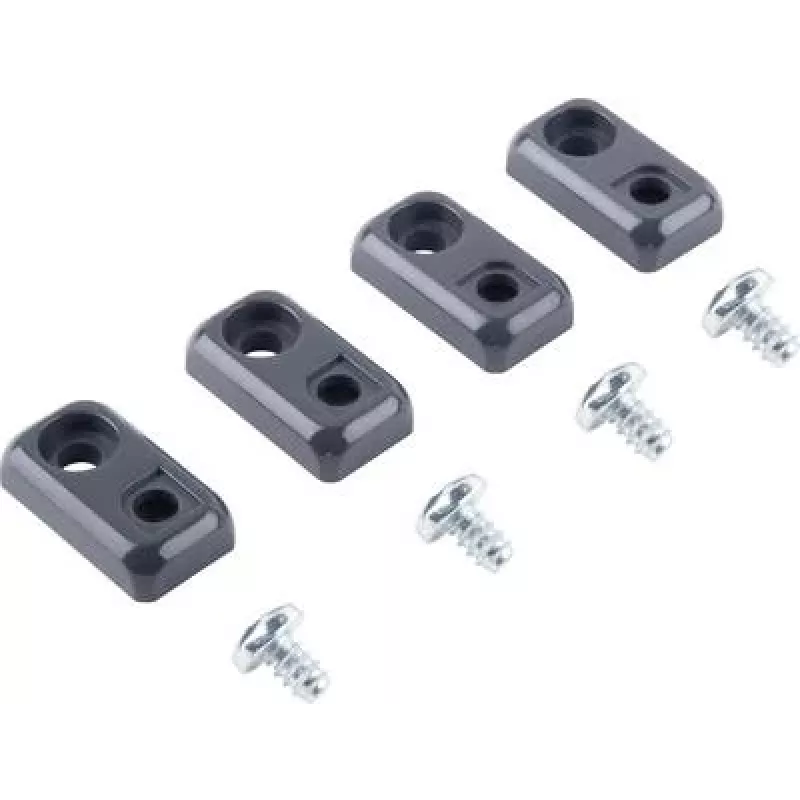

The brackets are installed by screwing them onto the enclosure and the wall. They maintain the enclosure's IP rating when properly mounted. The set includes four brackets and four screws.
