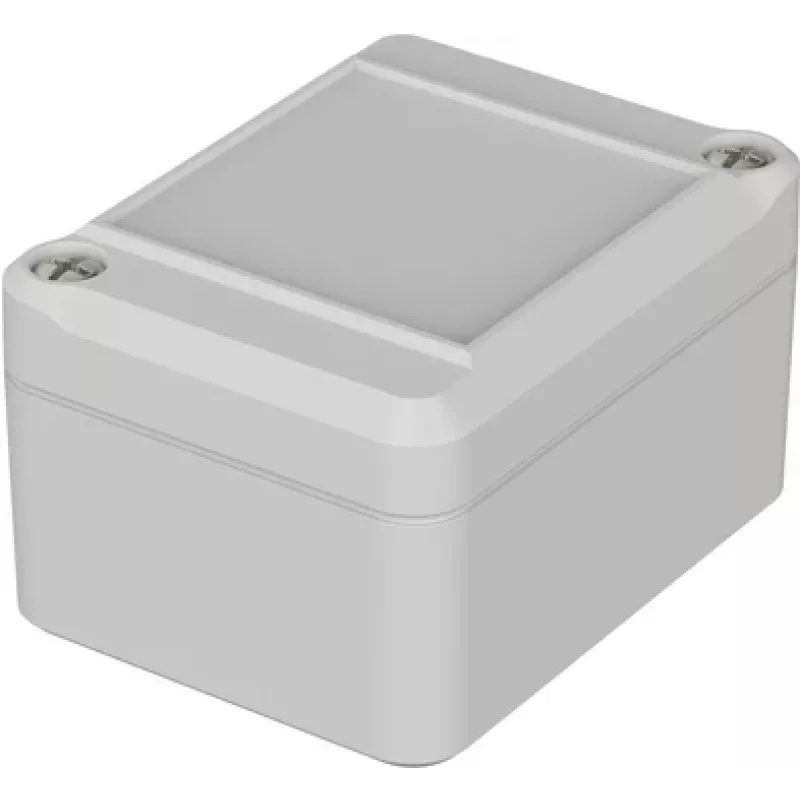

Bopla EUROMAS ET 206F Custodia universale 65 x 50 x 37 mm, ABS, grigio chiaro 63206200

When electronics need protection from dust, moisture, and mechanical impact, a robust housing is essential. The Bopla EUROMAS ET 206F universal enclosure provides a secure environment for your components in a compact form factor.

Who is it for

This enclosure is ideal for electronics designers, system integrators, and maintenance technicians who require a reliable, IP65-rated housing for small devices, sensors, or control modules.

Main features

• External dimensions: 65 mm length, 50 mm width, 37 mm height
• Material: ABS (Acrylonitrile Butadiene Styrene), light grey (RAL 7035)
• Protection class: IP65 (dust-tight and protected against water jets)
• Impact resistance: IK07
• Flammability rating: UL 94 V-0
• Operating temperature range: -40 to +80 °C
• Lid fastening: captive stainless steel screws
• Gasket material: PUR (polyurethane)
• Internal mounting bosses for PCBs and components
• Wall mounting channels
• Solid lid

Specifications

• Product type: Universal enclosure
• Series: EUROMAS ET
• Material: ABS
• Colour: Light grey (RAL 7035)
• External dimensions: 65 x 50 x 37 mm
• Protection class: IP65
• Impact resistance: IK07
• Flammability rating: UL 94 V-0
• Operating temperature: -40 to +80 °C
• Lid fastening: stainless steel screws (captive)
• Gasket: PUR
• Mounting: internal bosses and wall channels
• RoHS compliant: Yes
• Halogen free: Yes

Tips

For best sealing, ensure the lid gasket is clean and undamaged before closing. Mount the enclosure on a flat surface using the wall channels to maintain IP65 integrity.
