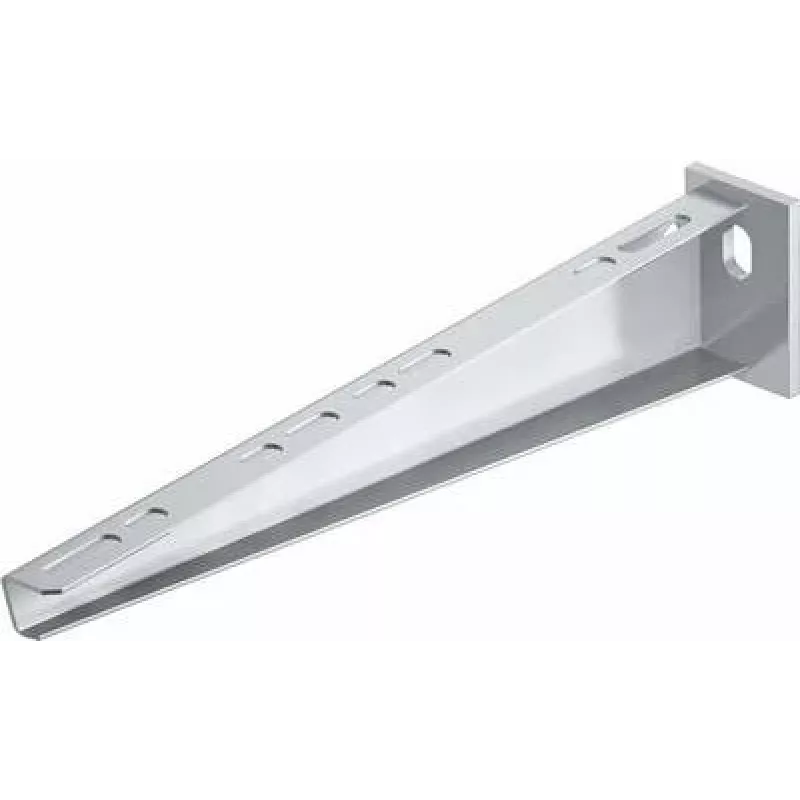

Braccio a parete e palo OBO Bettermann AW 15 11 VA4301 B110mm 6421008

Supporting cable trays and ladders on walls or poles often requires a bracket that can withstand harsh environments without compromising on strength or durability. The OBO Bettermann AW 15 11 VA4301 B110mm cantilever bracket solves this by offering a robust stainless steel solution that resists corrosion while providing a reliable 110 mm projection for your cable management needs.

Who is it for

This bracket is ideal for electricians, panel builders, and facility managers who need to mount cable trays in industrial, outdoor, or corrosive environments. It suits installations where stainless steel is required for longevity, such as in food processing plants, chemical facilities, coastal areas, or any project demanding AISI 304 grade material.

Main features

• Manufactured from stainless steel 1.4301 (AISI 304) for excellent corrosion resistance.
• Projection length of 110 mm, providing ample support for cable trays with a usable length of 100 mm.
• Bracket height of 150 mm and profile width of 40 mm ensure stable mounting.
• Compatible with cable trays having a side height of 15 mm.
• Versatile mounting options: suitable for both wall and pole installations.
• Natural stainless steel finish requires no additional coating, maintaining a clean, professional look.

Specifications

• Brand: OBO Bettermann
• Model: AW 15 11 VA4301 B110mm
• MPN: 6421008
• EAN: 4012196207558
• Product type: Wall and pole cantilever bracket
• Series: AW 15
• Material: Stainless steel 1.4301 (AISI 304)
• Corrosion protection: VA (stainless steel)
• Projection length: 110 mm
• Usable length: 100 mm
• Bracket height: 150 mm
• Bracket profile width: 40 mm
• Suitable for cable tray side height: 15 mm
• Mounting type: Wall, pole
• Application: Supporting cable trays and ladders
• Finish: Natural stainless steel

Tips

When installing, ensure the bracket is securely fastened to a solid surface using appropriate stainless steel fasteners to maintain corrosion resistance. For pole mounting, use a compatible pole clamp or band. Always verify the cable tray side height matches the 15 mm specification for a proper fit.
