Braccio per monitor Novus 1.1 TSS Folding Arm 3

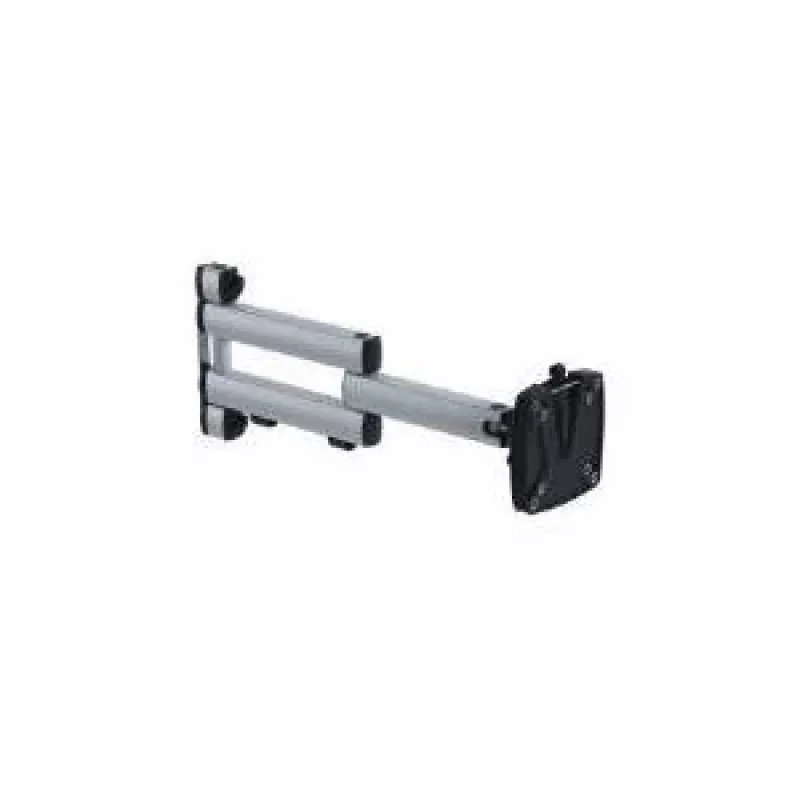

The Novus 1.1 TSS Folding Arm 3 is a desk-mounted support arm designed to position flat-screen monitors with high flexibility. It supports monitors up to 15 kg, uses VESA 75/100 mounting with NOVUS QuickRelease, and is intended for use with the TSS column range. The arm has a reinforced two-part articulated design, includes two cable holders and reaches up to 505 mm.

Advantages

The reinforced two-part articulated arm allows infinite adjustment in any direction and horizontal rotation around the column for optimal viewing angles. The built-in QuickRelease enables quick monitor changes without tools. Integrated cable holders keep cables tidy and secured, while the ball-joint provides precise positioning and tilt control.

Suitable for

• Office workstations with a single flat-screen monitor
• Home offices requiring flexible monitor positioning
• Environments using TSS column-mounted monitor setups

Key specifications

• Brand: NOVUS
• Model: 1.1 TSS Folding Arm 3 (MPN 965+0119+000)
• EAN: 4009729046975
• Load capacity: up to 15 kg
• VESA compatibility: 75 x 75 mm and 100 x 100 mm
• Reach: 505 mm
• Tilt range: -35° to 35°
• Finish: anthracite and silver

How to use

Attach the folding arm to a compatible TSS column following the column's mounting instructions. Mount the monitor to the NOVUS QuickRelease plate using the appropriate VESA holes (75 x 75 mm or 100 x 100 mm). Secure cables in the integrated cable holders. Adjust the arm, ball-joint and tilt to achieve the desired viewing position; the mechanism allows smooth, tool-free monitor swaps via the QuickRelease.

Recommendations

Use only monitors that do not exceed the specified maximum weight of 15 kg and ensure the TSS column and attachment are rated for the combined load. Regularly check fastenings and cable management for wear or loosening.
