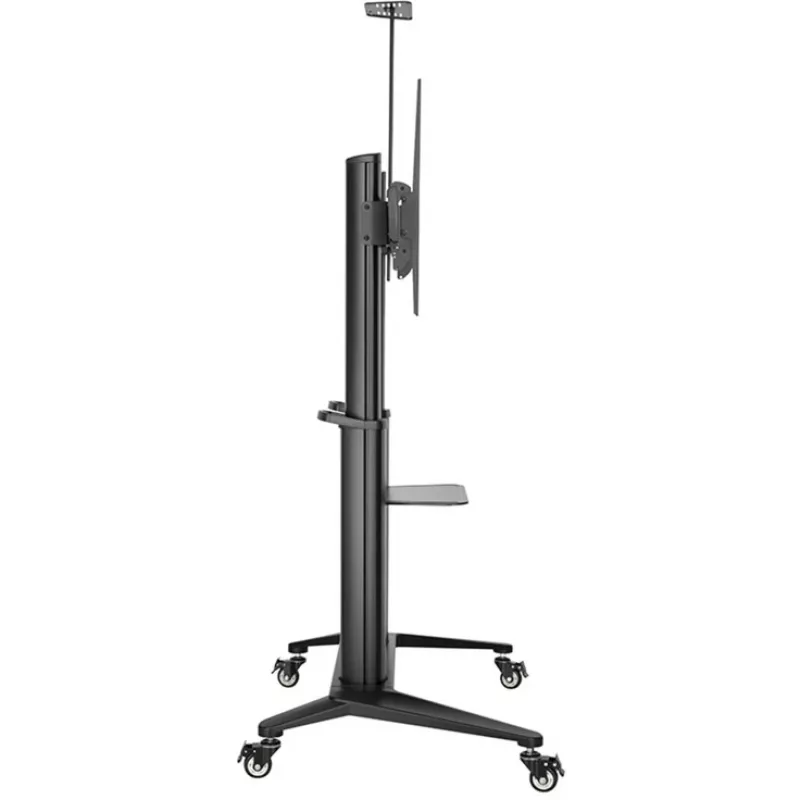

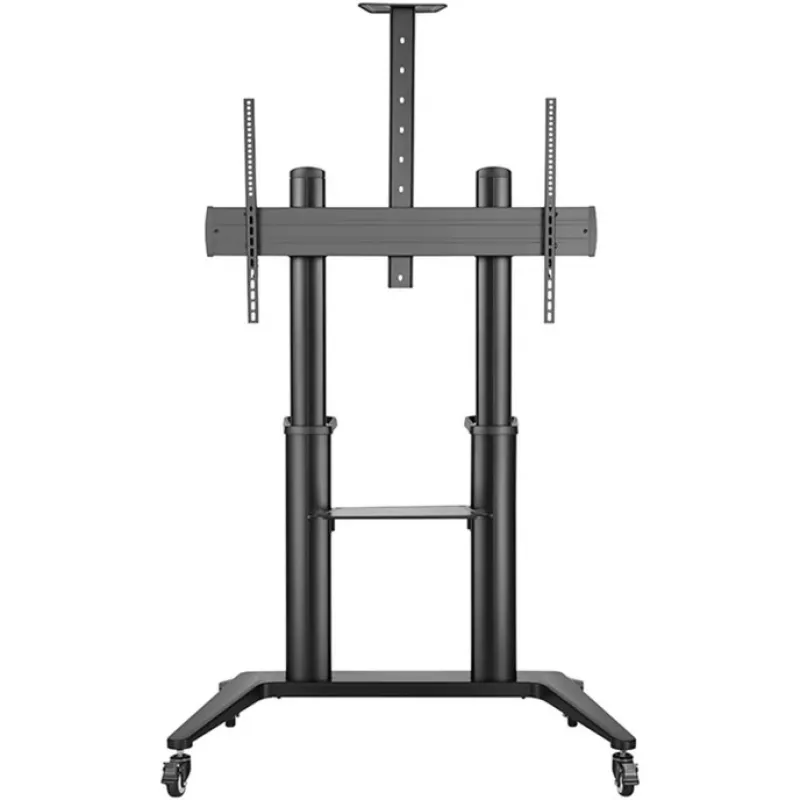

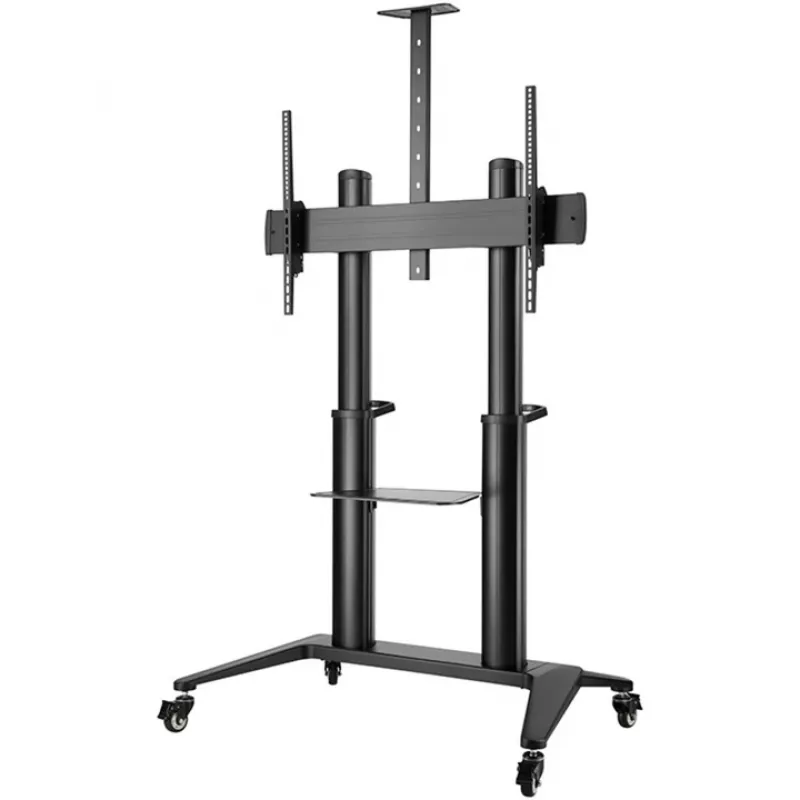

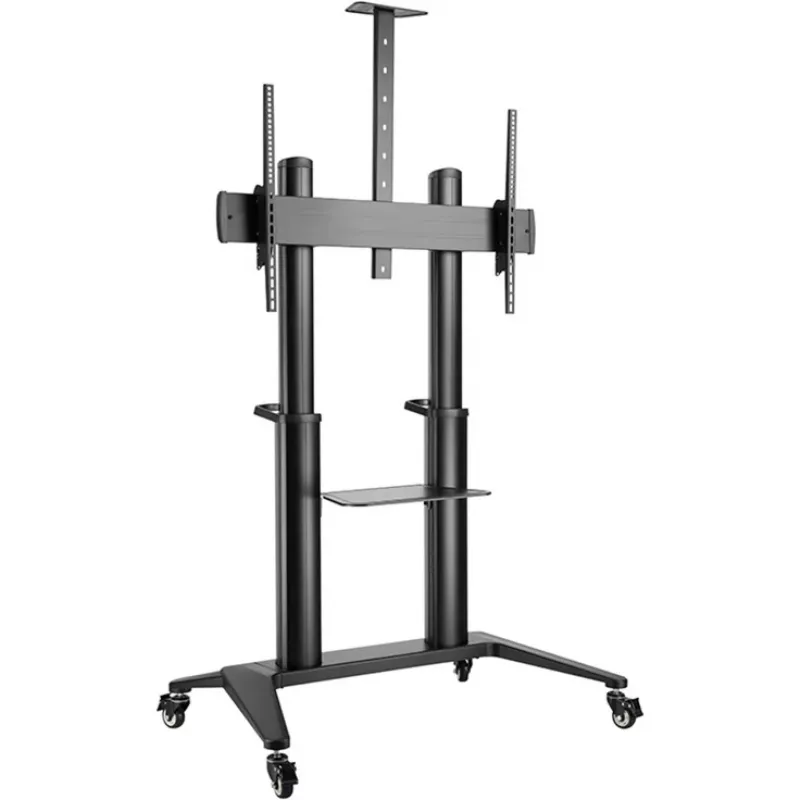

BrackIT Stand HD XXL Hagor 8208

The BrackIT Stand HD XXL is a mobile stand system for a single screen from 65 to 120 inches (165 to 305 cm). It supports landscape and portrait orientations and includes an integrated VESA universal mount covering standards from 200 x 200 mm up to 1000 x 600 mm. The stand features internal cable routing, a rear access cover, a practical shelf for small AV equipment and a height-adjustable camera mount. Surfaces are finished with an impact- and scratch-resistant black powder coating. Maximum load capacity is 140 kg.

Advantages

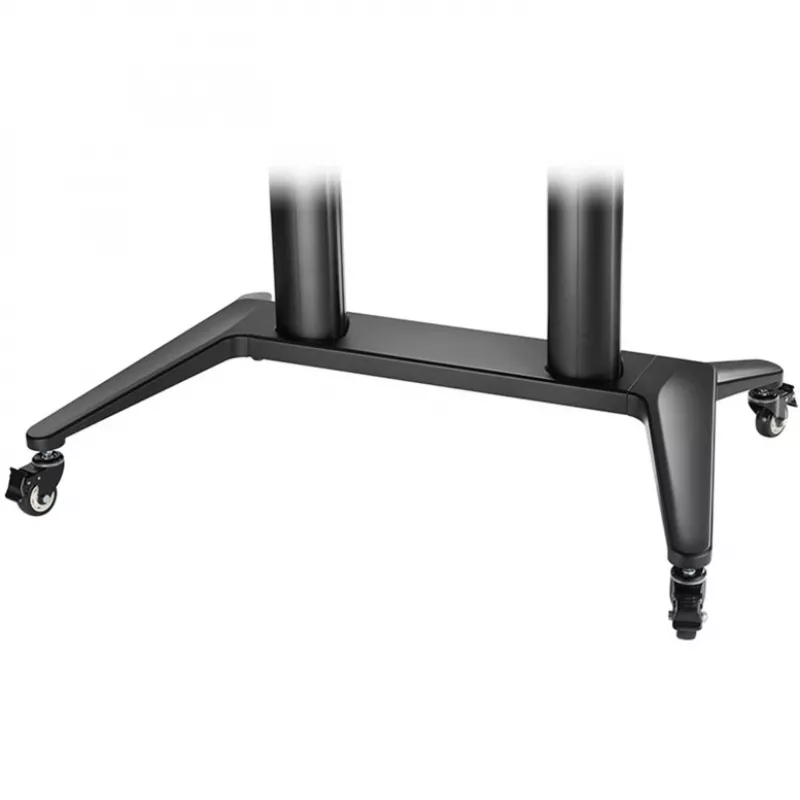

The unit is easy to move on high-quality castors and can be securely fixed in place using a castor brake. An asymmetrical castor base allows positioning close to a wall while keeping a compact footprint (required space 1250 mm width x 760 mm depth). Height adjustment along the column is possible with tools between approximately 1250 mm and 1600 mm (centre of screen), and the screen can be tilted from -5° to +10° without tools. A solid rear handle simplifies relocation.

Suitable for

• Mobile presentations and trade show use
• Classroom and lecture theatres
• Corporate meeting rooms and huddle spaces
• Digital signage and lobby displays

Key specifications

• Screen size supported: 65"–120" (165–305 cm)
• Maximum load capacity: 140 kg
• VESA compatibility: from 200 x 200 mm up to 1000 x 600 mm
• Height adjustment (centre of screen): approx. 1250–1600 mm
• Tilt range: -5° to +10° (tool-free)
• Required floor space: 1250 mm (W) x 760 mm (D)
• Colour and finish: black, impact- and scratch-resistant powder coating

How to use

Mount the display to the included VESA universal bracket according to the screen manufacturer’s VESA pattern within the supported range. Adjust the display height along the column using tools if required, and use the tool-free tilt mechanism to set the viewing angle between -5° and +10°. Move the stand on the castors to the desired location and lock the castor brake to fix it in place. Route cables through the column and access them via the rear cover. Install the optional shelf or camera mount as needed.

Recommendations

Ensure the screen and accessories do not exceed the maximum load of 140 kg. For stability, position the stand with the asymmetrical castor base close to the wall when space is limited, and always engage the castor brake when the stand is in use.
