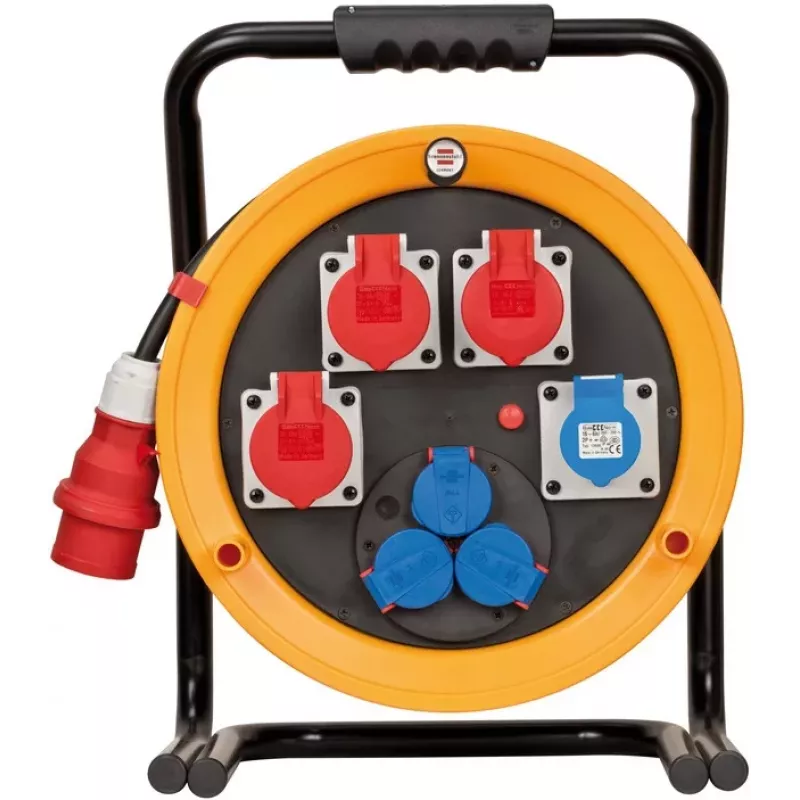

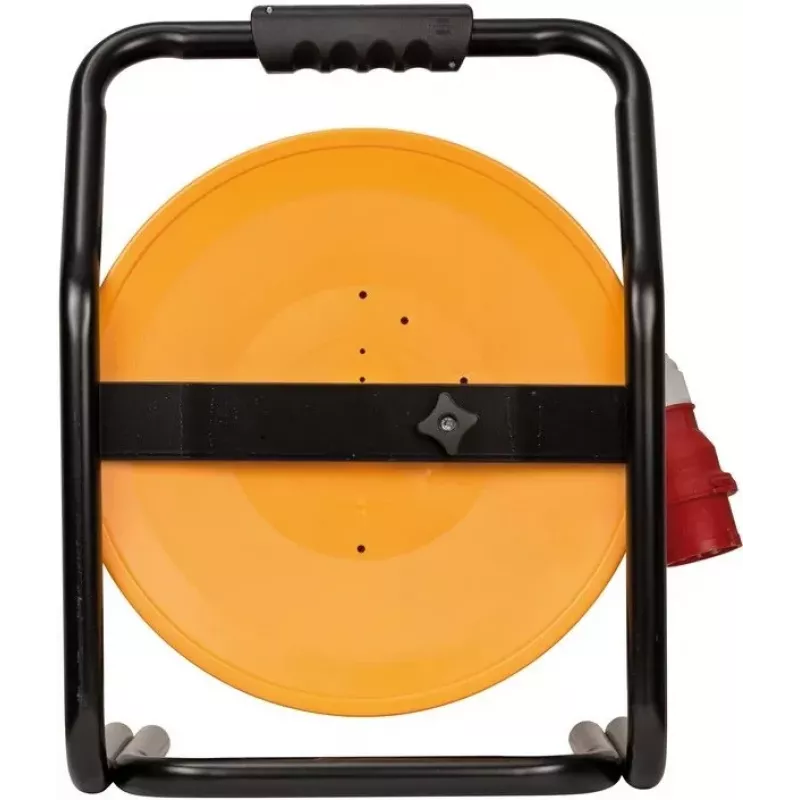

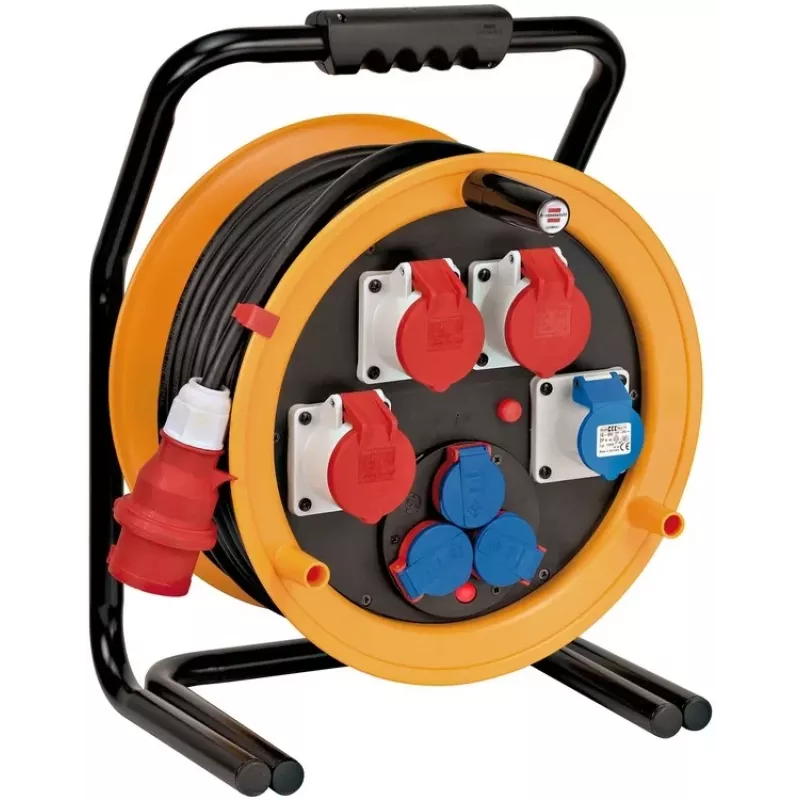

Brennenstuhl 1319110010 avvolgicavo 40m H07RN-F 3G2.5 IP44 4x Schuko nero/arancione

Power distribution on construction sites and outdoor workspaces often means wrestling with flimsy extension leads that crack in the cold, snag on rough ground, or overheat when coiled. The Brennenstuhl 1319110010 cable reel eliminates those headaches with a 40-metre run of heavy-duty H07RN-F rubber cable and a galvanized steel frame that shrugs off daily abuse. Four Schuko sockets let you run multiple tools, while the IP44 rating keeps splashes and dust at bay. When the drum is wound, a thermal cut-out automatically interrupts the circuit to prevent dangerous heat build-up—so you can work safely without constantly unspooling the full length.

Who is it for

This reel is built for professionals who need reliable temporary power in demanding environments: electricians, builders, workshop technicians, event crews, and serious DIYers. It is equally at home on a muddy site, in a dusty warehouse, or at an outdoor market stall where weather protection matters.

Main features

• 40 m H07RN-F 3G2.5 rubber cable: flexible, abrasion-resistant, oil-resistant, and suitable for outdoor use in all seasons.
• IP44 splash protection: guards against water spray from any direction, making it safe for outdoor applications.
• 4 Schuko (Type F) sockets with self-closing lids: keep dirt and moisture out when not in use.
• Thermal cut-out: prevents overheating when the cable is partially wound; automatically resets after cooling.
• Robust construction: special Breflex plastic drum body on a galvanized steel tube frame for long service life.
• Ergonomic carry handle and stable base: easy to transport and position on uneven ground.

Specifications

• Cable length: 40 m
• Cable type: H07RN-F 3G2.5 (rubber neoprene sheath)
• Number of sockets: 4 (Schuko Type F)
• Max power (wound): 1500 W
• Max power (unwound): 3500 W
• Nominal current: 16 A
• Nominal voltage: 230 V
• Ingress protection: IP44
• Thermal cut-out: Yes
• Drum material: Special Breflex plastic
• Frame material: Galvanized steel tube
• Conductor cross-section: 2.5 mm²
• Number of conductors: 3
• Cable sheath material: Rubber neoprene
• Colour: Black / Orange
• Application environment: Outdoor, construction sites, industrial
• Plug type: Schuko (Type F)

Tips

Always fully unwind the cable when using high-wattage tools (above 1500 W) to avoid triggering the thermal cut-out. After use, let the cable cool before rewinding, and store the reel in a dry place. For maximum lifespan, avoid driving over the cable and inspect the sheath regularly for cuts or abrasions.
