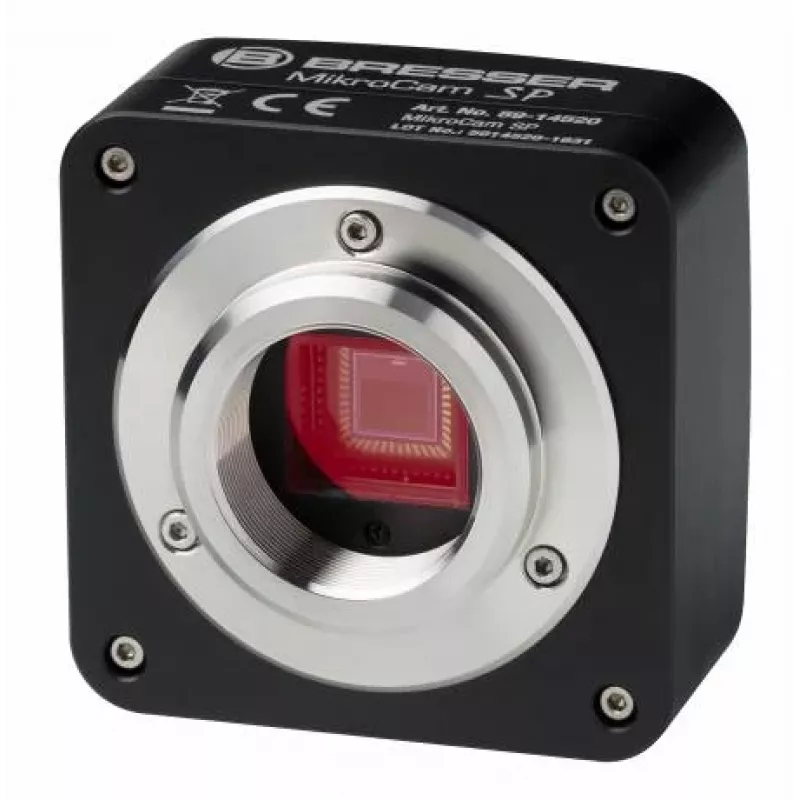

Bresser MikroCam SP 5,0 MP USB 3.0 telecamera per microscopio 5914520

The Bresser MikroCam SP 5.0 MP stands out with its SONY IMX335 CMOS sensor and USB 3.0 interface, delivering fast, high-resolution imaging for microscopy applications. Unlike many entry-level cameras, it offers a 12-bit ADC and a wide exposure range, making it suitable for both brightfield and low-light observations.

Highlights

• 5.0 MP SONY IMX335 CMOS sensor with 2592 x 1944 resolution
• USB 3.0 interface for high-speed data transfer up to 30 fps at full resolution
• Rolling shutter with exposure times from 0.1 ms to 15 s
• C-mount thread with adapters for 23.2 mm, 30 mm, and 30.5 mm eyepiece tubes
• Metal housing for durability and heat dissipation

In daily use

The camera is powered directly via USB, eliminating the need for an external power supply. The included MikroCamLab software is compatible with Windows, macOS, and Linux, providing a straightforward interface for image capture and measurement. The camera's compact design and standard C-mount make it easy to integrate into existing microscope setups.

Full specifications

• Sensor: SONY IMX335 CMOS, 1/2.8" (5.68 x 4.26 mm)
• Pixel size: 2.74 x 2.74 µm
• Max frame rates: 30 fps @ 2592x1944, 60 fps @ 1280x960, 120 fps @ 640x480
• ADC: 12-bit
• Dynamic range: ~70 dB, SNR: ~40 dB
• Mounting: C-mount with 23.2 mm, 30 mm, 30.5 mm adapters
• Power: USB powered

Final note

The MikroCam SP 5.0 MP is a reliable choice for educational, laboratory, and hobbyist microscopy, offering high resolution and fast frame rates in a robust metal body.
