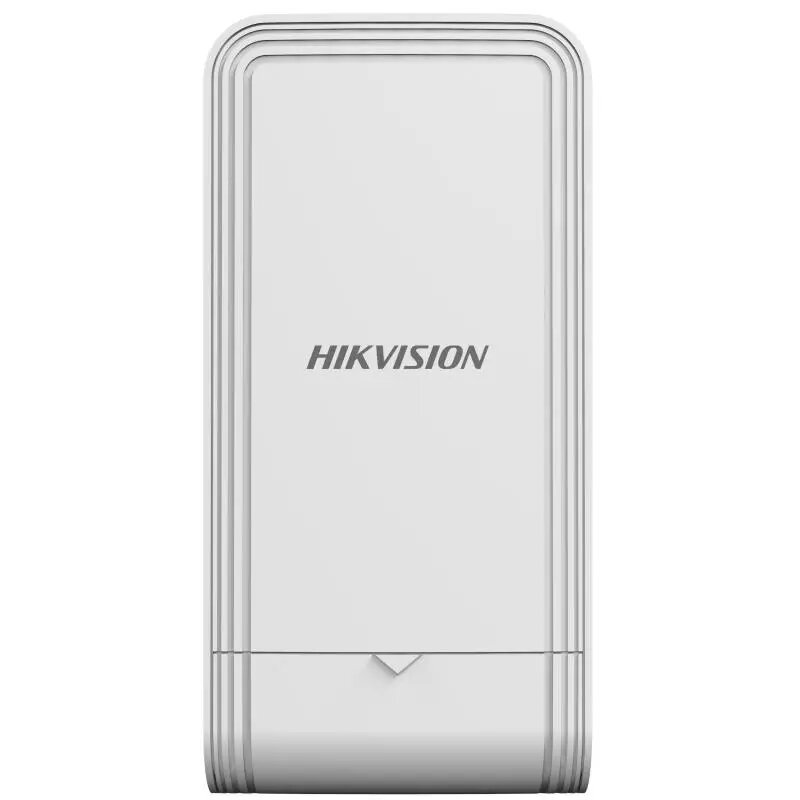

Bridge di rete Hikvision DS-3WF0FA-2N/O 2,4 GHz Wi-Fi 4

The Hikvision DS-3WF0FA-2N/O is a single-band 2.4 GHz Wi‑Fi 4 network bridge and repeater designed to extend wireless coverage and enable long-range data transmission. Supporting IEEE 802.11n/g/b and a maximum wireless throughput of 300 Mbit/s, the device includes an internal 2x2 antenna (7 dBi gain) and two Fast Ethernet ports (10/100 Mbit/s) for stable wired and wireless connections. With a transmission range up to 1000 m and compact white housing, it is suitable for outdoor link installations and network extension tasks.

Advantages

The Hikvision DS-3WF0FA-2N/O offers a simple installation process, stable long‑range wireless performance and integrated 2x2 antennas to improve signal reliability. Dual Fast Ethernet ports allow flexible wired connections and the single‑band 2.4 GHz operation provides compatibility with many existing devices. The compact 0.26 kg housing and industry-standard networking protocols ensure easy integration into various network setups.

Suitable for

• Extending wireless coverage between buildings
• Establishing point-to-point or point-to-multipoint links up to 1000 m
• Connecting remote IP cameras or network devices where cabling is impractical
• Providing a wireless bridge for small office or campus areas

Key specifications

• Model: Hikvision DS-3WF0FA-2N/O
• Wireless standard: IEEE 802.11n/g/b (Wi‑Fi 4), 2.4 GHz
• Maximum wireless data rate: 300 Mbit/s
• Antenna: internal 2x2, 7 dBi
• Ethernet: 2 × RJ-45 Fast Ethernet (10/100 Mbit/s)
• Range: up to 1000 m
• Colour: White
• Weight: 0.26 kg
• MPN: DS-3WF0FA-2N/O
• EAN: 6942160437439

How to use

Mount the unit according to the installation guide ensuring a clear line of sight between bridge endpoints for optimal range. Connect network equipment to the RJ‑45 ports for wired access or configure the device as a bridge/repeater via the web interface using the default IP settings. Select 2.4 GHz mode, set SSID and security parameters, and perform alignment to achieve the best signal. Verify link stability and throughput after configuration.

Recommendations

For reliable long‑range links, install units at elevated positions with minimal obstructions, use clear line of sight, and verify firmware is up to date. Consider spectrum usage on the 2.4 GHz band to avoid interference from other devices.
