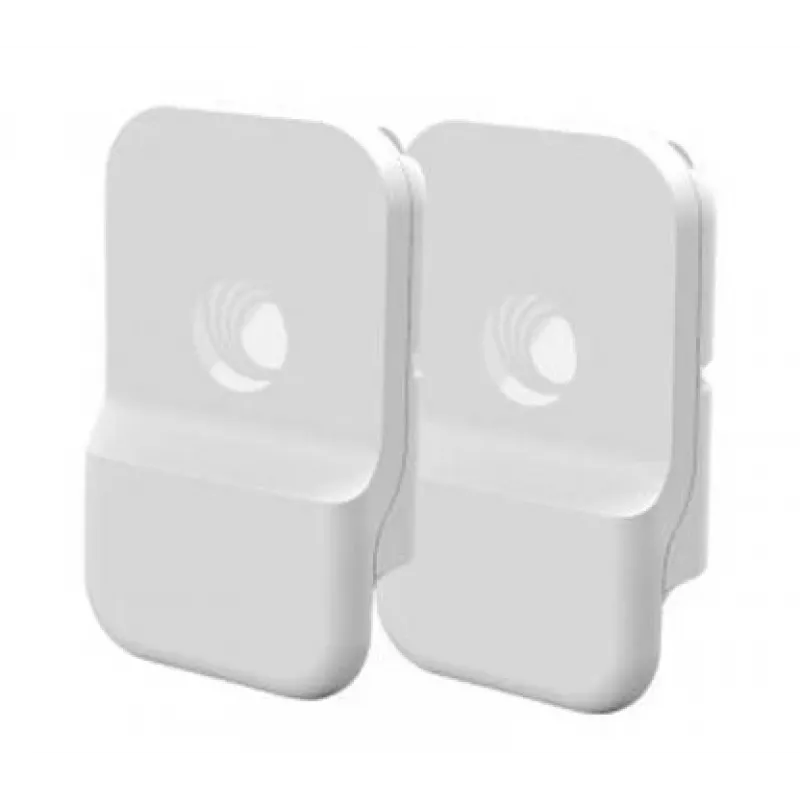

Cambium Networks 60 GHz Bridge in a Box 1Gb – kit bridge wireless point-to-point con throughput 1 Gbps

The Cambium Networks 60 GHz Bridge in a Box 1Gb delivers a full-duplex 1 Gbps wireless link over the 60 GHz band, providing fiber-like performance for point-to-point connections up to 500 meters. This complete kit includes two integrated dish antennas and pole mounts, enabling rapid deployment for enterprise backhaul, campus connectivity, or temporary event networks.

Advantages

Experience ultra-low latency and high reliability with Cambium's proven wireless technology. The 60 GHz primary link ensures gigabit speeds, while the integrated 5 GHz radio serves as a backup and management channel, maintaining connectivity even in adverse weather. With plug-and-play installation and a rugged, weatherproof design, this bridge minimizes downtime and reduces total cost of ownership.

Suitable for

• Connecting buildings across a campus or business park
• Extending network coverage to remote or temporary sites
• Providing high-capacity backhaul for surveillance or Wi-Fi access points
• Replacing costly fiber runs or leased lines

Key specifications

• Wireless Standard: 802.11ad (60 GHz) and 802.11ac (5 GHz)
• Max Throughput: 1 Gbps full-duplex
• Max Range: Up to 500 m
• Integrated Dish Antenna: 17.2 dBi gain at 60 GHz, 5 dBi at 5 GHz
• Ethernet Port: 1x 10/100/1000 Mbps
• Power: 802.3af/at PoE, max 11W
• Enclosure: UV-stabilized polycarbonate, IP-rated
• Operating Temperature: -40 to 60°C

Recommendations

For optimal performance, ensure clear line-of-sight between the two bridge units and use quality shielded Ethernet cables. The included pole mounts facilitate easy alignment; use the integrated alignment tool for precise aiming.
