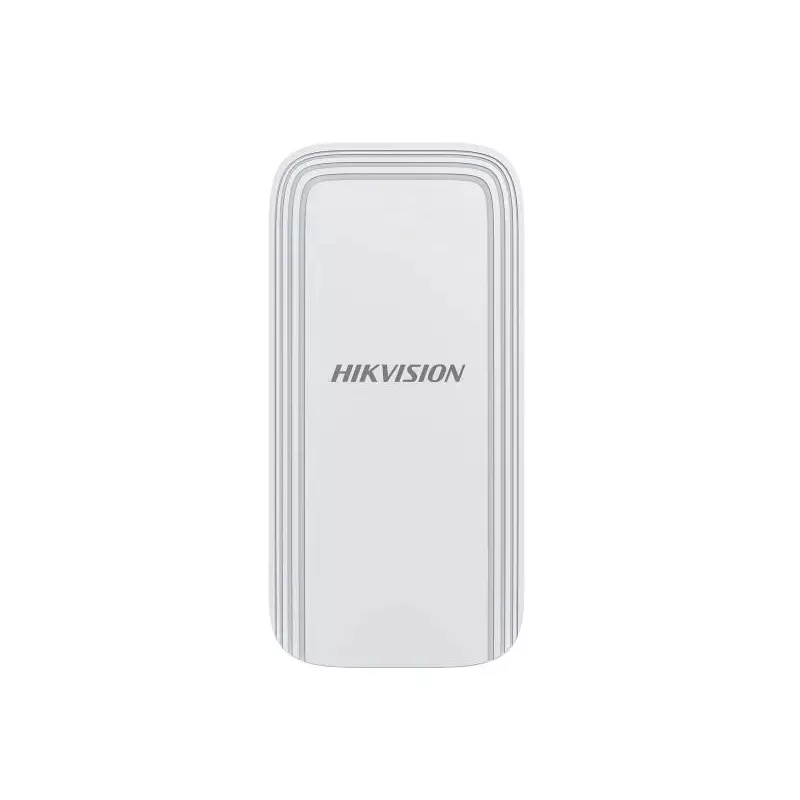

Bridge di rete Hikvision DS-3WF0FC-2N/O 300 Mbit/s 1000 m

The Hikvision DS-3WF0FC-2N/O is a network bridge designed for stable long-range wireless data transmission. It provides up to 300 Mbit/s wireless throughput and a communication range of up to 1000 m, operating on the 2.4 GHz band with Wi‑Fi 4 (802.11n) compatibility. The unit has integrated 7 dBi antennas and offers Fast Ethernet (10/100 Mbit/s) for wired connectivity, supporting IEEE 802.11b/g/n standards.

Advantages

The device delivers a combination of extended wireless range and straightforward installation, offering reliable point-to-point or point-to-multipoint links. Internal 7 dBi antennas and support for 2.4 GHz Wi‑Fi 4 ensure compatibility with a wide range of existing network equipment. Fast Ethernet ports allow easy integration with wired networks and legacy devices.

Suitable for

• Connecting buildings or sites over distances up to 1000 m
• Extending network coverage where cabling is impractical
• Linking IP cameras, access points or switches in remote locations
• Temporary or semi-permanent outdoor wireless links for surveillance or data backhaul

Key specifications

• Model: DS-3WF0FC-2N/O
• Wireless standard: IEEE 802.11b/g/n (Wi‑Fi 4)
• Frequency band: 2.4 GHz
• Maximum wireless throughput: 300 Mbit/s
• Maximum range: up to 1000 m
• Antenna: internal, 7 dBi gain
• Wired interface: Fast Ethernet (10/100 Mbit/s)
• Colour: White
• Weight: 0.19 kg

How to use

Mount the bridge according to site line‑of‑sight requirements to ensure an unobstructed path between endpoints. Connect the device to power and to the local network via the Fast Ethernet port. Use the web-based configuration utility or the vendor-supplied setup procedure to set up link mode (point-to-point or point-to-multipoint), SSID, channel, and security settings. Align units at both ends and verify link quality before finalizing installation.

Recommendations

For optimal performance, install the bridge with clear line of sight and minimal interference sources on the 2.4 GHz band; for longer-term deployments, monitor link quality and update firmware per Hikvision guidance.
