Brüder Mannesmann set idraulico per raddrizzare e ribattere 094-T-04, 10 tonnellate, 16 pezzi

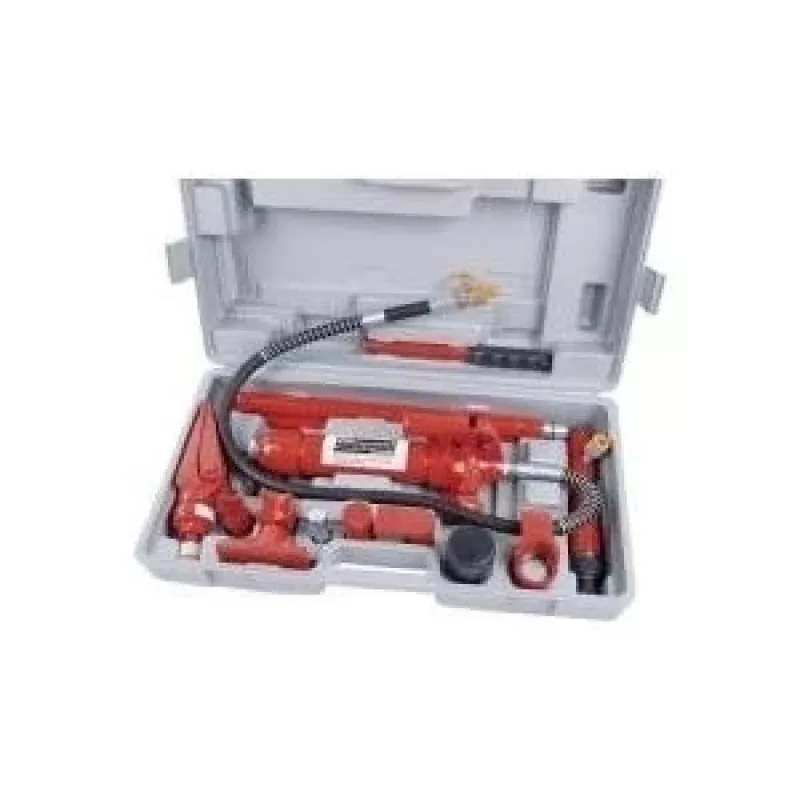

This 10-ton hydraulic straightening and dent repair kit delivers a manual pump, quick-connect couplers, and a 16-piece attachment set for pushing, pulling, spreading, and lifting in automotive and metalworking tasks. The 130 mm ram stroke and 1.2 m hose reach tight spots that fixed-frame tools cannot.

Highlights

• 10,000 kg maximum force from a manual hydraulic pump
• 16-piece set with spreader, rubber head, flat base, wedge head, 90° V-base, ram toe, plunger toe, and four extension tubes
• 620 bar working pressure and 500 ml oil capacity
• TÜV/GS certified
• Blow-molded case for organized storage

In daily use

The quick-connect couplers let you switch between the spreader, wedge head, and V-base without tools. The ram toe and plunger toe handle narrow gaps, while the rubber head protects finished surfaces. Extension tubes adjust the working length for frame rails, rocker panels, and body pillars.

Full specifications

• Max. force: 10 t (10,000 kg)
• Pump type: manual hydraulic
• Ram stroke: 130 mm
• Hose length: 1.2 m
• Min. ram height: 390 mm
• Working pressure: 620 bar (9000 PSI)
• Oil capacity: 500 ml
• Case material: robust plastic
• Certifications: TÜV/GS
• Material: high-strength steel

Final note

Supplied in a blow-molded case with all attachments and extensions, ready for workshop or mobile use.
