BUSCH-JAEGER 2712USL-101 interruttore tapparella per cilindro profilato 2 poli

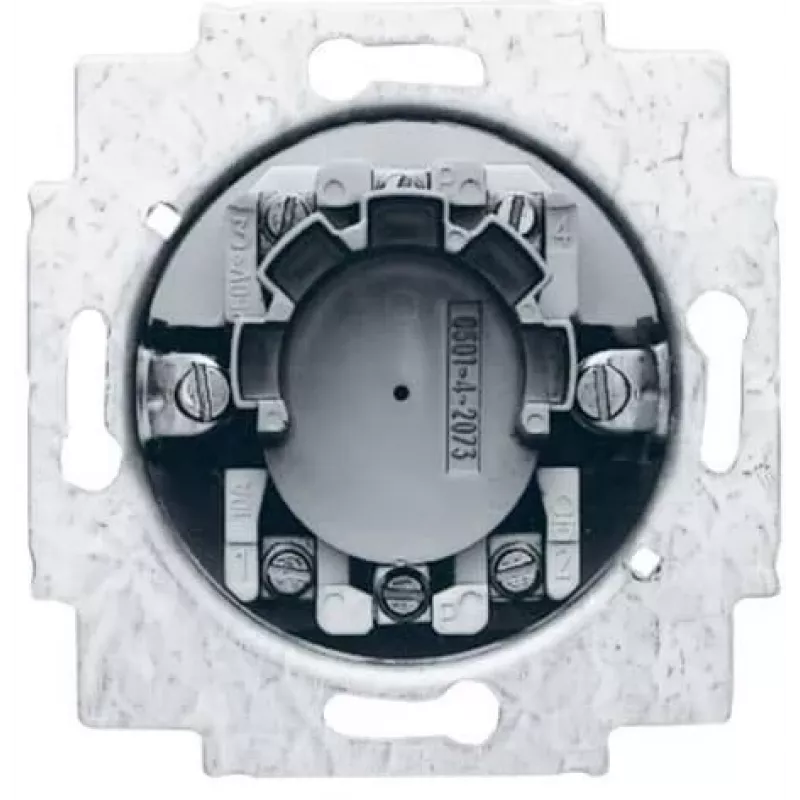

The BUSCH-JAEGER 2712USL-101 is a professional key-operated roller shutter switch designed for controlling roller shutters, blinds, awnings, and garage doors. This flush-mounted switch is compatible with standard profile half cylinders (DIN 18252) and features a 2-pole momentary switching function. With a rated voltage of 250 V AC and a current of 10 A, it ensures reliable operation in residential and commercial installations.

Advantages

Key-operated design provides secure and convenient control. The 8-position adjustable cam allows flexible adaptation to different cylinder lengths (30-35 mm). Screw terminals ensure easy and secure wiring. Compact flush-mount design saves space and integrates seamlessly into standard wall boxes.

Suitable for

• Roller shutters and blinds
• Awnings and sun protection systems
• Garage doors
• Commercial and residential building automation

Key specifications

• Product Type: Roller Shutter Switch
• Operation: Key-operated (for profile half cylinder)
• Number of Poles: 2-pole
• Switching Function: Momentary (push-button)
• Rated Voltage: 250 V AC
• Rated Current: 10 A
• Connection: Screw terminals
• Mounting: Flush-mounted (UP)
• Material: Thermoplastic
• Protection Class: IP20
• Operating Temperature: -5 to +45 °C
• Installation Depth: 32 mm

Recommendations

For optimal performance, use a standard profile half cylinder with a length of 30-35 mm. Ensure proper wiring according to local electrical codes. This switch is ideal for new installations or retrofitting existing systems.
