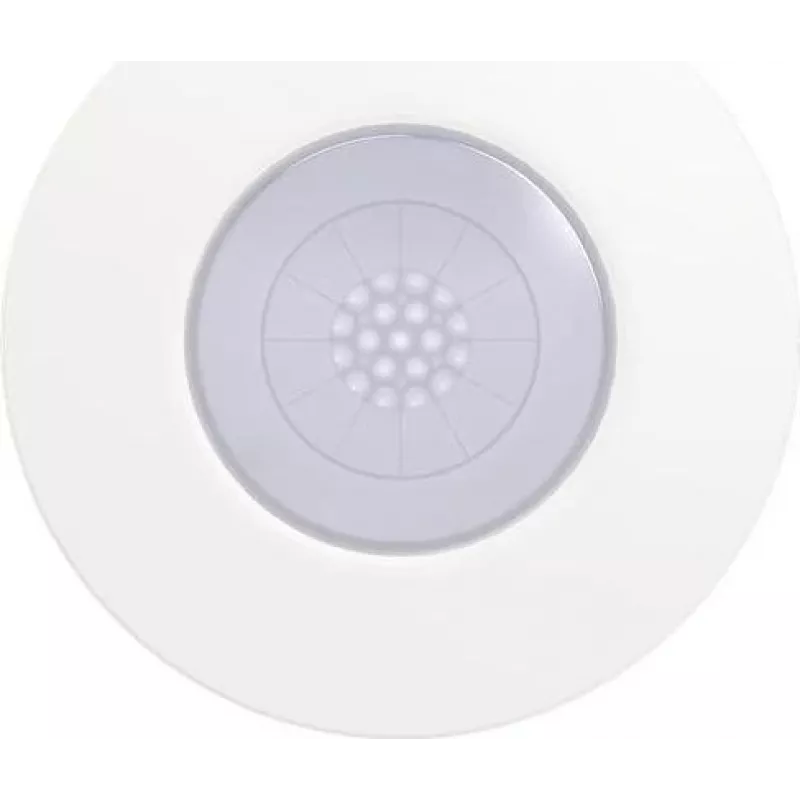

BUSCH-JAEGER BasicLINE Standard rilevatore di presenza 8m/10m Studio White 6814/02-916

The BUSCH-JAEGER BasicLINE Standard presence detector stands out with its dual-range detection: a precise 8-metre presence zone for fine movements and a wider 10-metre motion zone for walking, all from a discreet ceiling-mounted unit. Unlike basic PIR sensors, it combines a 360° detection angle with independent adjustment of time delay and brightness threshold, giving you full control over lighting automation in offices, corridors, or living spaces.

Highlights

• Passive infrared (PIR) technology with 360° coverage
• Presence detection diameter: 8 m at 2.5 m mounting height
• Motion detection diameter: 10 m at 2.5 m mounting height
• Adjustable time delay: 10 seconds to 30 minutes
• Adjustable brightness threshold: 5 to 1000 lux
• High switching capacity: 2300 W resistive, 400 W LED
• Flush ceiling mounting with 94 mm installation diameter
• Studio White (RAL 9016) finish blends with ceilings

In daily use

Installed at a height between 2.0 and 3.5 metres, the detector reliably switches lighting on when someone enters the room and keeps it on while presence is detected. The brightness threshold prevents unnecessary activation in daylight, and the time delay can be set to match your routine—from a quick 10-second pulse to a 30-minute hold. The robust thermoplastic housing ensures durability, while the IP20 rating suits indoor applications.

Full specifications

• Brand: BUSCH-JAEGER
• Model: 6814/02-916
• MPN: 2CKA006800A3236
• EAN: 4011395362587
• Detection technology: Passive Infrared (PIR)
• Detection angle: 360°
• Presence detection range: Ø 8 m (at 2.5 m height)
• Motion detection range: Ø 10 m (at 2.5 m height)
• Mounting type: Ceiling flush-mounted
• Recommended mounting height: 2.0 - 3.5 m
• Supply voltage: 230 V AC, 50 Hz
• Max. switching capacity resistive: 2300 W
• Max. switching capacity LED: 400 W (RC-LED)
• Time delay: 10 s - 30 min (adjustable)
• Brightness threshold: 5 - 1000 lux (adjustable)
• Protection class: IP20
• Colour: Studio White (RAL 9016)
• Housing material: Thermoplastic
• Operating temperature: 0 °C to 45 °C
• Number of channels: 1 (Light)
• Installation diameter: 94 mm
• Installation depth: 45 mm

Final note

For reliable, energy-saving lighting control in indoor spaces, the BasicLINE Standard presence detector offers the essential features without unnecessary complexity—a smart choice for both new installations and retrofits.
