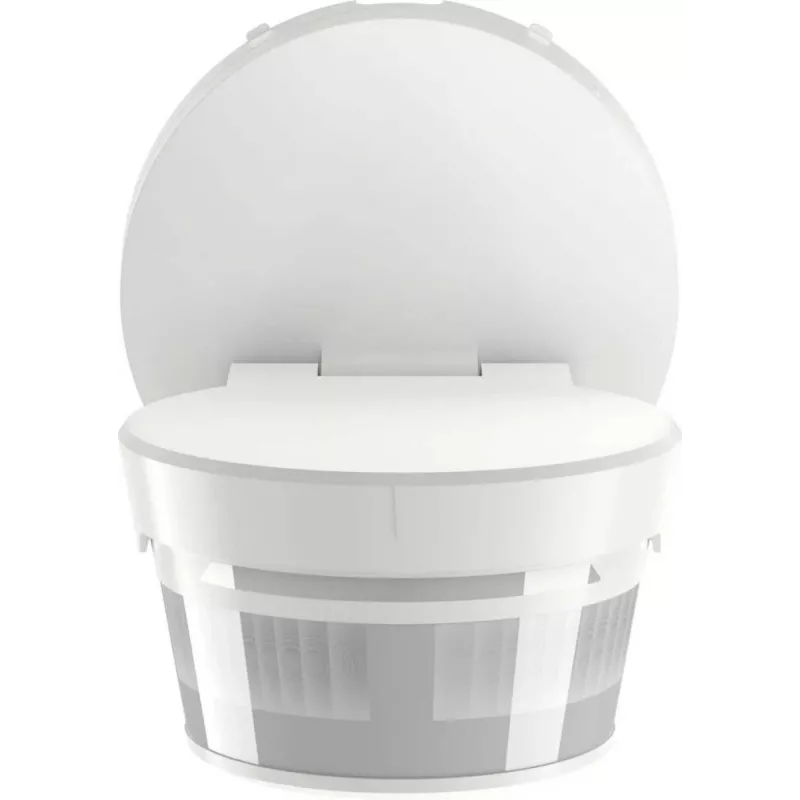

Busch-Jaeger Busch-Wächter Pro 220° BT bianco 6851/22S-134 (2CKA006800A3081)

With a 220° detection angle and Bluetooth connectivity, the Busch-Wächter Pro 220° BT motion detector covers large areas while allowing convenient configuration via app.

Overview

The Busch-Jaeger Busch-Wächter Pro 220° BT in white is a surface-mounted motion detector for indoor and outdoor use. It combines passive infrared technology with a wide detection angle and adjustable settings for brightness threshold and time delay.

What stands out

• 220° detection angle for broad coverage
• Bluetooth connectivity for app-based configuration
• Adjustable brightness threshold from 5 to 1000 lux
• Switch-off delay adjustable from 10 seconds to 30 minutes
• High switching capacity: up to 2300 W for incandescent loads

Technical details

• Detection technology: Passive Infrared (PIR)
• Detection range: max. 16 m forward, 8 m to each side
• Recommended installation height: 2.5 m
• Switching capacity (LED): max. 250 W (RC)
• Operating voltage: 230 V AC, 50 Hz
• Protection class: IP55
• Operating temperature: -25 °C to +55 °C
• Housing material: UV-stabilized plastic
• Number of detection levels: 6
• Number of lenses: 104
• Master/Slave function: configurable via app
• Standby power consumption: < 0.5 W

Our verdict

A versatile motion detector with app control and robust performance for demanding applications.
