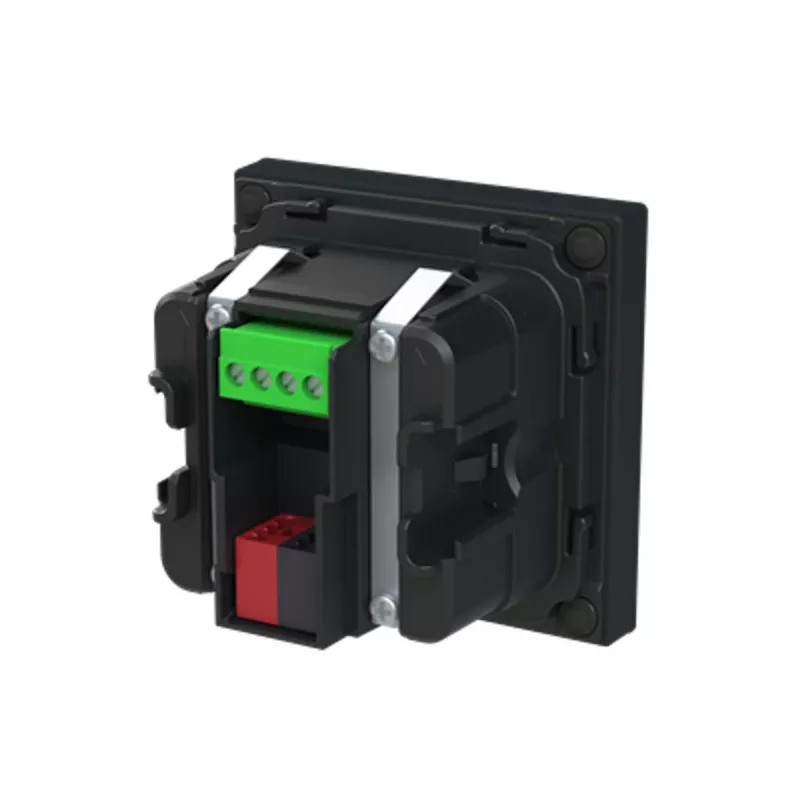

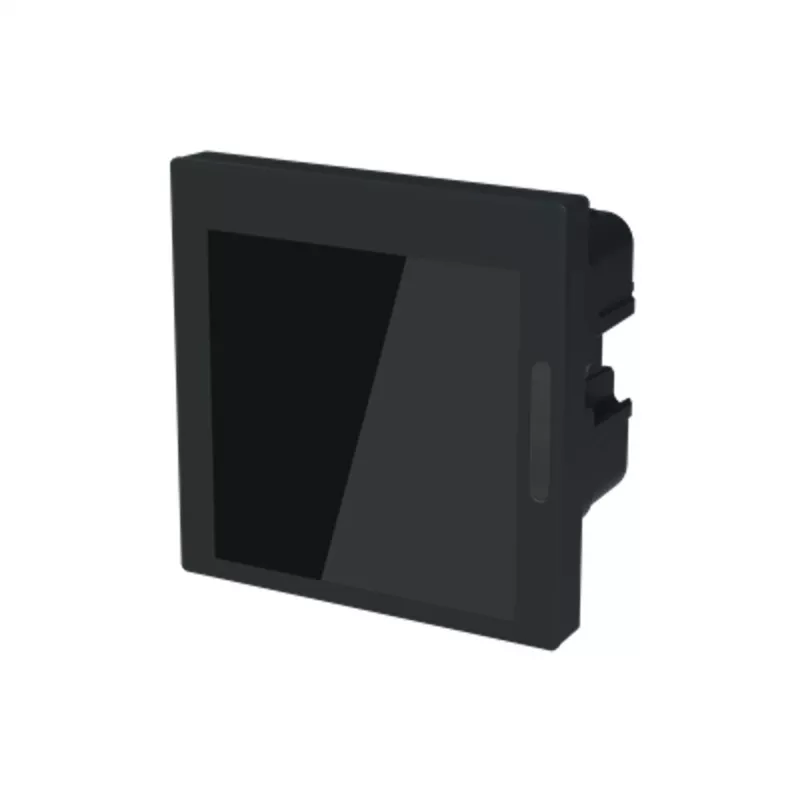

BUSCH-JAEGER Display 2.4 per Busch-balance SI, free@home, 2TMA310010B0001

Managing a smart home without a dedicated control panel can be frustrating, especially when you need to adjust lighting, blinds, or temperature quickly. The BUSCH-JAEGER Display 2.4 for Busch-balance SI solves this by providing a compact, intuitive touch interface for the Busch-free@home® system, allowing you to control all connected smart home functions from a single elegant wall-mounted unit.

Who is it for

This display module is ideal for homeowners and building managers who have a Busch-free@home® system installed and want a convenient, wall-mounted control point that matches the Busch-balance SI design line. It is suitable for residential and commercial environments where a flush-mounted, stylish control panel is desired.

Main features

• 2.4-inch TFT colour display with capacitive touchscreen for intuitive operation
• Graphical, icon-based user interface for easy navigation
• Control of switching, dimming, blinds, scenes, time programs, and temperature
• Designed for Busch-free@home® bus system (24 V DC)
• Flush-mounted installation, compatible with Busch-balance SI frames
• Black module colour, made of thermoplastic (PC)
• Backlit display for visibility in various lighting conditions

Specifications

• Display size: 2.4 inches (6.1 cm)
• Resolution: 320 x 240 pixels (QVGA)
• Touchscreen type: Capacitive
• Operating voltage: 24 V DC (via bus)
• Power consumption: 1.5 W
• Mounting type: Flush-mounted
• Operating temperature: 5 °C to 45 °C
• Protection class: IP20
• Housing material: Thermoplastic (PC)
• Product colour: Black

Tips

Ensure you have a compatible Busch-free@home® system and a flush-mounted box with a Busch-balance SI frame before installation. The display is powered directly from the bus, so no additional power supply is needed. For best performance, keep the device within the specified operating temperature range.
