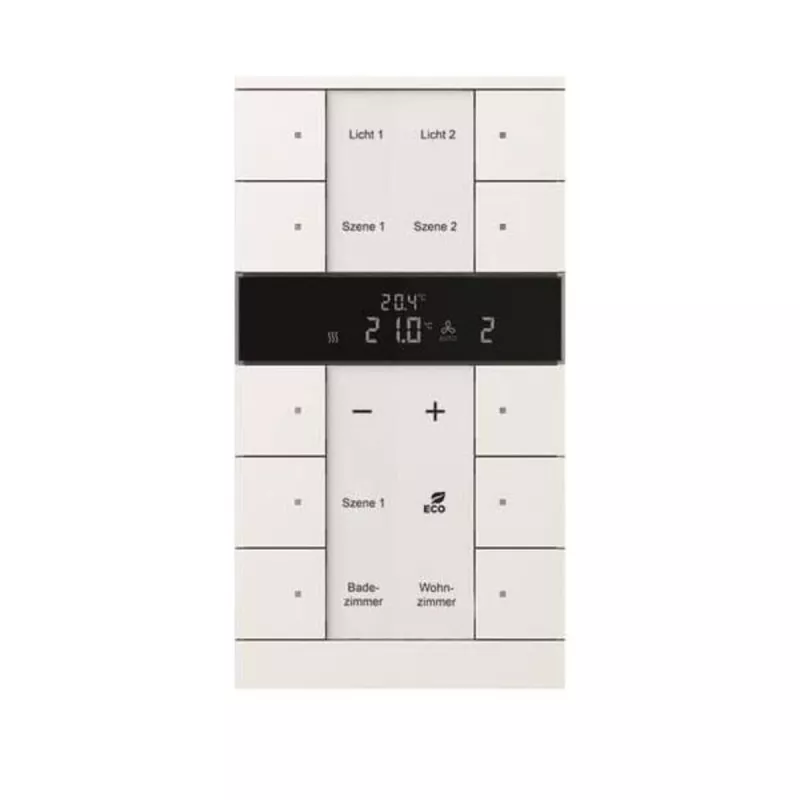

Busch-Jaeger dispositivo HVAC 10 canali, BE,studio/ws SBR/U10.0.11-884 (2CKA006330A0051)

Managing lighting, blinds, HVAC, and door communication across a building can be fragmented and inefficient. The Busch-Jaeger HVAC-Gerät 10fach, BE,studio/ws SBR/U10.0.11-884 (2CKA006330A0051) centralizes these functions into a single flush-mounted touch panel.

Who is it for

This panel suits building owners, facility managers, and system integrators who need a reliable KNX-based room controller with a large display and intuitive operation.

Main features

• 10.1-inch TFT capacitive touchscreen with 1280 x 800 resolution
• Integrated temperature, proximity, and brightness sensors for automated control
• Supports lighting, blinds, HVAC, scenes, time programs, energy management, and door communication
• Connects via Ethernet (RJ45) and USB 2.0 Type-A
• Powered by 24 V DC external supply
• Studio white high-quality plastic housing, flush-mounted
• Linux-based operating system with Busch-ComfortTouch® Configurator software
• Remote access via myBUSCH-JAEGER portal and app (additional components may be required)

Specifications

• Display: 10.1-inch TFT colour, capacitive touchscreen, 1280 x 800 pixels
• Colour: Studio White
• Mounting: Flush-mounted, installation depth approx. 35 mm
• Power: 24 V DC (external power supply required)
• Connectivity: 1x Ethernet (RJ45), 1x USB 2.0 Type-A
• Protocol: KNX IP
• Sensors: Temperature, proximity, brightness
• Operating system: Linux-based
• Protection class: IP20
• Operating temperature: 0°C to 45°C
• Material: High-quality plastic
• Configuration: Busch-ComfortTouch® Configurator (PC software)

Tips

Ensure the flush-mounted box depth meets the 35 mm requirement. For remote access, verify compatibility with the myBUSCH-JAEGER portal and app, and check if additional components are needed.
