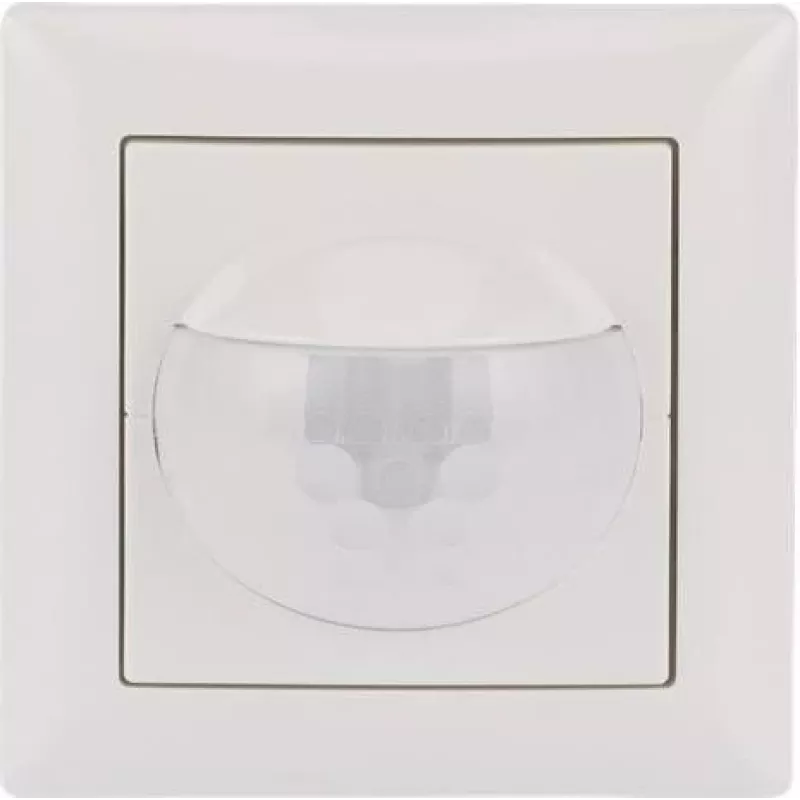

Busch-Jaeger Flex-Set Multi BW180 64764 UJ-914 rilevatore di movimento, Studio White

The Busch-Jaeger Flex-Set Multi BW180 64764 UJ-914 is a high-quality passive infrared (PIR) motion detector designed for flush-mounted installation. Ideal for indoor use, it provides reliable motion detection with a 180° detection angle and a forward range of up to 12 meters. This device is perfect for automating lighting in hallways, staircases, and other areas, offering adjustable brightness threshold and time delay settings for customized operation.

Advantages

Energy-efficient and convenient: The motion detector automatically switches lights on and off based on occupancy, reducing energy consumption. The adjustable settings allow you to fine-tune sensitivity and timing to suit your needs. Its compact design blends seamlessly with modern interiors.

Suitable for

• Indoor areas such as corridors, stairwells, and entrance halls
• Automating lighting in offices, meeting rooms, and storage areas
• Integration into smart home systems for enhanced control

Key specifications

• Product Type: Motion Detector
• Sensor Technology: Passive Infrared (PIR)
• Detection Angle: 180°
• Detection Range (Forward): Approx. 12 m
• Detection Range (Sideways): Approx. 8 m
• Mounting Type: Flush-mounted
• Recommended Mounting Height: 0.8 - 2.5 m (optimal 1.1 m)
• Operating Voltage: 230 V AC, 50 Hz
• Switching Capacity (Incandescent/Halogen): 2300 W
• Switching Capacity (LED): 500 W (RC-LED)
• Brightness Threshold Adjustment: Approx. 3 - 1000 lux + Test mode
• Time Delay Adjustment: Approx. 10 s - 30 min + Pulse
• Protection Class (IP Rating): IP20
• Color: Studio White
• Material: Thermoplastic (PC)
• Number of Channels: 1 (Light)

Recommendations

For optimal performance, mount the detector at a height of 1.1 meters and ensure the detection area is free of obstructions. Use with compatible Busch-Jaeger switch ranges for a cohesive look.
