BUSCH-JAEGER H8237-5B-03 IP touch 10 LAN/LAN nero 2TMA130050B0060

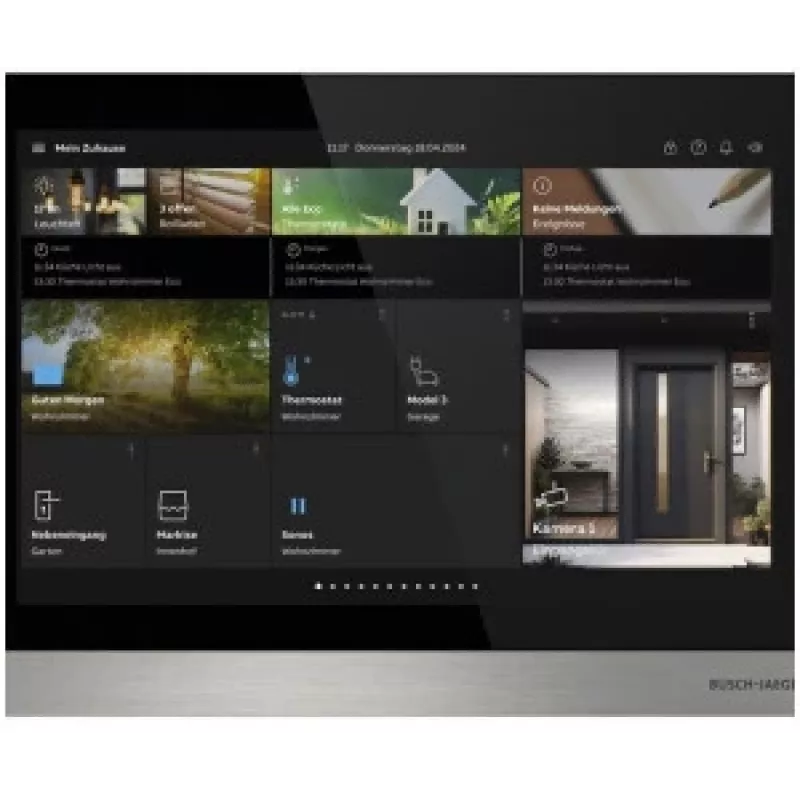

Imagine a modern office building where every room needs instant access to building automation—lights, climate, security—all from a single elegant panel. The BUSCH-JAEGER H8237-5B-03 IP touch 10 is that panel. With its 10.1-inch capacitive touchscreen and sleek black finish, it becomes the command center for smart homes and commercial spaces, offering intuitive control over the entire Busch-Jaeger Free@Home system or KNX networks via IP gateway.

Key specifications

• Display: 10.1-inch TFT LCD, capacitive touchscreen, 1280 x 800 pixels (WXGA)
• Connectivity: Ethernet LAN 10/100 Mbps, Power over Ethernet (PoE) IEEE 802.3af Class 0 or 24V DC
• Integrated sensors: proximity sensor and brightness sensor for automatic display adjustment
• Audio: built-in microphone and speaker for intercom and voice announcements
• Mounting: flush-mounted for a clean, professional look
• Protection class: IP20, suitable for indoor use
• Operating temperature: 0 °C to 45 °C
• Compatibility: Busch-Jaeger Free@Home, KNX via IP gateway

Why choose it

This touch panel combines high-resolution visuals with robust networking, ensuring reliable performance in demanding environments. The proximity sensor wakes the screen as you approach, while the brightness sensor adapts to ambient light, saving energy and enhancing usability. PoE support simplifies installation by delivering both power and data over a single cable, reducing clutter and cost. Its black design blends seamlessly with modern interiors, making it a discreet yet powerful addition to any wall.

Ideal use cases

• Smart home central control for lighting, heating, and multimedia
• Office building automation for meeting rooms and common areas
• Hotel room management systems for guest comfort and efficiency
• IP camera monitoring display in security stations

Good to know

The panel is designed for flush mounting, requiring a standard back box. It operates reliably within a temperature range of 0 °C to 45 °C, making it suitable for most indoor environments. For integration with KNX systems, an IP gateway is required. Note that the device is not weatherproof and should be installed in dry, indoor locations only.
