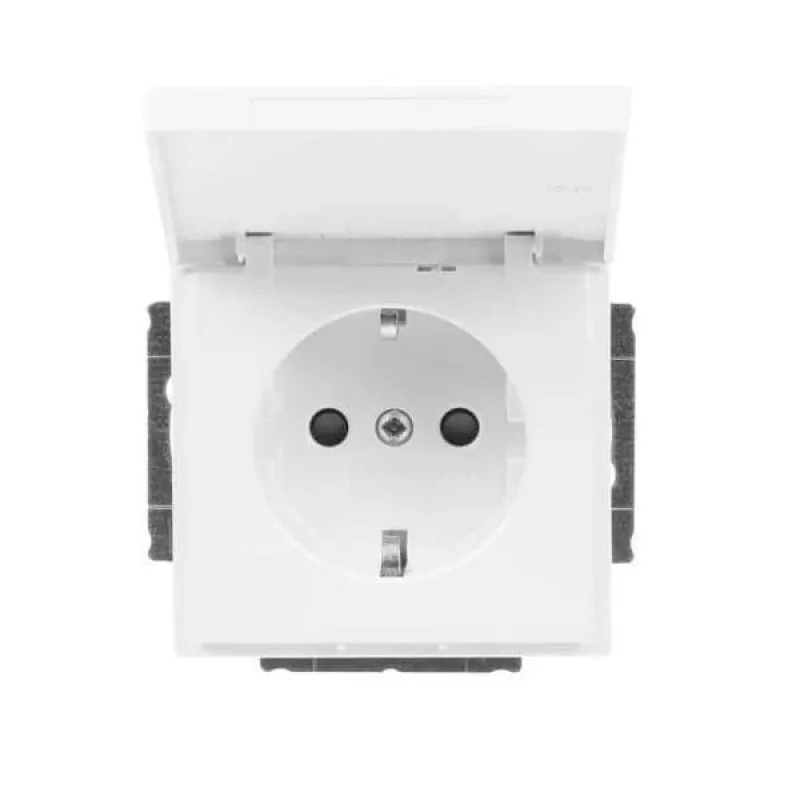

Busch-Jaeger presa SCHUKO bianco studio 20 EUKBR-84 (2CKA002018A1529)

The Busch-Jaeger SCHUKO socket outlet insert in studio white offers a flush-mounted solution for standard German-style power connections. Its thermoplastic construction and screw terminals provide a straightforward installation for indoor applications.

Highlights

• Single SCHUKO socket, 16 A, 250 V AC
• Screw terminals accept 1.5–2.5 mm² rigid conductors
• Claw and screw fixing for secure mounting
• Halogen-free material
• Compatible with Busch-Jaeger cover plates and frames

In daily use

This insert is intended for use with Busch-Jaeger cover plates and frames, allowing a consistent appearance across the installation. The studio white colour suits a range of interior designs.

Full specifications

• Socket type: SCHUKO (Type F)
• Number of sockets: 1
• Rated voltage: 250 V AC
• Rated current: 16 A
• Connection type: Screw terminals
• Mounting type: Flush-mounted
• Colour: Studio white
• Material: Thermoplastic
• Surface finish: Untreated
• Degree of protection: IP20
• Halogen-free: Yes
• Child protection: No
• Application: Indoor use
• Terminal capacity: 1.5–2.5 mm² rigid conductors
• Fixing method: Claw and screw fixing

Final note

Designed for use with Busch-Jaeger cover plates and frames, this insert provides a reliable power connection for indoor installations.
