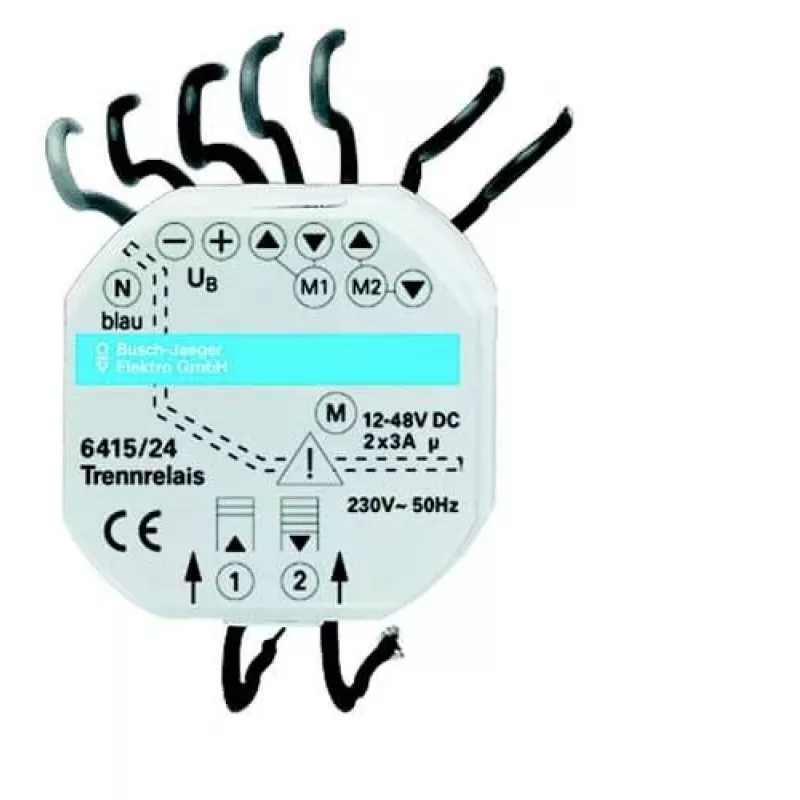

Busch-Jaeger Relè di separazione a 2 canali per azionamenti DC 6410-0-0363

DC motors in blinds and shutters can suffer from short circuits and interference when multiple drives share a control circuit. This 2-channel isolation relay provides potential separation, preventing faults from spreading and ensuring reliable operation of your DC drives.

Who is it for

Electricians and installers working with Busch-Jaeger blind and shutter control systems who need to isolate DC motor circuits for safety and performance.

Main features

• 2-channel isolation relay for DC drives
• Potential separation prevents short circuits
• 230V AC control input
• 24V DC / 3A switching output
• Flush-mounted installation

Specifications

• Relay type: Isolation relay
• Number of channels: 2
• Control input voltage: 230V AC, 50/60 Hz
• Max. switching voltage: 24V DC
• Max. switching current: 3A
• Max. switching power: 60W
• Connection type: Screw terminals
• Housing material: Thermoplastic
• Installation depth: 32 mm

Tips

Ensure the relay is installed in a flush-mounted box with adequate depth. Use with compatible Busch-Jaeger blind control systems for optimal performance.
