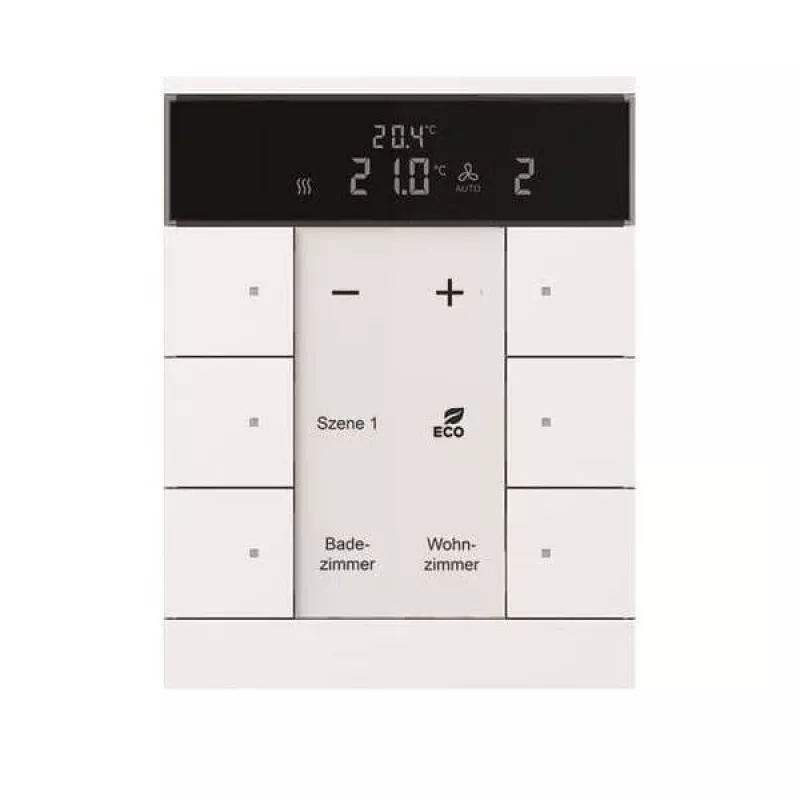

BUSCH-JAEGER termostato ambiente SBR/U6.0.11-84, comando a 6 canali, KNX 2CKA006330A0003

The BUSCH-JAEGER SBR/U6.0.11-84 combines room temperature control with six configurable push-buttons in a single flush-mounted KNX device. Unlike separate thermostats and button interfaces, it integrates both functions to reduce wall clutter and simplify wiring.

Highlights

• 6-gang push-button interface for switching, dimming, blind control, scene recall, and more
• Integrated temperature sensor with PI or 2-point control for heating and cooling
• Monochrome LCD with backlight for clear status and setpoint display
• Powered directly from the KNX bus (21-30 V DC), no external supply needed
• Studio white finish (similar to RAL 9010) in durable thermoplastic

In daily use

Set the desired room temperature via the buttons and monitor the current value on the backlit display. Each of the six buttons can be assigned to lighting, blinds, scenes, or value transmission through the KNX system. Time programs and presence simulation are available via the bus, allowing automated climate and lighting control.

Full specifications

• Bus system: KNX
• Product type: Room temperature controller with operating functions
• Number of operating functions: 6-gang (6 push-buttons)
• Display: Monochrome LCD with backlight
• Integrated sensors: Temperature sensor
• Operating modes: Heating, cooling, ventilation (manual/automatic)
• Temperature setpoint range: 5 °C to 40 °C
• Control type: PI or 2-point control
• Power supply: KNX bus voltage (21-30 V DC)
• Mounting: Flush-mounted in standard box
• Colour: Studio white (similar to RAL 9010)
• Material: Thermoplastic (PC)
• Protection class: IP20
• Ambient temperature (operation): -5 °C to +45 °C
• Relative humidity: Max. 95 % (non-condensing)

Final note

For KNX installations requiring both climate control and flexible button functions in a compact design, the SBR/U6.0.11-84 offers a practical solution without extra wiring.
