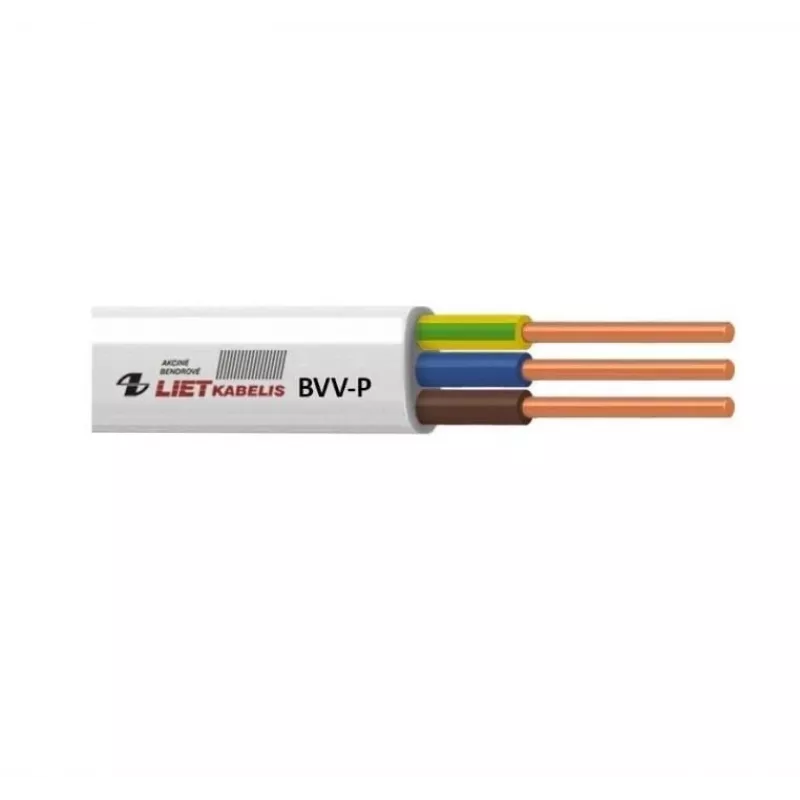

BVV-P Cavo elettrico piatto in PVC 3x1,5 mm² bianco 50m

The BVV-P flat PVC power cable is designed for fixed installation in domestic and commercial wiring applications. With 3 copper conductors of 1.5 mm² each, it is suitable for lighting circuits, power outlets, and general electrical distribution. The flat profile allows for space-saving installation under plaster or in conduits.

Advantages

Flame retardant PVC sheath ensures safety; flat shape simplifies routing; solid copper conductors provide reliable conductivity; moisture resistant for indoor use.

Suitable for

• Fixed wiring in residential and commercial buildings
• Lighting circuits and power outlets
• Installation in dry or damp indoor environments

Key specifications

• Cable type: BVV-P (flat PVC insulated and sheathed)
• Number of cores: 3
• Conductor cross-section: 1.5 mm² per core
• Conductor material: Copper (solid)
• Insulation and sheath material: PVC
• Cable colour: White
• Length: 50 meters
• Rated voltage: 300/500 V
• Max current: up to 16 A (depending on installation)
• Operating temperature: -25°C to +70°C
• Flame retardant (self-extinguishing)
• Outer dimensions approx.: 4.5 mm x 9 mm

Recommendations

Ensure compliance with local electrical regulations. Use appropriate connectors and junction boxes. Not suitable for outdoor burial or direct sunlight exposure.
