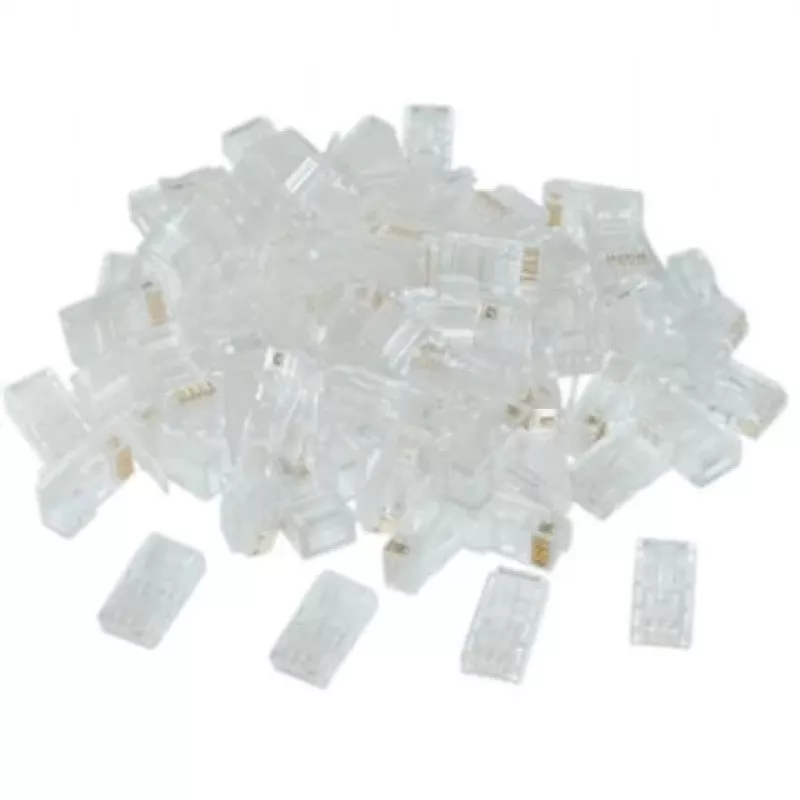

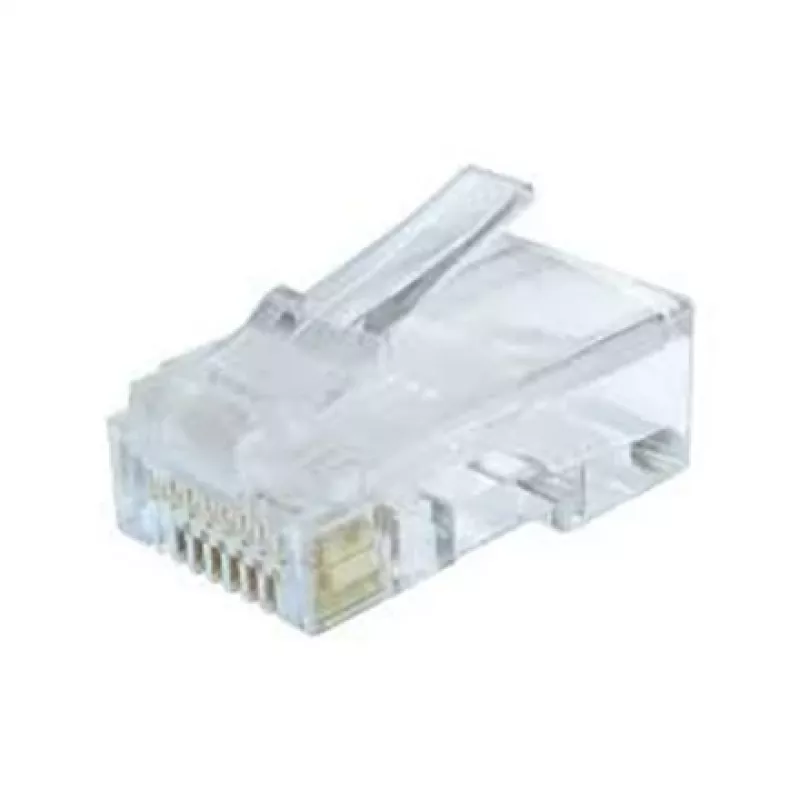

Connettore a filo RJ-45 Gembird LC-8P8C-002/10

The Gembird LC-8P8C-002/10 is a transparent modular 8P8C (RJ45) plug with 30 µin gold plating on the contacts, designed for use with solid UTP CAT6 LAN cables (AWG 23). Packaged in a polybag, this connector provides reliable electrical contact and corrosion resistance for network terminations.

Advantages

The gold-plated contacts (30 µin) improve conductivity and reduce oxidation compared with unplated connectors. The transparent housing allows visual inspection of conductor alignment during termination. The connector is compatible with solid UTP CAT6 cables (AWG 23) and is supplied in a compact polybag for easy storage and transport.

Suitable for

Key specifications

How to use

Strip the outer jacket of the CAT6 cable, untwist pairs and align conductors according to the required wiring standard (T568A or T568B). Fully insert the conductors into the RJ45 plug so each wire reaches its contact, then crimp the plug using a compatible RJ45 crimping tool. Verify the termination with a cable tester to ensure correct pinout and continuity.

Recommendations

Use these connectors with solid AWG 23 CAT6 UTP cable only; do not use with stranded patch cords. Apply a compatible crimping tool and test each terminated cable to confirm reliable network performance.
