InLine 69927B Accoppiatore in fibra ottica LC, IP68, presa 2x2 LC, per esterni, M20

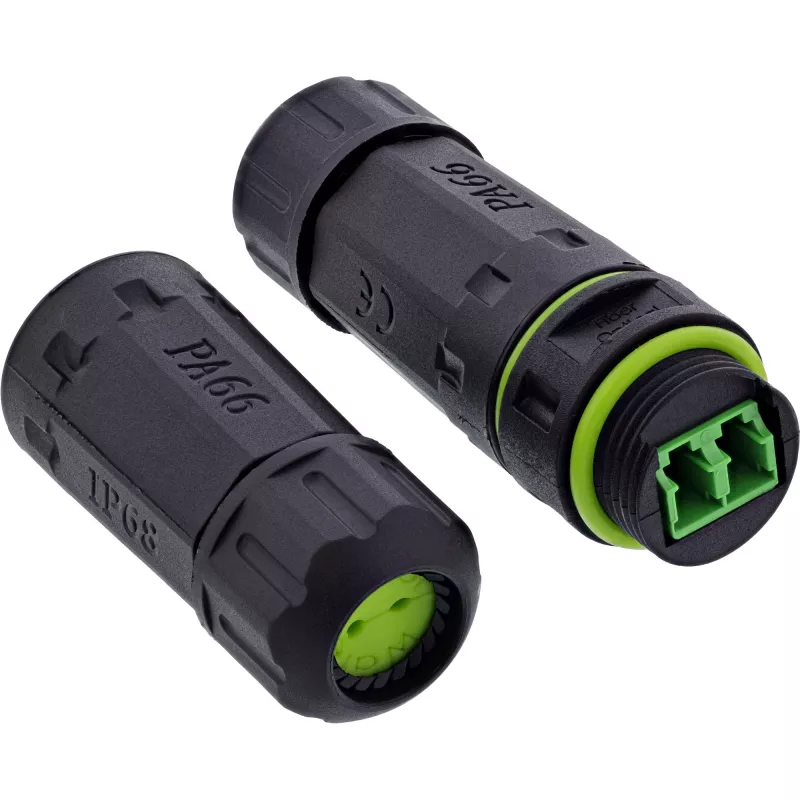

The InLine 69927B is a fiber optic coupler with LC duplex female/female sockets, designed for single-mode UPC/APC connections. Its IP68-rated PA66 housing with silicone seal protects against water, dust and temperatures from -40 °C to +85 °C, making it suitable for outdoor and industrial use. The M20 thread allows integration into standard housing openings, and the pre-assembled sockets enable tool-free installation.

Key features

• IP68 protection against water, dust and extreme temperatures
• Housing made of PA66 with silicone seal
• LC duplex female/female sockets
• M20 thread for standardized installation openings
• Tool-free screw connection
• Suitable for single-mode UPC/APC connections
• For cable diameter 2.9 mm

Specifications

• Brand: InLine
• MPN: 69927B
• Module: LC duplex female/female
• Side A: LC female
• Side B: LC female
• Material: Nylon (PA66)
• Seal: Silicone
• Thread size: M20
• Application: Single-mode UPC/APC
• For cable diameter: 2.9 mm
• Dimensions: 120 x 26 x 26 mm
• IP protection class: IP68
• Temperature resistance: -40 °C to +85 °C
• Colour: Black
• Country of origin: Taiwan
• EAN: 4043718346691
