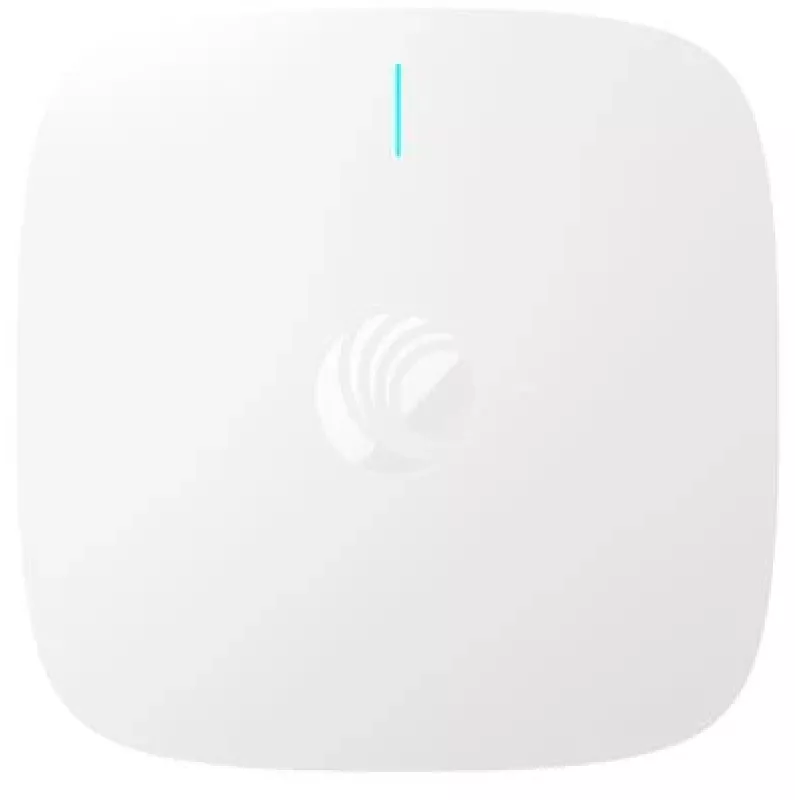

Cambium Networks XE3-4X00A00-EU access point indoor tri-radio Wi-Fi 6/6E, 802.11ax, 4x4 MU-MIMO, 5GbE, PoE++

The Cambium Networks XE3-4X00A00-EU is a high-performance indoor tri-radio Wi-Fi 6/6E access point designed for high-density environments. With support for the 2.4 GHz, 5 GHz, and 6 GHz bands, it delivers aggregate data rates up to 10.74 Gbps, ensuring seamless connectivity for demanding applications. This access point features 4x4 MU-MIMO on all three bands, OFDMA, and up to 1024 concurrent clients, making it ideal for enterprise, education, and hospitality deployments.

Advantages

Tri-radio architecture with dedicated scanning radio for enhanced security and performance. Supports the latest Wi-Fi 6E standard for reduced interference and higher capacity. Powered by cnMaestro cloud or on-premises management for simplified network operations. Includes Bluetooth Low Energy (BLE) for location-based services and easy provisioning.

Suitable for

• Enterprise offices and conference rooms
• Educational campuses and lecture halls
• Hospitality venues and public hotspots
• Healthcare facilities and retail spaces

Key specifications

• Wi-Fi Standard: 802.11ax (Wi-Fi 6/6E)
• Radio Configuration: Tri-Radio (2.4 GHz, 5 GHz, 6 GHz)
• MIMO: 4x4 MU-MIMO on all bands
• Aggregate Data Rate: Up to 10.74 Gbps
• Ethernet Ports: 1x 5 Gigabit Ethernet (5GbE), 1x 1 Gigabit Ethernet (1GbE)
• PoE Support: 802.3at (PoE+), 802.3bt (PoE++)
• Antenna Type: Internal Omni-directional
• Concurrent Clients: Up to 1024
• Management: cnMaestro Cloud/On-Premises, XMS-Cloud
• Security: WPA3, WPA2, WPA, 802.1X, Captive Portal
• Operating Temperature: 0°C to 50°C
• Mounting: Wall/Ceiling Mount
• USB Port: 1x USB 2.0
• Bluetooth: BLE
• Power Consumption: Max 30W (802.3bt)

Recommendations

For optimal performance, use with a PoE++ switch or injector. Pair with cnMaestro for centralized management. Ideal for high-density Wi-Fi 6E deployments.
