CAME BXV 10 SAFE ATOMO Set (telecomandi TOP) per cancelli scorrevoli fino a 1000 kg

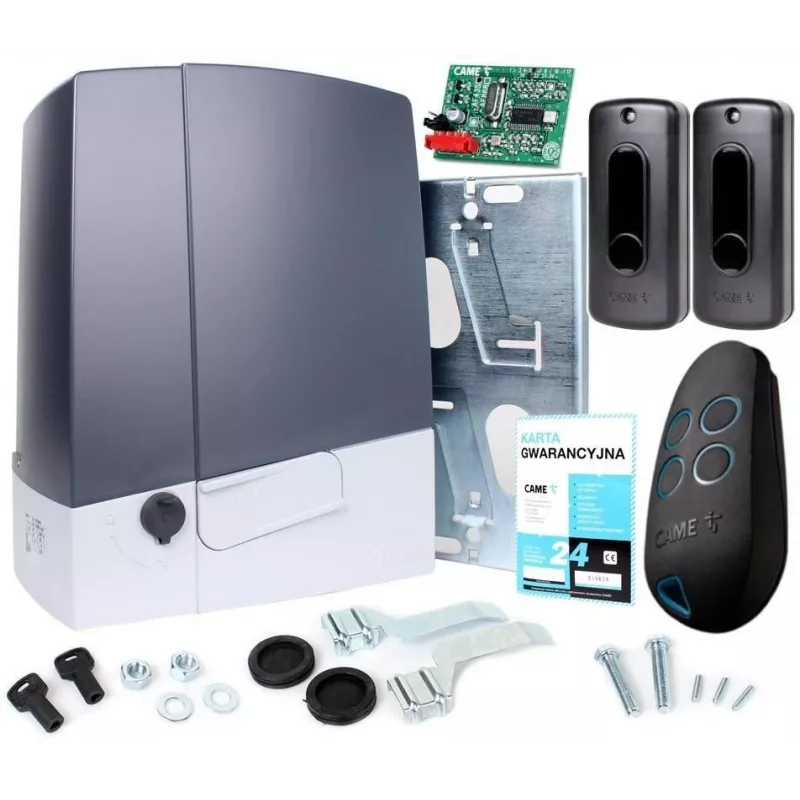

The CAME BXV 10 SAFE ATOMO set is a complete automation solution for sliding gates up to 1000 kg. Designed for intensive use, this kit includes a powerful 24V DC motor with integrated ZN7 control panel, two TOP series remote controls, photocells, flashing light, and antenna. Ideal for residential and commercial applications, it offers advanced safety features and reliable performance.

Advantages

This set provides everything needed for a professional gate automation installation. The 24V DC motor ensures smooth and quiet operation, while the integrated encoder enables precise obstacle detection. Soft start/stop and adjustable sensitivity enhance user comfort and safety. The IP54 protection rating guarantees durability in various weather conditions.

Suitable for

• Residential sliding gates up to 1000 kg
• Commercial and industrial gate automation
• New installations or retrofitting existing gates

Key specifications

• Gate weight capacity: 1000 kg
• Motor power supply: 230V AC (50/60Hz)
• Motor voltage: 24V DC
• Control panel: Integrated ZN7
• Max. gate speed: 12 m/min
• Duty cycle: Intensive use
• Protection rating: IP54
• Operating temperature: -20°C to +55°C
• Encoder: Yes (for obstacle detection)
• Safety features: Obstacle detection, self-diagnosing safety devices
• Remote control frequency: 433.92 MHz
• Included remote controls: 2 x CAME TOP-432EE (or similar TOP series)
• Included photocells: 1 pair CAME DIR series (e.g., DIR-10)
• Included flashing light: 1 x CAME KLED (230V)
• Included antenna: 1 x CAME TOP-A433N
• Motor power consumption: 170 W
• Max. thrust: 300 N
• Material: Aluminium, ABS
• Soft start/stop: Yes (adjustable)
• Obstacle detection sensitivity: Adjustable

Recommendations

For optimal performance, ensure the gate is well-maintained and balanced. Professional installation is recommended to comply with local safety regulations. The set includes all necessary components for a standard installation; additional accessories may be required for specific gate configurations.
