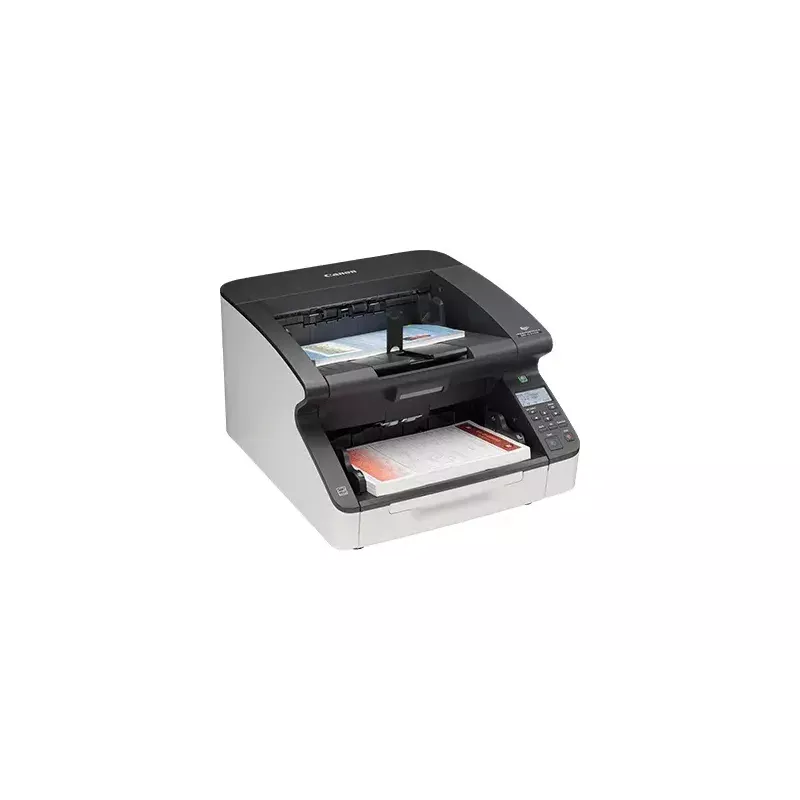

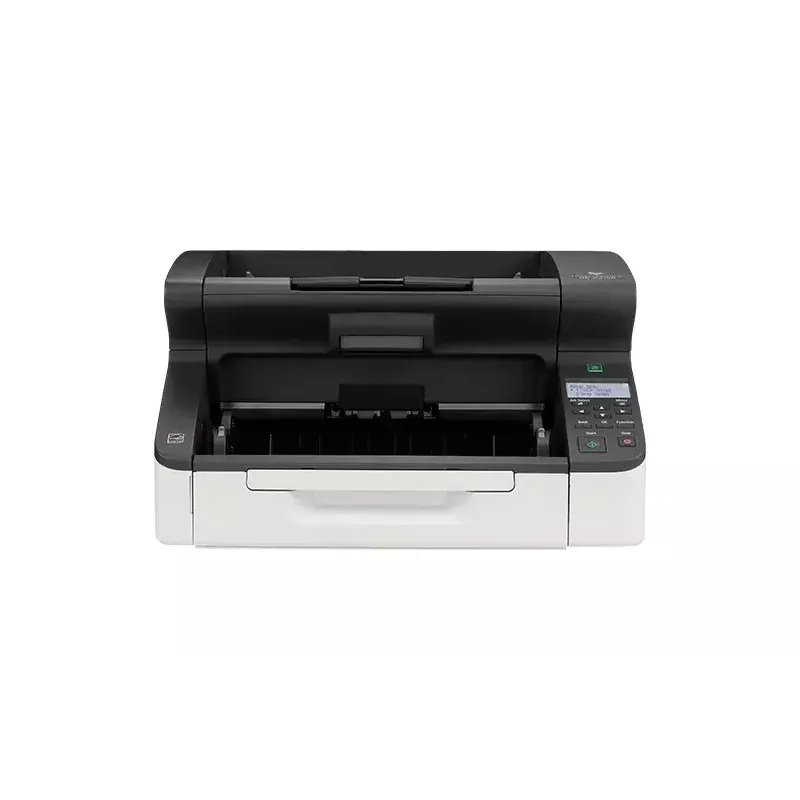

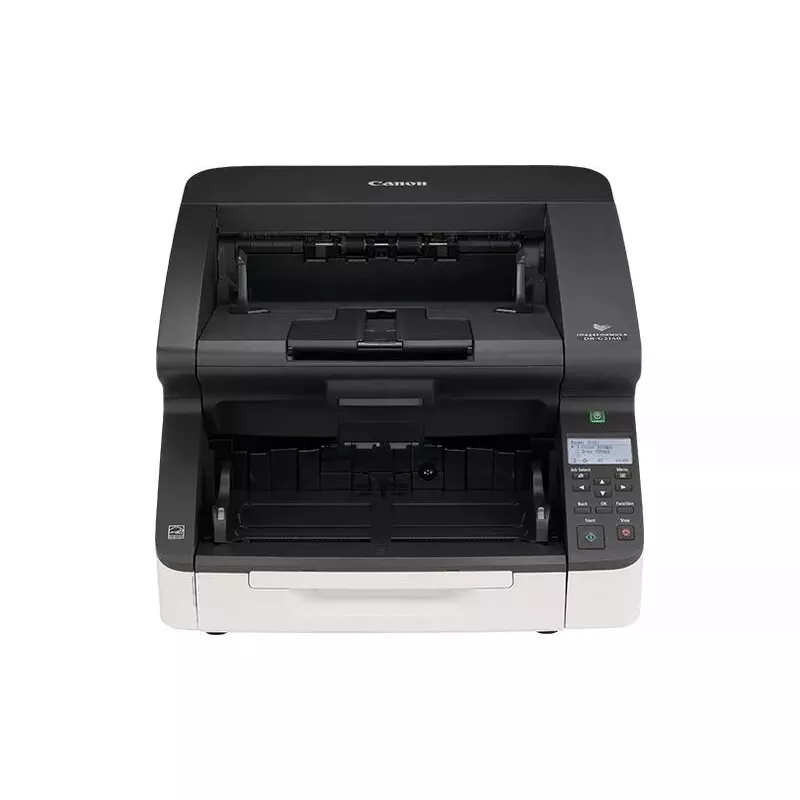

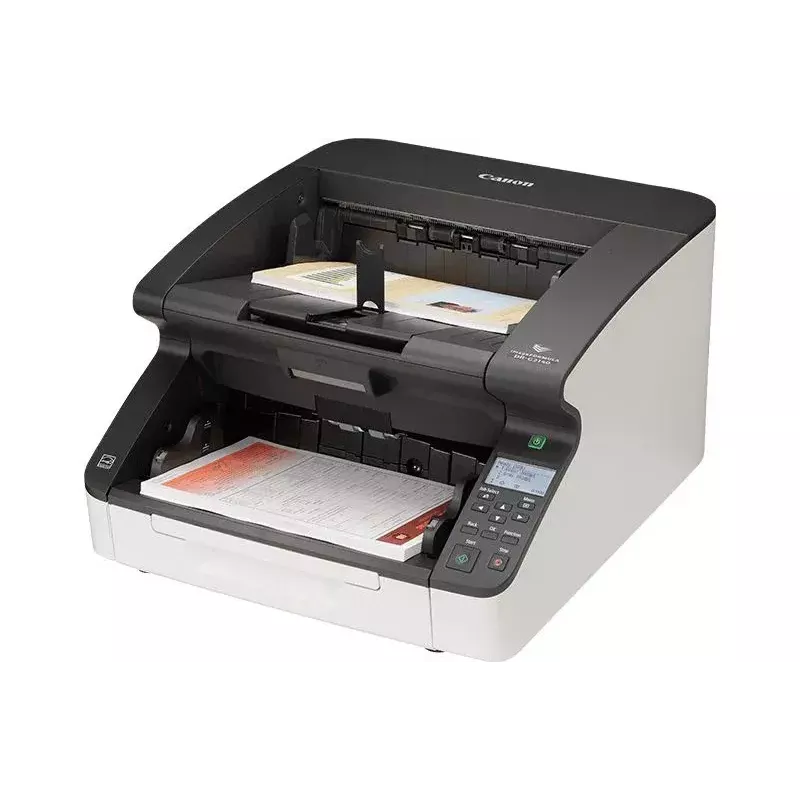

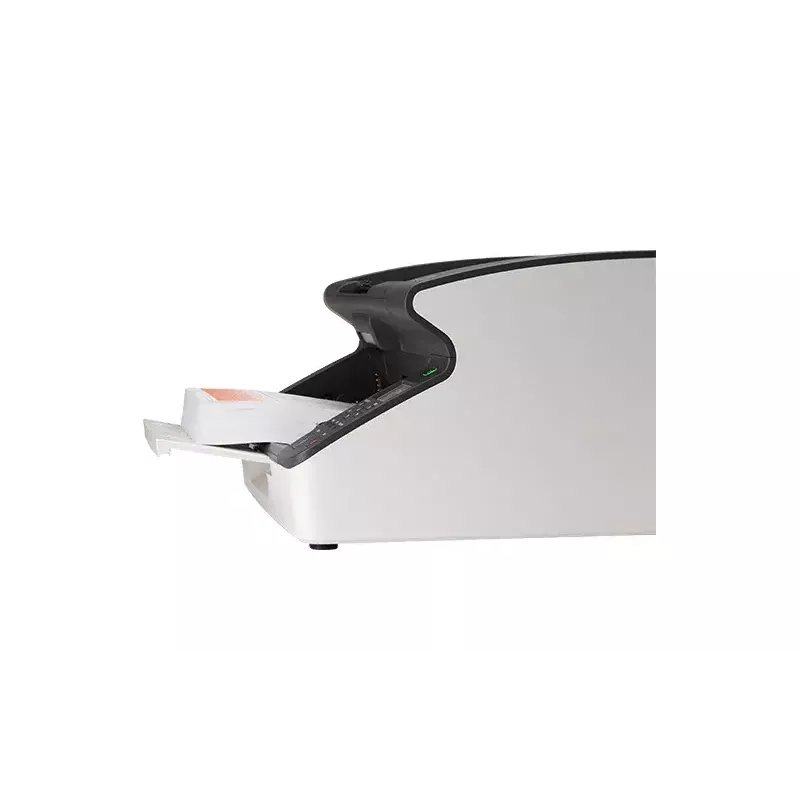

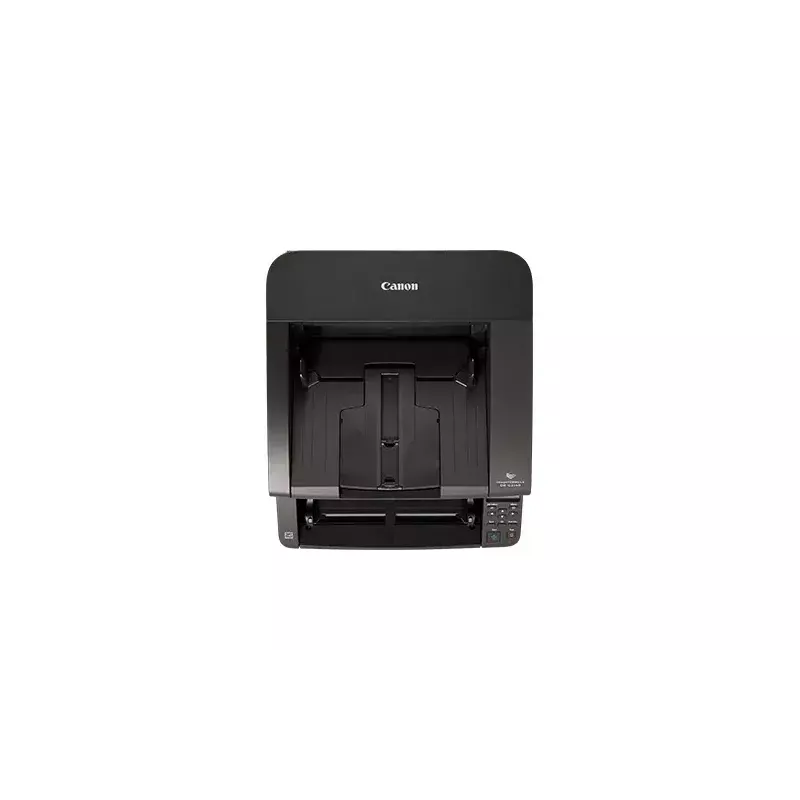

Canon imageFORMULA DR-G2140 scanner di produzione A3 ad alta velocità con rete

The Canon imageFORMULA DR-G2140 is a high-performance sheet-fed scanner designed for production environments that require high-speed throughput and dependable operation. It supports A3 scanning (maximum 305 x 432 mm), offers an optical resolution of 600 x 600 DPI, and features a standard 500-sheet input capacity with a daily duty cycle rated up to 70,000 pages. The scanner accepts media weights from 20 to 209 g/m² and uses an RGB LED light source for consistent image capture.

Advantages

The DR-G2140 delivers ultra-fast scanning performance of up to 280 images per minute, combined with advanced image-processing tools that produce crisp, clear images. Robust feed and transport rollers are built for durability to support heavy daily volumes. Standard interfaces including USB 3.2 Gen 1 and RJ-45 simplify integration into office networks and document workflows.

Suitable for

• High-volume scanning in production or centralised reprographics departments
• Archiving large paper archives and backfile conversion
• Scanning mixed media and A3 documents for corporate records
• Integration into document management systems and networked workflows

Key specifications

• Maximum paper size: A3 (305 x 432 mm)
• Optical resolution: 600 x 600 DPI
• Scanning speed: up to 280 images per minute
• Daily duty cycle: up to 70,000 pages
• Standard input capacity: 500 sheets
• Media weight support: 20–209 g/m²
• Duplex scanning: Yes
• Interfaces: RJ-45, USB 3.2 Gen 1
• Weight: 25 kg
• Light source: RGB LED

How to use

Place documents in the Auto Document Feeder (ADF) up to the specified 500-sheet capacity, select the desired resolution and scan mode on the built-in display or via connected software, then start the scan. Use the duplex mode for two-sided documents to maximize throughput. For mixed media, verify media weight and orientation before scanning. Monitor the network or PC software for job status and scanned file destinations.

Recommendations

For sustained high-volume operation, follow Canon maintenance intervals for cleaning and roller replacement, use recommended media weights (20–209 g/m²), and ensure the scanner is connected to a stable network or PC via USB 3.2 Gen 1 or RJ-45 for optimal performance.
