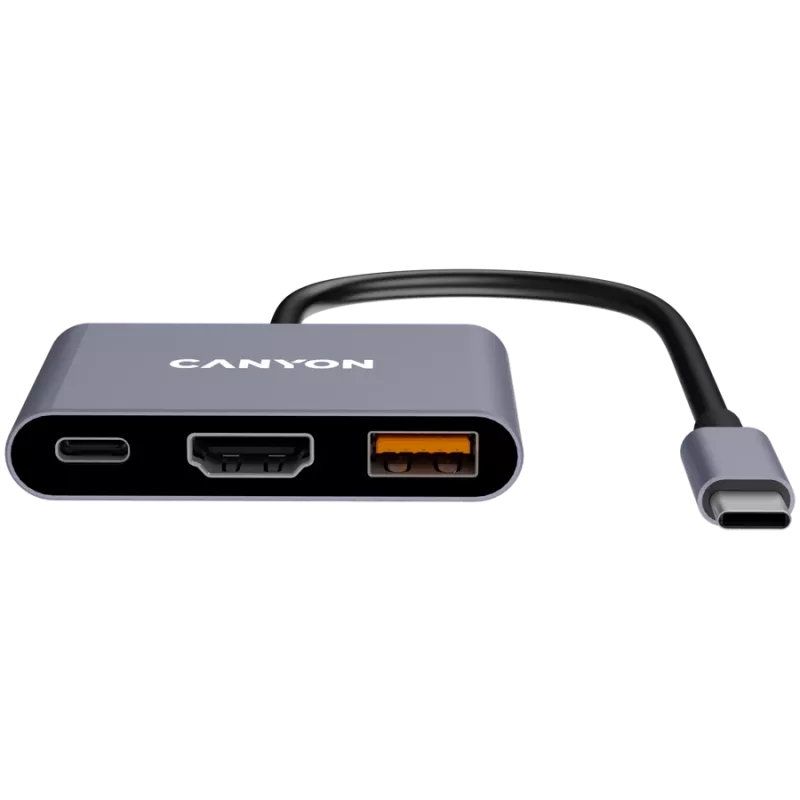

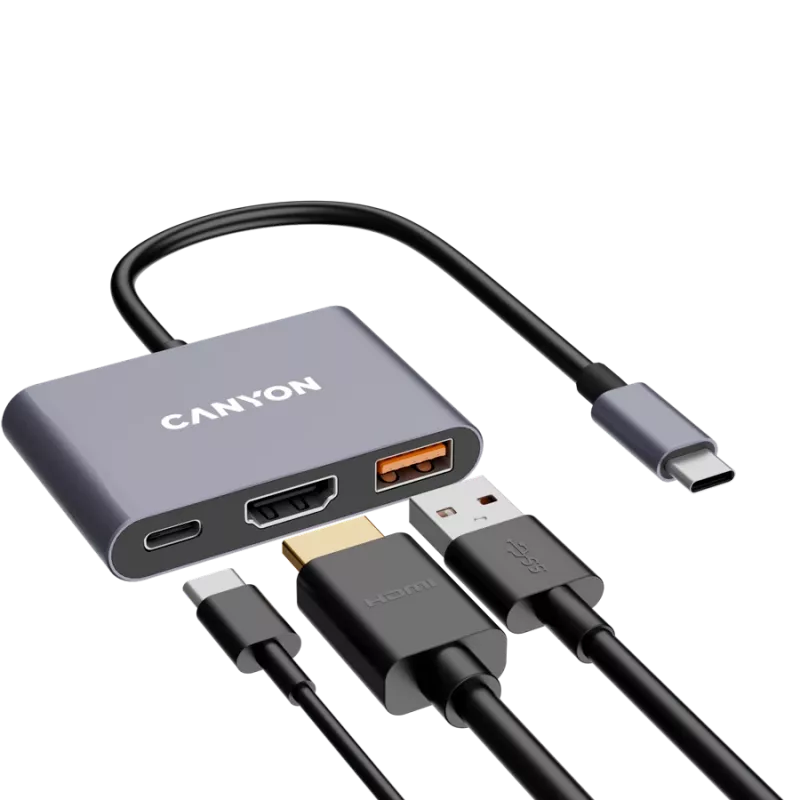

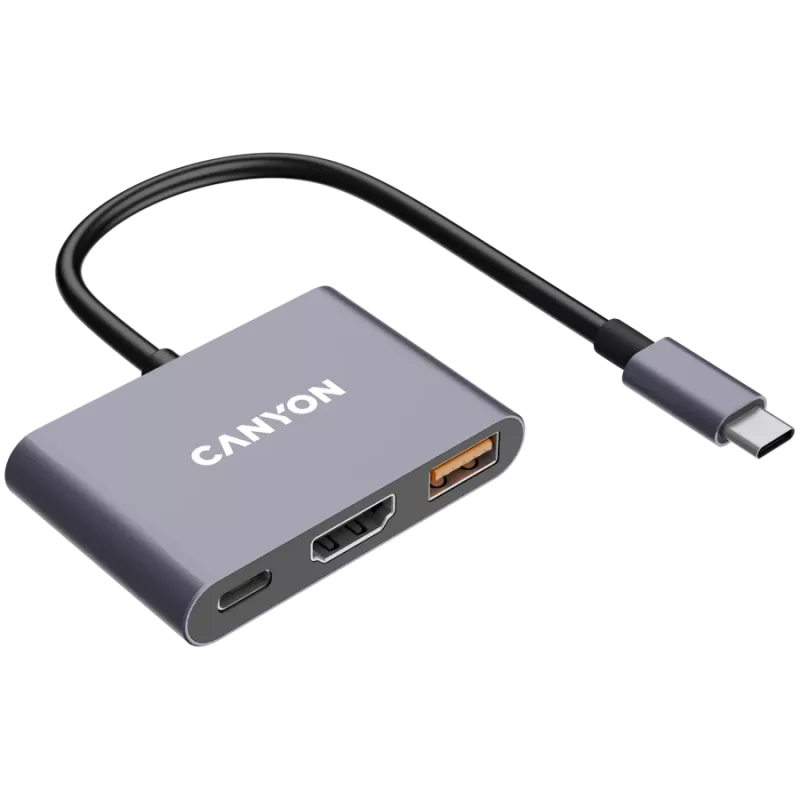

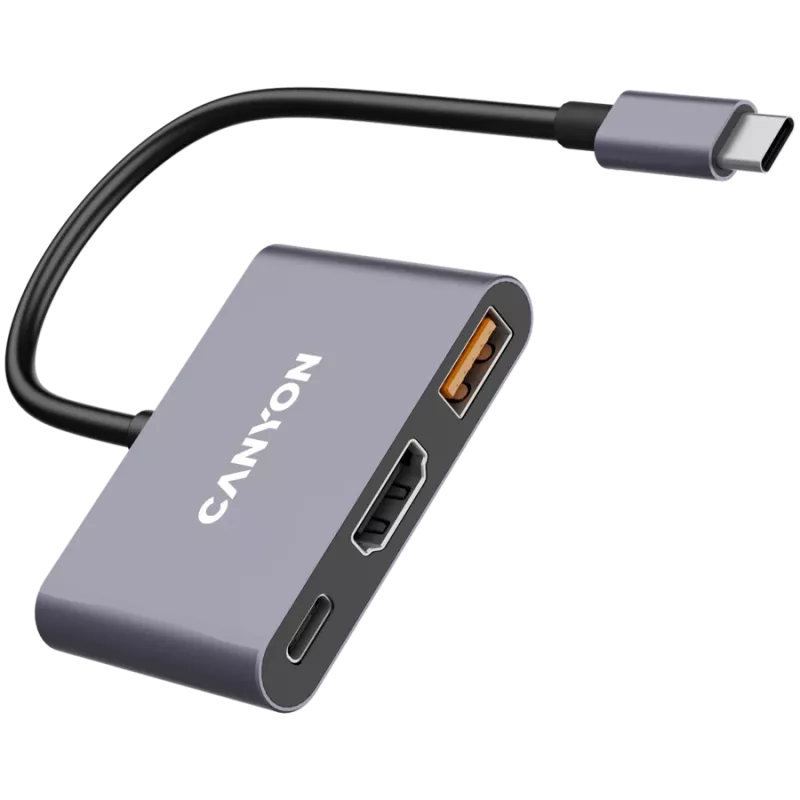

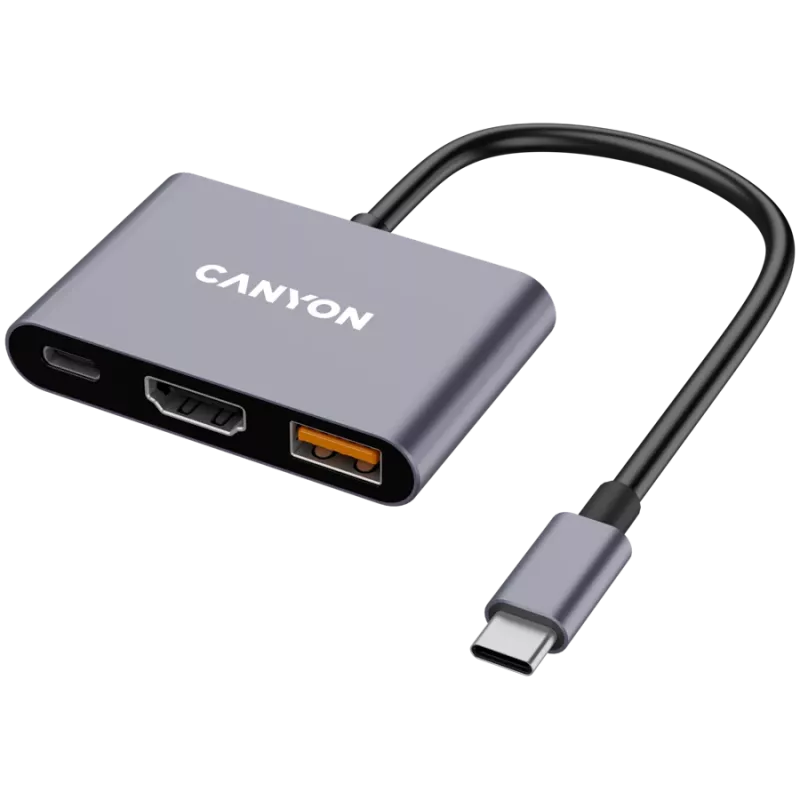

Canyon DS-4 hub USB Type-C 10000 Mbit/s HDMI USB 3.2 Gen 2

The Canyon DS-4 3 Ports USB-C Hub (CNS-TDS4) is a compact multiport adapter that expands a USB Type-C host into HDMI, USB 3.2 Gen 2 Type-A and an additional USB-C port with Power Delivery. The hub supports up to 4K (3840 x 2160) video output at 30 Hz, 10 Gbps data transfer on the USB 3.2 port, and up to 100 W charging, all in a lightweight aluminium enclosure designed for portability.

Advantages

The DS-4 combines 4K HDMI output, high-speed USB 3.2 Gen 2 data transfer and Power Delivery charging in a single plug-and-play dongle. Its aluminium case provides protection and a compact form factor that fits into bags or pockets. Cross-platform compatibility with Windows, macOS and Android means it works without additional drivers on most modern devices.

Suitable for

• Connecting a laptop to an external 4K monitor or TV
• Transferring large files and media at up to 10 Gbps
• Charging a laptop, tablet or smartphone while using peripherals

Key specifications

• Host interface: USB Type-C
• Ports quantity: 3 (HDMI, USB 3.2 Gen 2 Type-A, USB-C input with PD)
• Data transfer rate: up to 10 Gbps (USB 3.2 Gen 2)
• Video output: HDMI up to 3840 x 2160 @ 30 Hz (4K)
• Power Delivery: up to 100 W
• Product colour: Grey
• Weight: 0.0311 kg
• Material: Aluminium case

How to use

Connect the DS-4 to a USB Type-C port on your laptop or compatible device using the built-in Type-C cable. Attach an HDMI cable from the hub to an external monitor or TV to enable video output. Plug USB devices into the USB 3.2 Type-A port for high-speed data transfer. If you need to charge your host device while using the hub, connect a USB-C PD charger to the hub’s Type-C input supporting Power Delivery up to 100 W. The hub is plug-and-play and requires no driver installation on supported operating systems.

Recommendations

For best results, use a certified USB-C PD charger that supports the required wattage for your laptop. When running 4K output and heavy data transfers simultaneously, ensure your host device supports USB-C with DisplayPort Alternate Mode and sufficient power delivery.
