Caricabatterie Einhell CC-BC 10 E 12 V

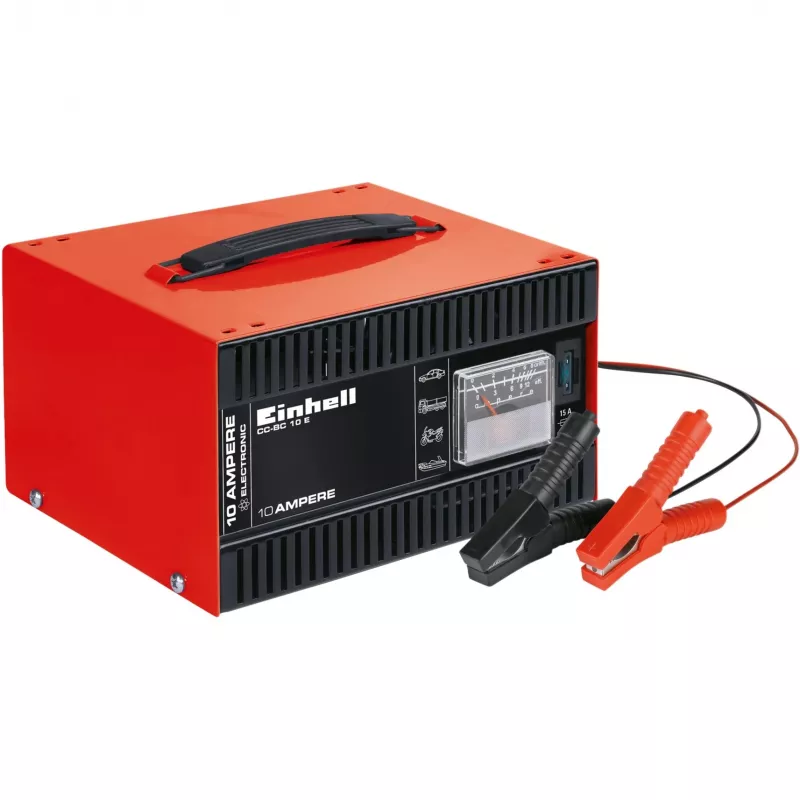

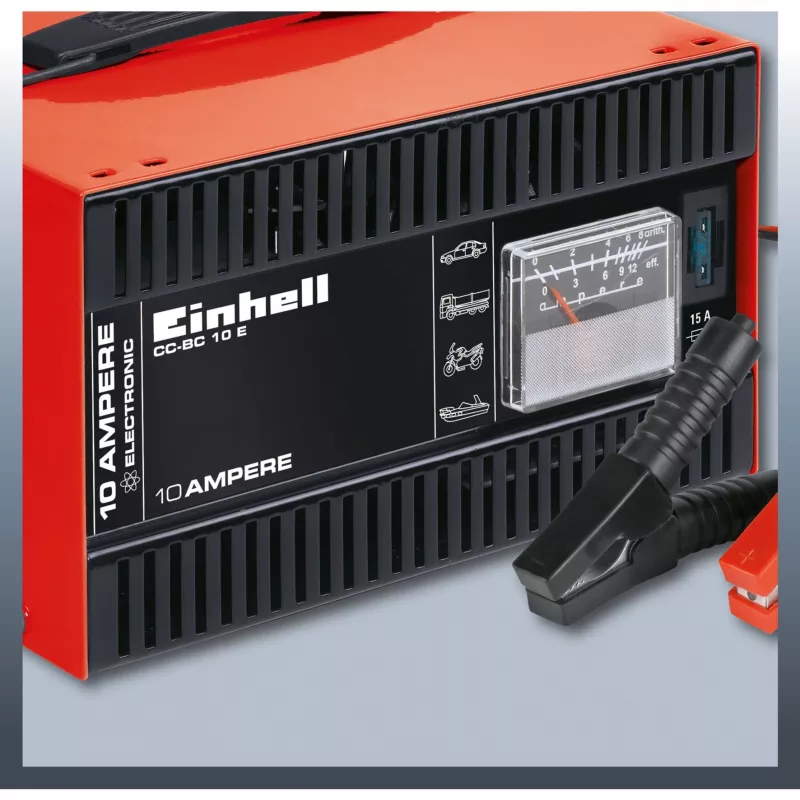

The Einhell CC-BC 10 E 12 V battery charger is an automatic electronic charger designed for charging and maintaining 12 V lead-acid batteries. It features a built-in ammeter for monitoring the charging current, a sheet steel housing, insulated clamps and a convenient carrying handle. The charger limits the charging voltage to a maximum of 14.1 V (WU charging curve) to avoid overcharging, making it suitable for modern maintenance-free batteries and for preserving batteries that are used infrequently.

Advantages

The device provides electronic charge control with overload, reverse-polarity and short-circuit protection. Its all-insulated construction and sturdy pole clamps ensure safe, reliable contact with battery terminals. The built-in ammeter allows the user to read the present charging current directly. A mains cable with a European Type C plug and a robust sheet steel housing add to the stability and practicality of the unit.

Suitable for

• Charging 12 V lead-acid and maintenance-free vehicle batteries
• Maintaining and preserving batteries in vehicles that are used infrequently
• Home garages and workshop use for standard car battery charging tasks

Key specifications

• Model: Einhell CC-BC 10 E
• Nominal voltage: 12 V
• Maximum charge voltage: 14.1 V (WU charging curve)
• Input voltage: AC 230 V

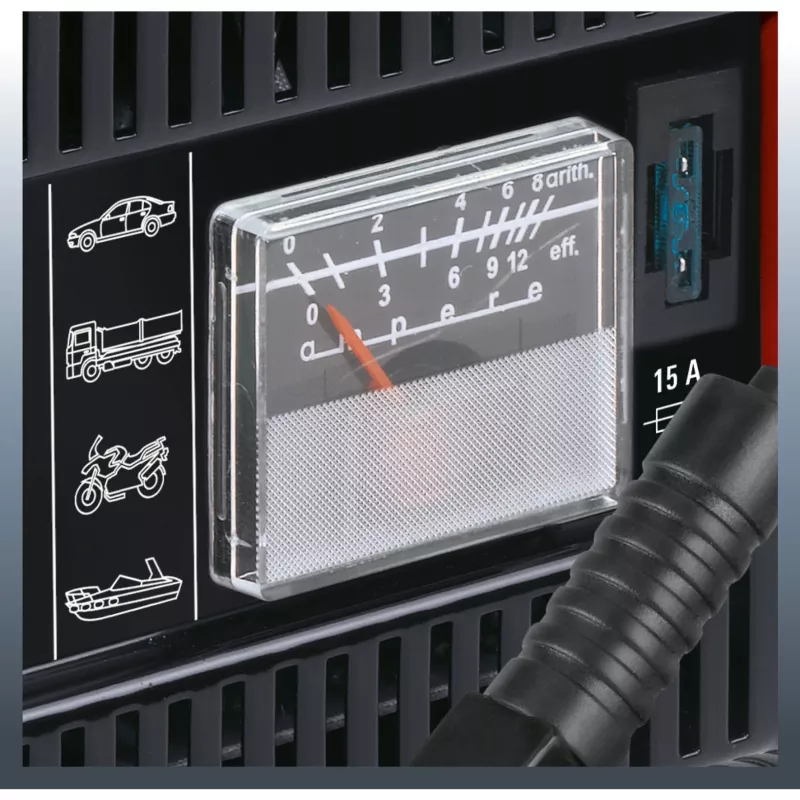

• Built-in ammeter for current indication

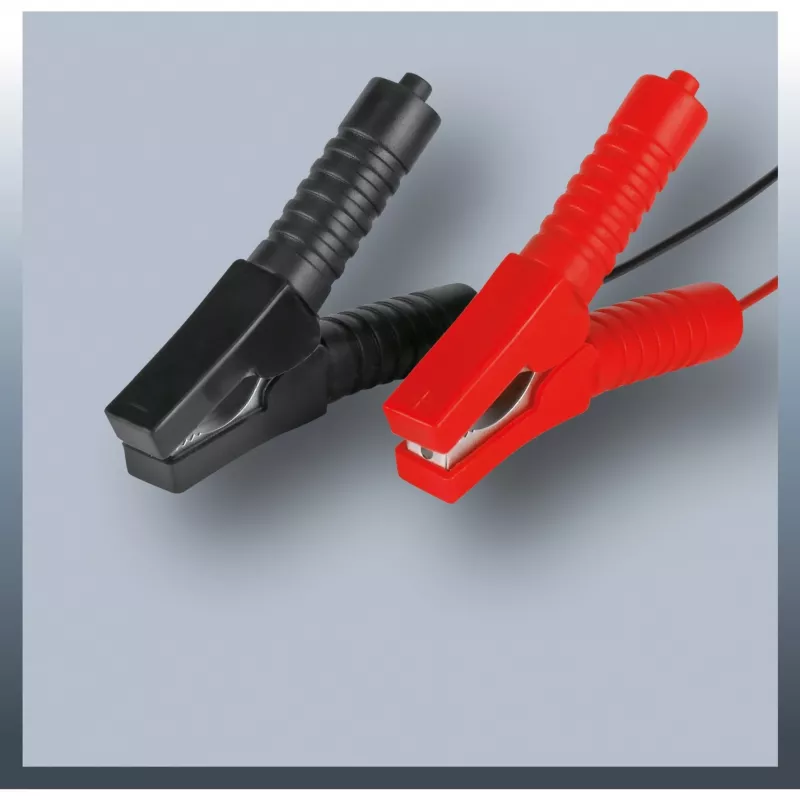

• All-insulated terminal clamps and sheet steel housing
• Power plug: European Type C
• Weight: 2.76 kg; package width 192 mm; depth 212 mm

How to use

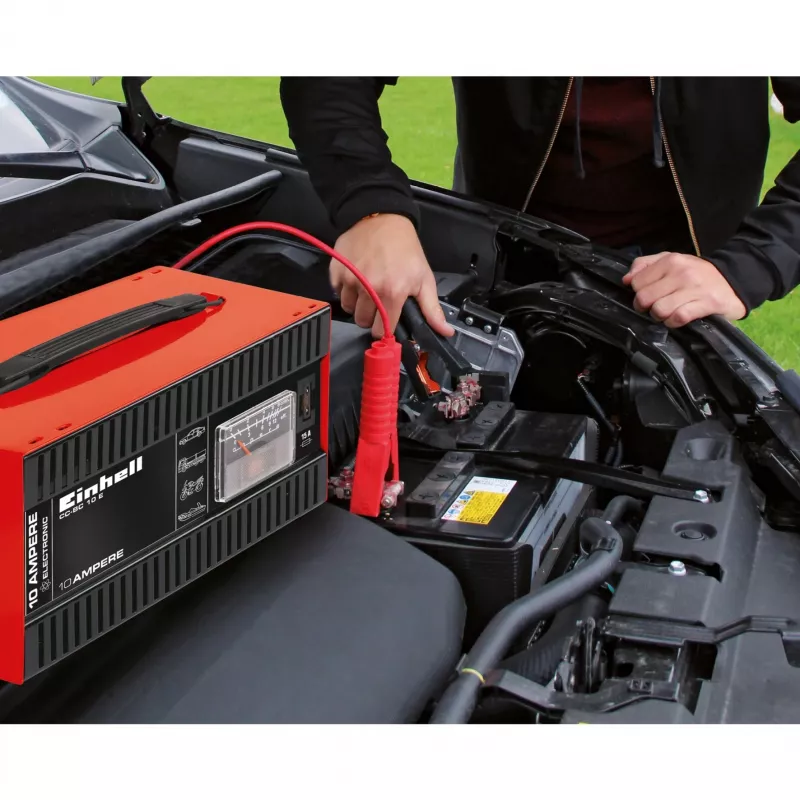

Connect the charger to the mains using the supplied European Type C plug. Attach the all-insulated pole clamps to the battery terminals with correct polarity (positive clamp to battery positive, negative clamp to battery negative). Switch on the charger and monitor the charging current on the built-in ammeter. The electronic control limits the voltage to a maximum of 14.1 V, so the charging process does not require constant supervision. After charging, switch off the charger, disconnect mains, then remove the clamps starting from the negative terminal.

Recommendations

Use the Einhell CC-BC 10 E for 12 V lead-acid and maintenance-free batteries only. Ensure correct polarity when connecting clamps, and use in a well-ventilated area away from sparks or open flames. For long-term battery preservation, periodically check the charge status and follow vehicle or battery manufacturer instructions.
