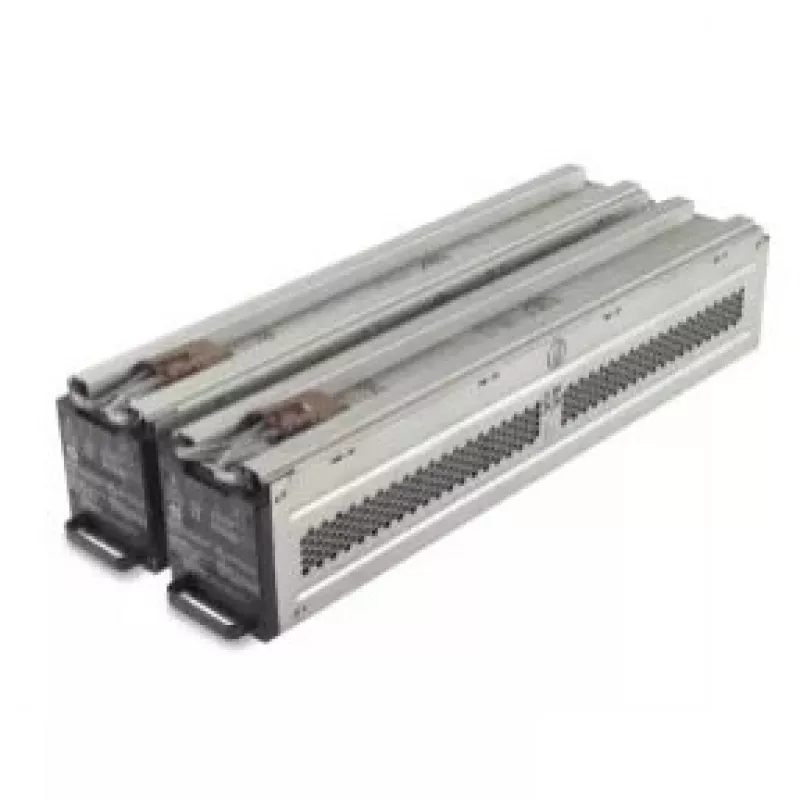

Cartuccia di sostituzione batteria APC APCRBC140

The APC Battery Replacement Cartridge APCRBC140 is a sealed lead acid (VRLA) 192 V replacement cartridge designed for compatible APC UPS models. The cartridge is supplied complete with connectors and replaces the entire old cartridge as a single unit. It is hot-swappable, allowing the user to replace the battery without powering down the UPS or interrupting the connected load. The APCRBC140 is the successor to the RBC44 and is backwards compatible with systems that used that cartridge. The product is RoHS compliant and is covered by a 2-year warranty.

Advantages

Provides a ready-to-install, factory-assembled battery cartridge that simplifies maintenance and reduces downtime. Hot-swap capability ensures continuous operation during replacement. Backwards compatibility with RBC44 simplifies upgrades and inventory management. Designed for sealed lead acid (VRLA) technology to deliver reliable performance in supported APC UPS models.

Suitable for

• Replacement battery cartridge for APC SRT and SURT series UPS models listed for APCRBC140
• Data centres and server rooms requiring uninterrupted power during maintenance
• IT racks and critical infrastructure where hot-swap capability is required

Key specifications

• Battery technology: Sealed Lead Acid (VRLA)
• Voltage: 192 V
• Number of batteries included: 1 pc
• Weight: 34.55 kg
• Package dimensions (L×W×H): 409 × 226 × 781 mm
• Product dimensions (W×H): 197 × 122 mm
• Compliance: RoHS
• Warranty: 2 years

How to use

Ensure the UPS model is listed as compatible with APCRBC140. Follow APC’s service instructions for removing the existing cartridge: place the UPS in service mode if applicable, disconnect any external maintenance bypass per manufacturer guidance, and use the cartridge connectors to remove the old unit. Install the new APCRBC140 by seating it securely and reconnecting its connectors. Verify that the UPS recognizes the new cartridge and return the UPS to normal operation. Dispose of the old battery cartridge according to local regulations for lead-acid batteries.

Recommendations

Store and handle the APCRBC140 in a dry, temperature-controlled environment. Replace cartridges in accordance with the UPS manufacturer’s maintenance schedule and monitor battery health through the UPS management interface to ensure continued reliability.
