Case batteria UPS rack ONLINE USV-Systeme X3000RBP

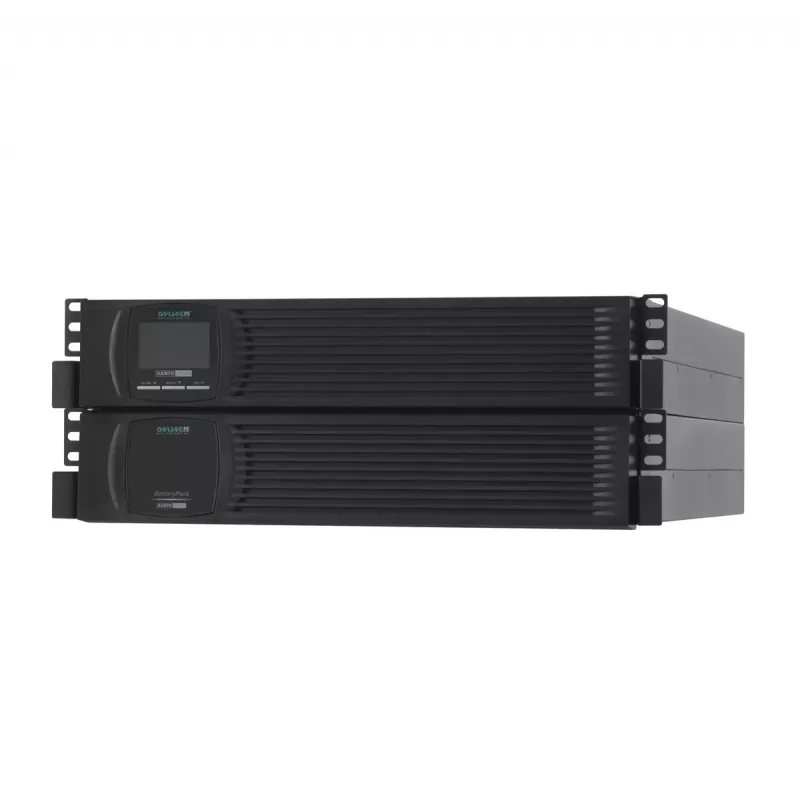

The ONLINE USV-Systeme X3000RBP is a 2U rackmount UPS battery cabinet designed to provide additional runtime and secure power backup for rack-mounted equipment. With a compact footprint (438 mm width, 632 mm depth, 88 mm height) and a 9 Ah battery capacity, this cabinet integrates into standard 19-inch racks and supports environments where space efficiency and predictable battery performance are required. The black finish suits professional data center and server room installations while maintaining a low visual profile.

Advantages

The X3000RBP combines a compact 2U form factor with a dedicated 9 Ah battery to extend backup time without occupying excessive rack space. Its standardized rackmount dimensions simplify installation in existing cabinet systems. The design is focused on accessibility and maintenance, offering a straightforward way to add battery capacity to compatible UPS systems. The cabinet’s build and finish provide a durable solution for continuous operation in controlled IT environments.

Suitable for

• Extending runtime for small to medium UPS systems in server rooms
• Protecting network equipment such as switches, routers and firewalls
• Backup power for storage arrays and SAN components
• Use in telecommunication racks and edge computing cabinets

Key specifications

• Form factor: 2U rackmount cabinet compatible with standard 19-inch racks
• Battery capacity: 9 Ah
• External dimensions (W x D x H): 438 mm x 632 mm x 88 mm
• Color: black
• Intended use: UPS battery expansion and runtime extension

How to use

Install the X3000RBP into a free 2U space in a compatible 19-inch rack following standard rackmount procedures. Connect the cabinet to the host UPS according to the UPS manufacturer’s wiring and safety instructions for battery cabinets. Ensure battery connections are secure and observe polarity markings. After installation, verify the UPS recognizes the additional battery capacity and perform a controlled test to confirm runtime extension and correct operation. Regularly monitor the UPS system for status indicators and alarms related to the external battery cabinet.

Recommendations

Place the battery cabinet in a temperature-controlled environment within the manufacturer’s recommended range, avoid high humidity and direct exposure to heat sources. Allow adequate airflow in the rack and maintain service access for periodic inspections. Follow safety and disposal rules for lead-acid or sealed batteries as specified by the UPS and battery manufacturers.
