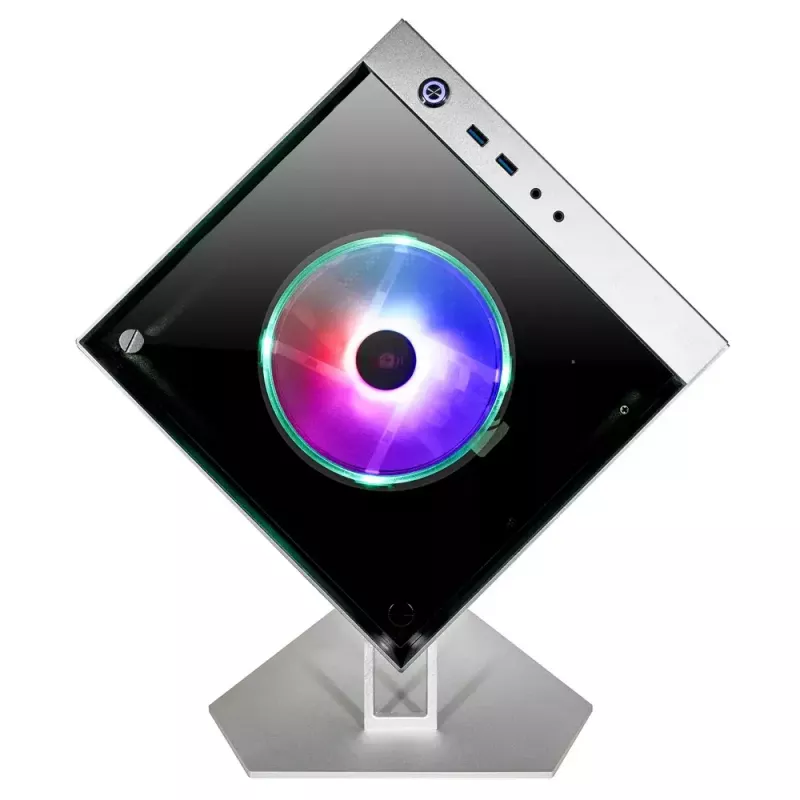

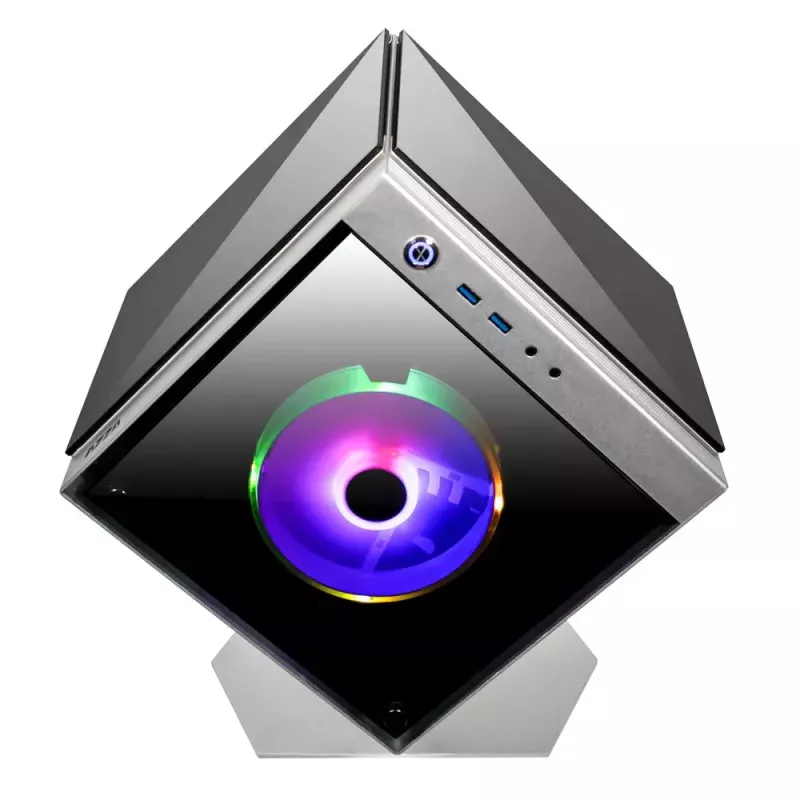

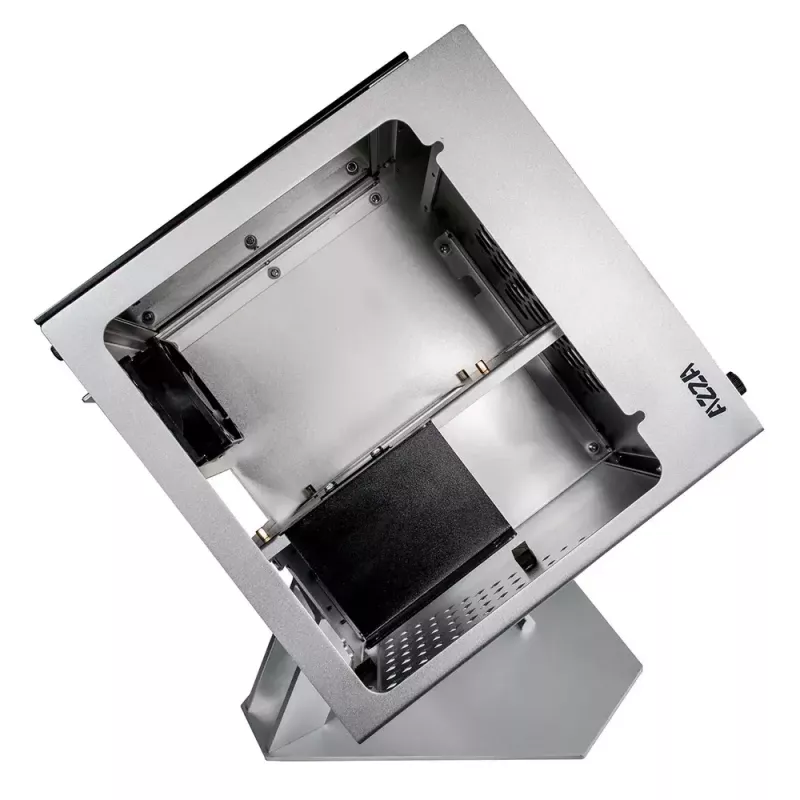

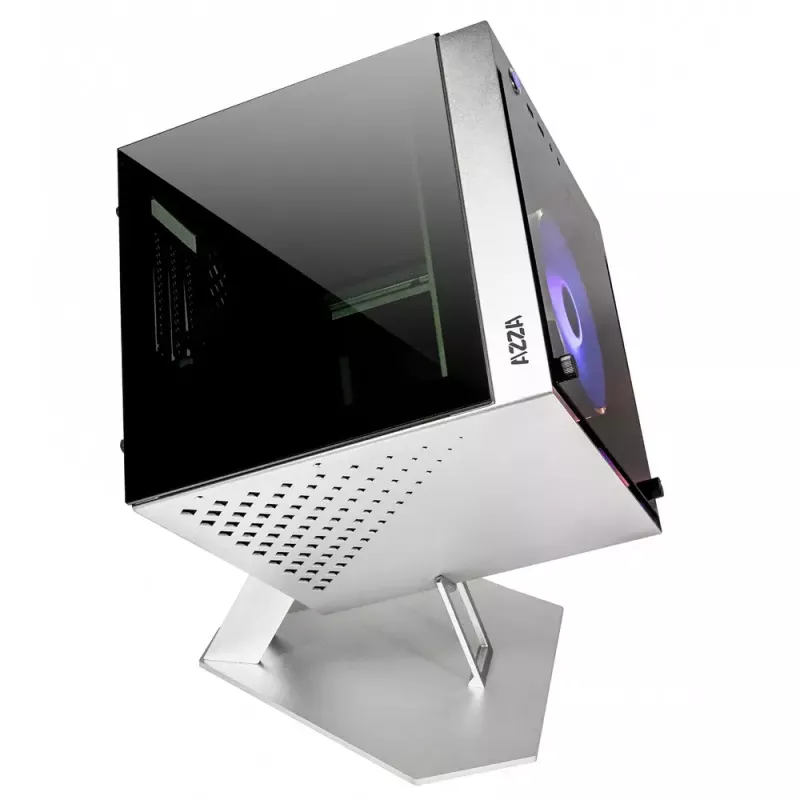

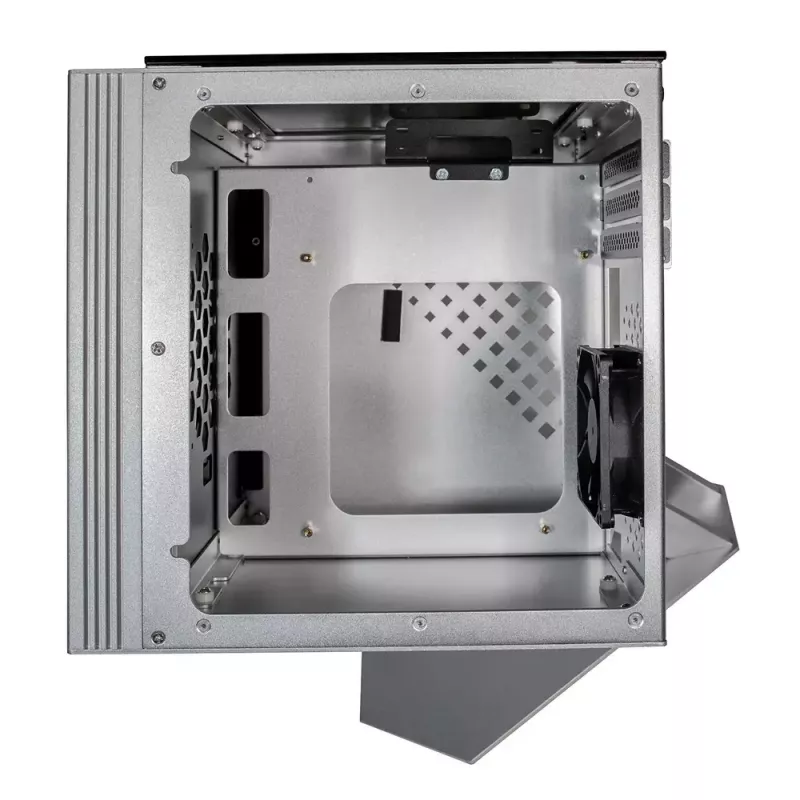

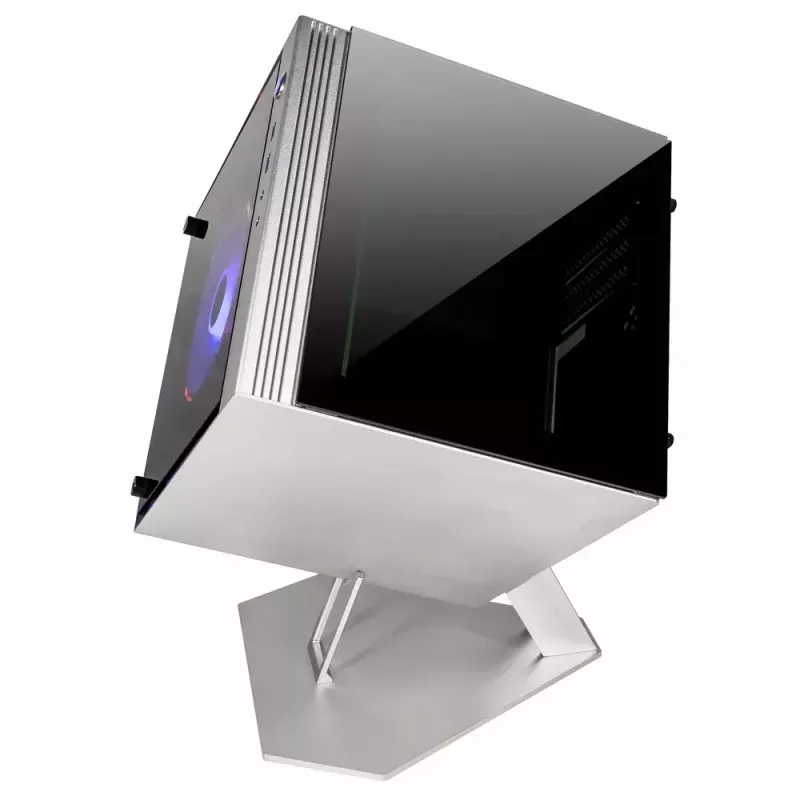

Case PC Azza CUBE MINI 805 Cube argento

The Azza CUBE MINI 805 Cube Silver is a compact cube-style PC case designed for minimalist desktop builds. It supports mini-ITX (Mini-ATX) motherboards and video cards up to 200 mm in length. The case includes two tempered glass side panels for component visibility, a bottom-mounted power supply layout and pre-installed cooling: one 140 mm digital RGB front fan and one 80 mm rear fan. Storage capacity is two 2.5" drives. Front I/O provides two USB 3.2 Gen 1 Type-A ports. Dimensions are approximately 371 mm (W) × 372 mm (D) × 472 mm (H), and the case is finished in silver.

Advantages

The cube form factor maximizes interior space while keeping a small external footprint, allowing a neat, space-saving PC build. Tempered glass side panels offer clear component display. Pre-installed 140 mm digital RGB front fan simplifies initial setup and integrates with compatible motherboard RGB software. Support for up to two 2.5" drives covers SSD or laptop-style HDD storage needs without adding bulk.

Suitable for

• Compact mini-ITX gaming or productivity builds
• Minimalist or space-constrained desks and workstations
• Showcasing components with tempered glass side panels
• Builds that use 2.5" drives (SSDs or laptop HDDs)

Key specifications

• Form factor: Cube
• Supported motherboard: Mini-ITX (Mini-ATX)
• Maximum GPU length: 200 mm
• Drive bays: 2 × 2.5"
• Pre-installed fans: 1 × 140 mm digital RGB (front), 1 × 80 mm (rear)
• Front fan connector: WS2812B-compatible digital RGB (addressable)
• Front I/O: 2 × USB 3.2 Gen 1 Type-A
• Side panels: 2 × tempered glass
• Material: Tempered glass, aluminium
• Colour: Silver
• Approximate dimensions (W × D × H): 371 × 372 × 472 mm
• Weight: 5.4 kg

How to use

Install a mini-ITX motherboard and route cables toward the bottom-mounted PSU area. Fit a graphics card up to 200 mm long and mount up to two 2.5" drives in the dedicated trays or brackets. Connect the pre-installed 140 mm digital RGB fan to a compatible digital RGB (WS2812B) header on the motherboard using the correct connector. Use the rear 80 mm fan header for additional airflow if required. Close the tempered glass panels after verifying cable management and component connections.

Recommendations

Only connect the 140 mm digital RGB fan to a WS2812B-compliant digital RGB header. Do not connect digital RGB devices to standard RGB headers or mix incompatible connectors, as different voltages may damage LEDs. The WS2812B standard supports up to 60 diodes per header; since each fan contains 18 addressable LEDs, do not daisy-chain more than three digital RGB fans on a single header.
