Case PC DeepCool CG530 4F WH Midi Tower bianco

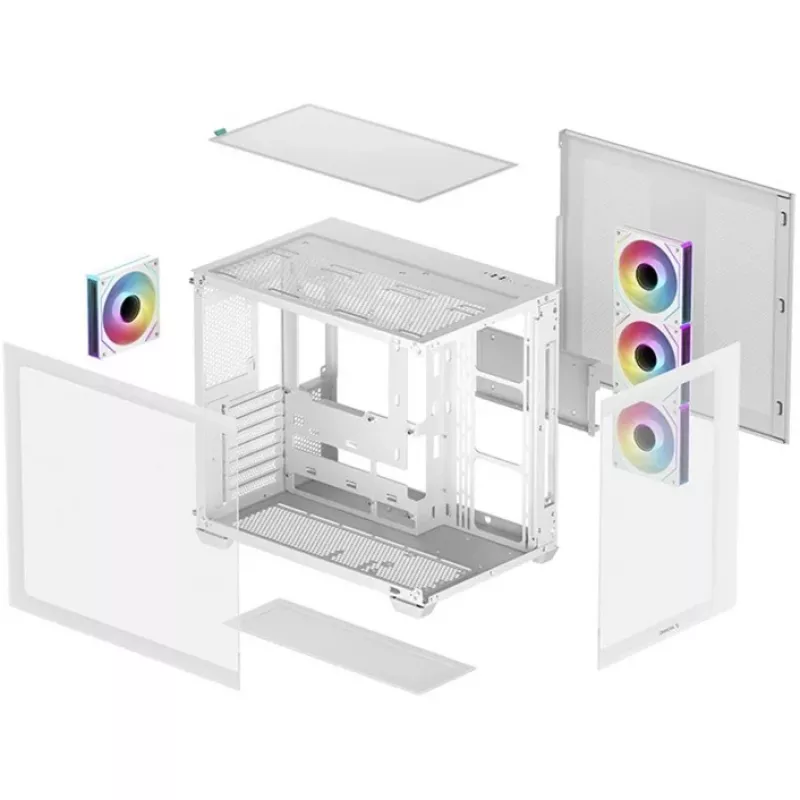

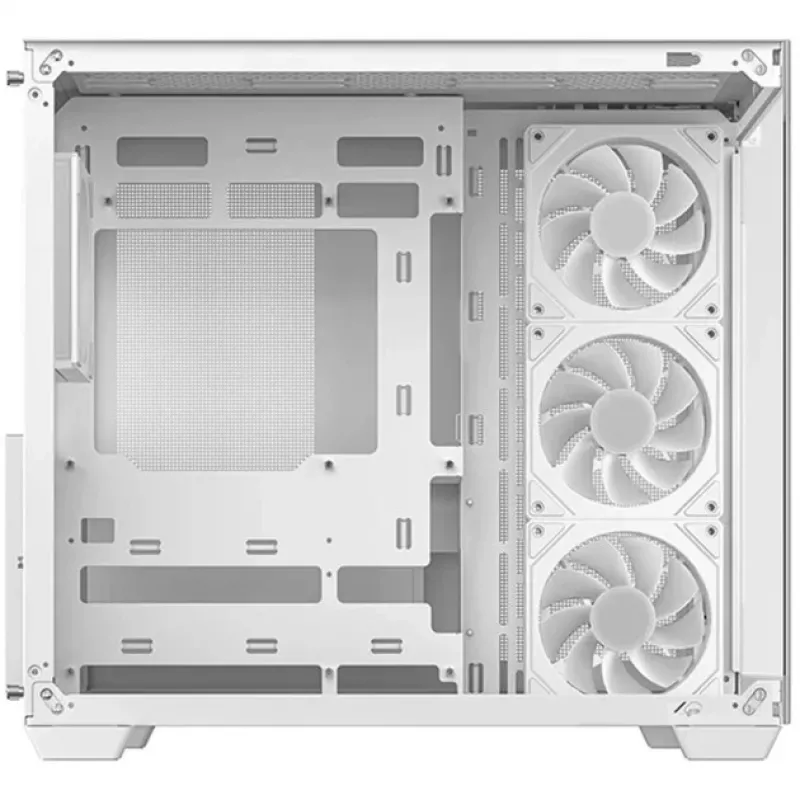

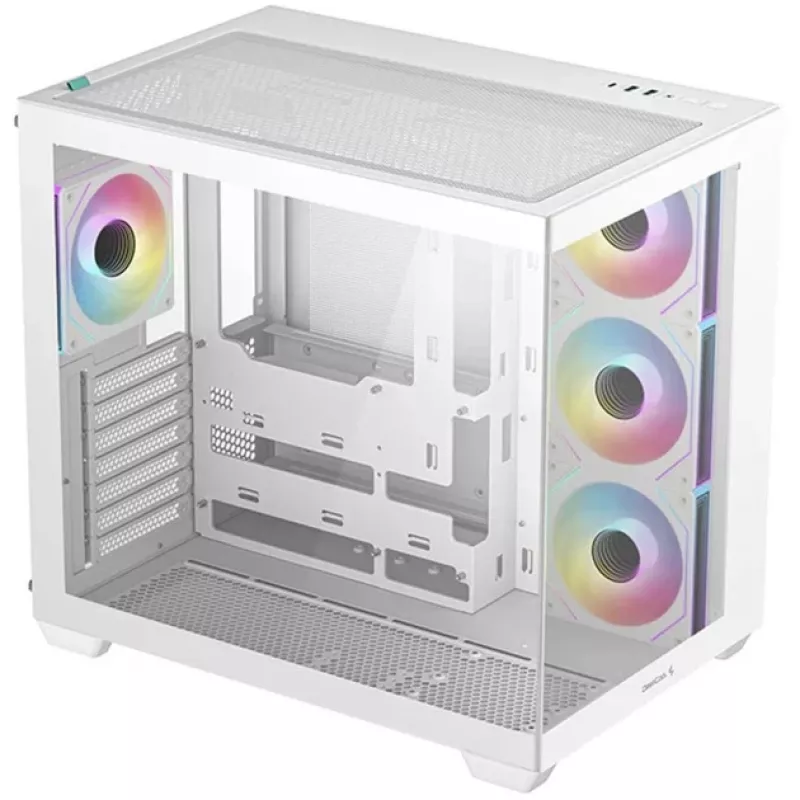

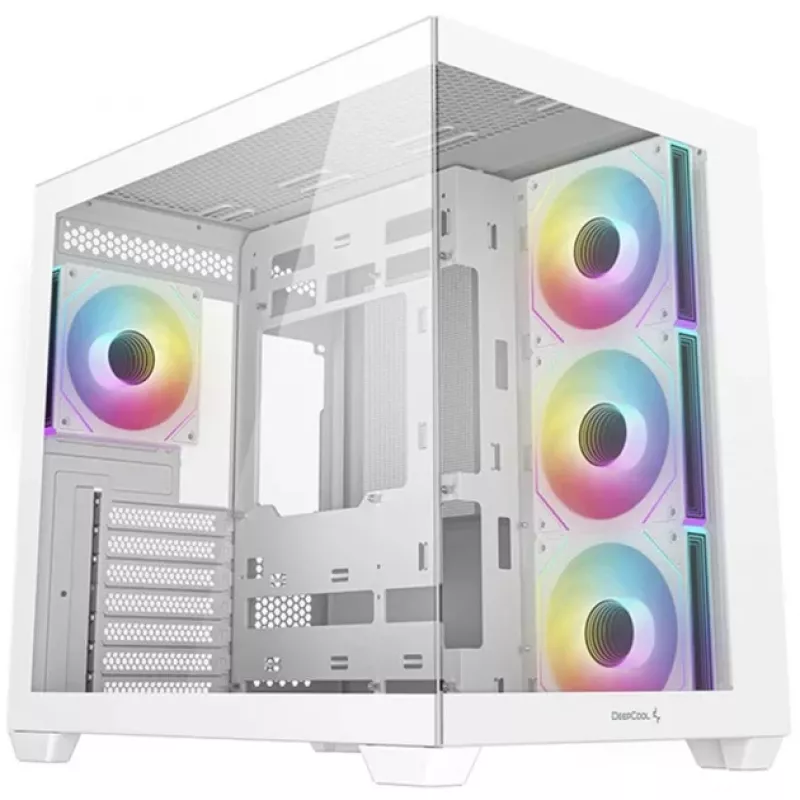

The DeepCool CG530 4F WH is a panoramic ATX midi-tower case with full glass front and side panels for an unobstructed view of internal components. It ships pre-installed with four PWM ARGB fans (three side reverse-flow and one rear), supports ATX, Micro-ATX and ITX motherboards, and accommodates large cooling solutions including up to 360 mm radiators or 160 mm air coolers. The dual-chamber layout separates the PSU and storage into dedicated air channels and supports rear I/O connector motherboards for a tidy internal arrangement.

Advantages

The CG530 4F WH combines wide compatibility with visual clarity: tempered glass panels expose hardware while the dual-chamber design and magnetic filters simplify cooling and maintenance. Pre-installed PWM ARGB fans provide addressable lighting and an airflow-optimized configuration. The case supports long GPUs (up to 410 mm) and a 210 mm PSU, and offers multiple drive bays for mixed 3.5" and 2.5" storage setups.

Suitable for

• Gaming PC builds that prioritize component display and ARGB lighting
• High-performance systems requiring strong airflow and radiator support
• Compact ATX, Micro-ATX or ITX builds with multiple storage drives
• Users who value easy cable management and dust filtering

Key specifications

• Form factor: Midi Tower (ATX, Micro-ATX, ITX)
• Pre-installed fans: 4 x PWM ARGB (3 side 120 mm reverse-flow, 1 rear 120 mm)
• Cooling support: up to 360 mm radiator, CPU cooler height up to 160 mm
• Maximum GPU length: 410 mm; PSU length support: 210 mm
• Drive bays: 2 x 3.5" + 3 x 2.5" (configurable)
• Front/side panels: tempered glass; chassis materials: ABS, SPCC
• I/O ports: 2 x USB 3.0 (Type-A), 1 x USB Type-C, 2-in-1 audio
• Dimensions (W x D x H): 285 x 440 x 399 mm

How to use

Install a compatible ATX, Micro-ATX or ITX motherboard and mount the PSU and drives in the designated dual-chamber areas. Fit the GPU and cooling components within the stated clearance limits. Connect the pre-installed PWM ARGB fans to the motherboard or controller using the provided headers to enable lighting and fan speed control. Use the magnetic top and bottom dust filters for routine cleaning to maintain airflow.

Recommendations

For best thermal performance, combine the included side reverse-flow fans with a front or top radiator (up to 360 mm where supported), and route cables through the 45 mm backplane space to preserve unobstructed airflow. Clean magnetic filters regularly to prevent dust buildup.
