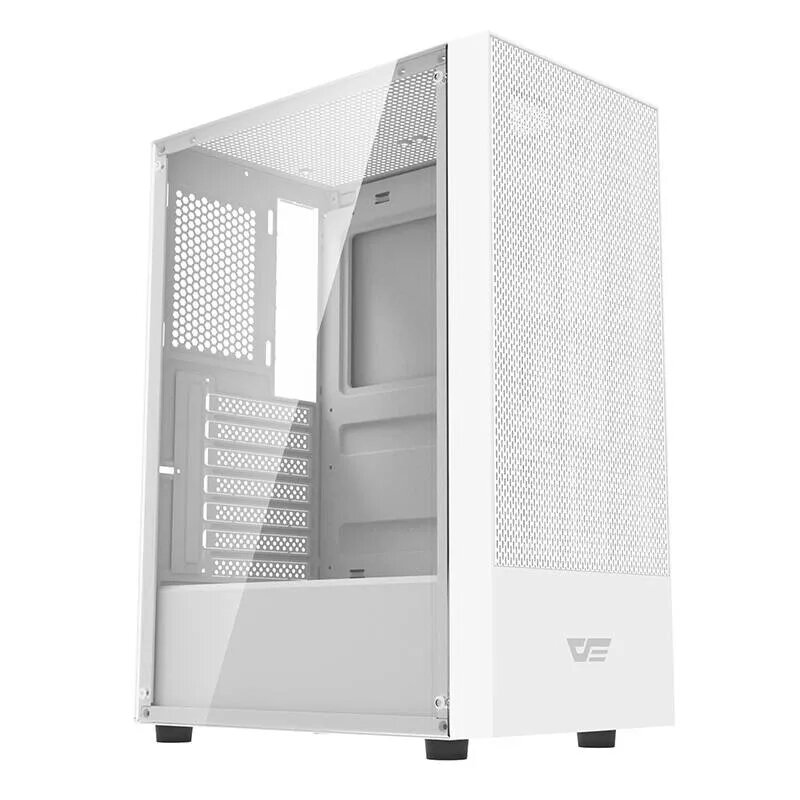

Case per computer Darkflash A290 ATX bianco

The Darkflash A290 ATX computer case in white is a mid-tower chassis designed for desktop PC builds. It supports ATX, micro-ATX and mini-ITX motherboards and offers a tempered glass side panel to showcase components. The case provides room for a graphics card up to 260 mm long, CPU coolers up to 160 mm high, and space for one 3.5" HDD and one 2.5" SSD. The front I/O includes USB 3.0, two USB 2.0 ports and a headphone/speaker output, and the chassis accepts a bottom-mounted ATX power supply.

Advantages

The A290 combines a tempered glass side panel with a compact white mid-tower layout that supports multiple motherboard sizes. Its design allows installation of up to five 120 mm fans or a 240 mm radiator, and it includes dust filters for easier maintenance. The case features seven expansion slots, standard front I/O ports and tool-accessible mounting points for drives and motherboard standoffs, enabling straightforward assembly and upgrades.

Suitable for

• Home and office desktop builds using ATX, M-ATX or ITX motherboards
• Gaming systems requiring up to 260 mm GPU length and custom air or liquid cooling
• Compact workstation builds with one HDD and one SSD

Key specifications

• Manufacturer: Darkflash
• Model: A290 (White)
• Type: Mid Tower
• Side panel: Tempered glass
• Supported motherboard standards: ATX, M-ATX, ITX
• Power supply: Bottom ATX PSU
• Internal drive bays: HDD x1, SSD x1 (2.5" x1)

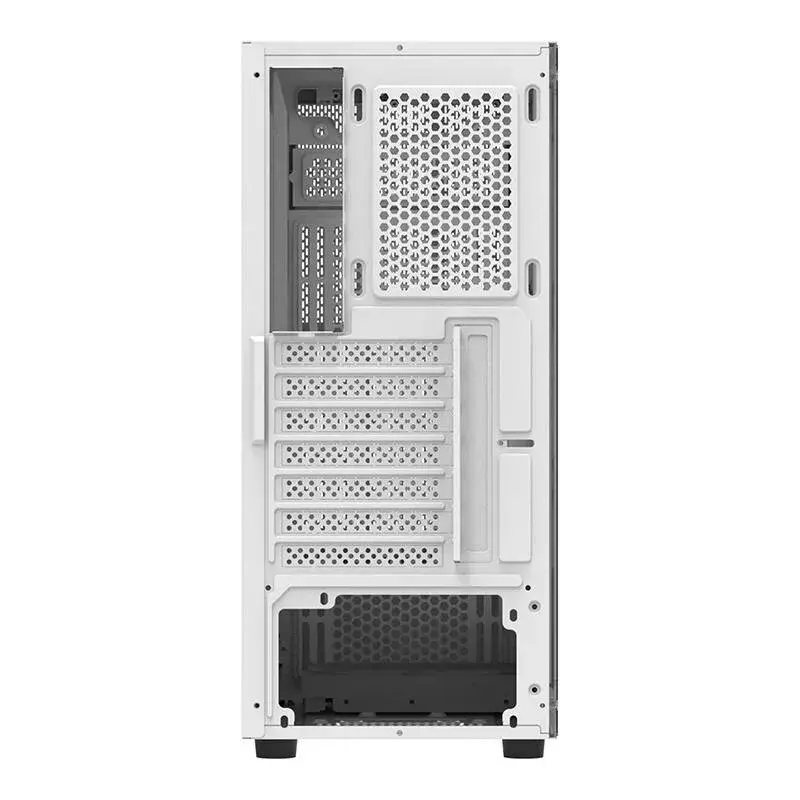

• Expansion slots: 7
• Maximum GPU length: 260 mm
• Maximum CPU cooler height: 160 mm
• Maximum fans: 5 x 120 mm (Front 2, Top 2, Side 1)
• Water cooling support: Front up to 240 mm, Rear 120 mm, Top 240 mm
• Front I/O: USB 3.0 x1, USB 2.0 x2, Headphone/speaker output
• Material: 0.5 mm SPCC
• Color: White
• Dimensions (H×W×D): 433 × 190 × 320 mm

How to use

Install the appropriate motherboard standoffs and secure the motherboard with the provided screws. Mount the power supply in the bottom ATX position, install storage drives in the dedicated 3.5" and 2.5" bays, and fit the graphics card into the PCIe expansion slots. Plan fan or radiator placement before installing components to ensure unobstructed airflow; the case supports up to five 120 mm fans and various radiator configurations. Connect front-panel I/O cables (USB, audio, power/reset) to the motherboard headers during assembly.

Recommendations

For effective cooling, use a combination of front intake and top/rear exhaust fans and keep the removable dust filters clean. If you plan to use high-performance components, check GPU and cooler dimensions against the stated maximums (260 mm GPU length, 160 mm CPU cooler height) before purchase. The case is shipped without preinstalled fans, allowing custom fan selection to match your noise and airflow preferences.
