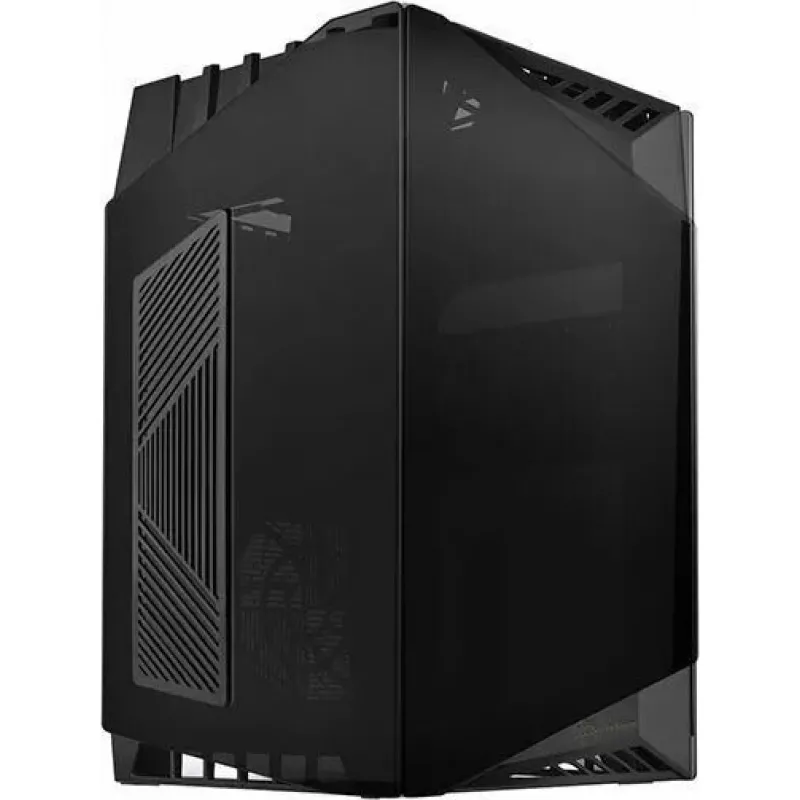

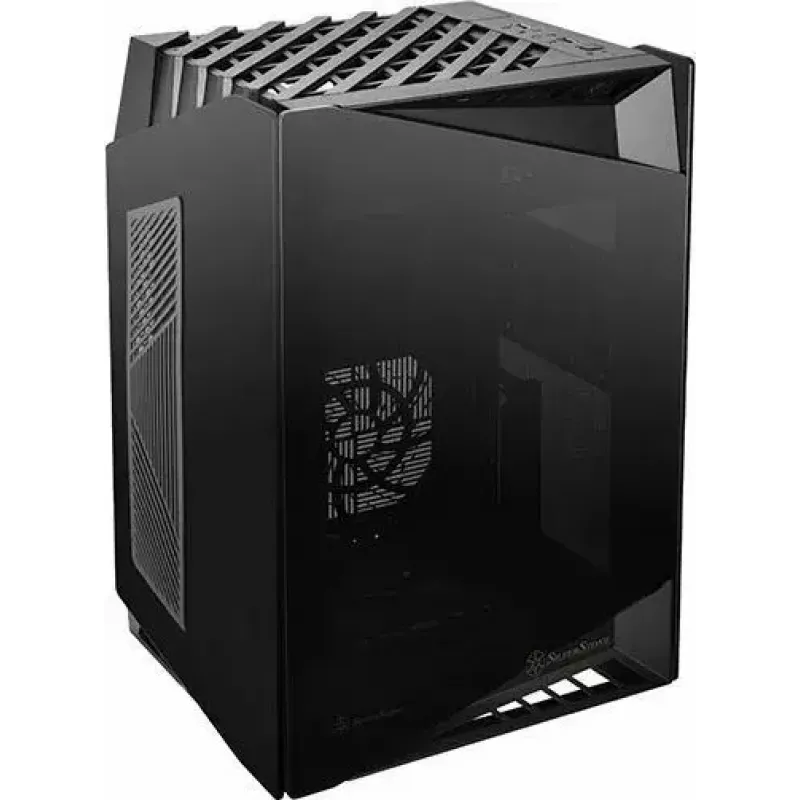

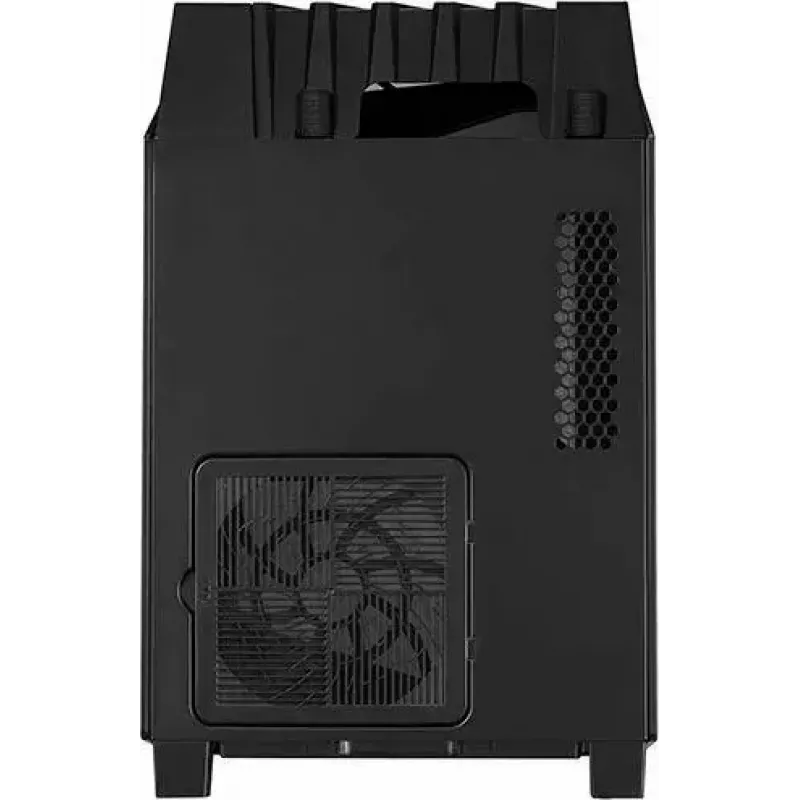

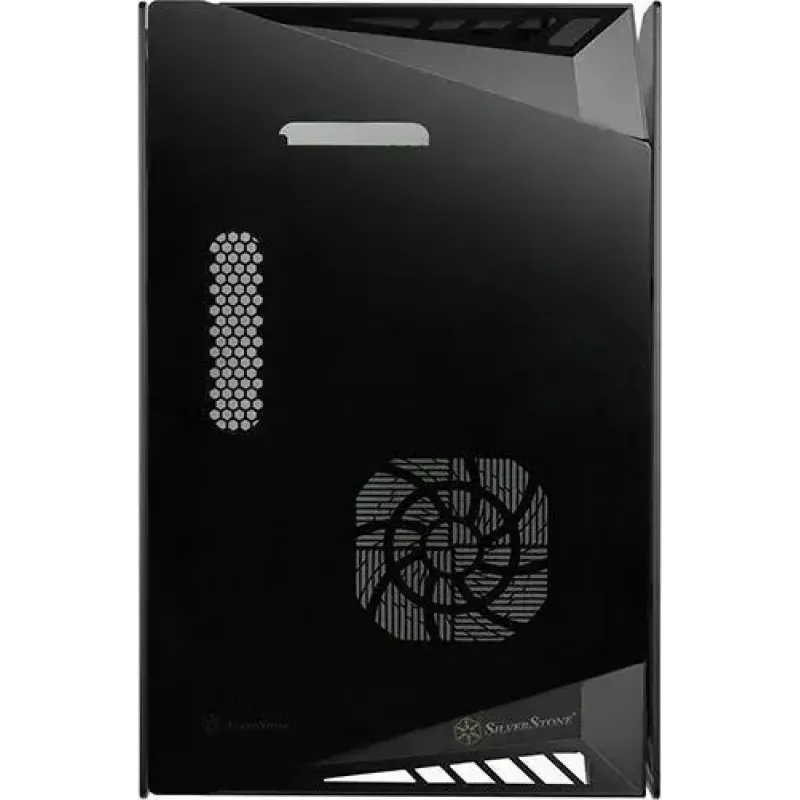

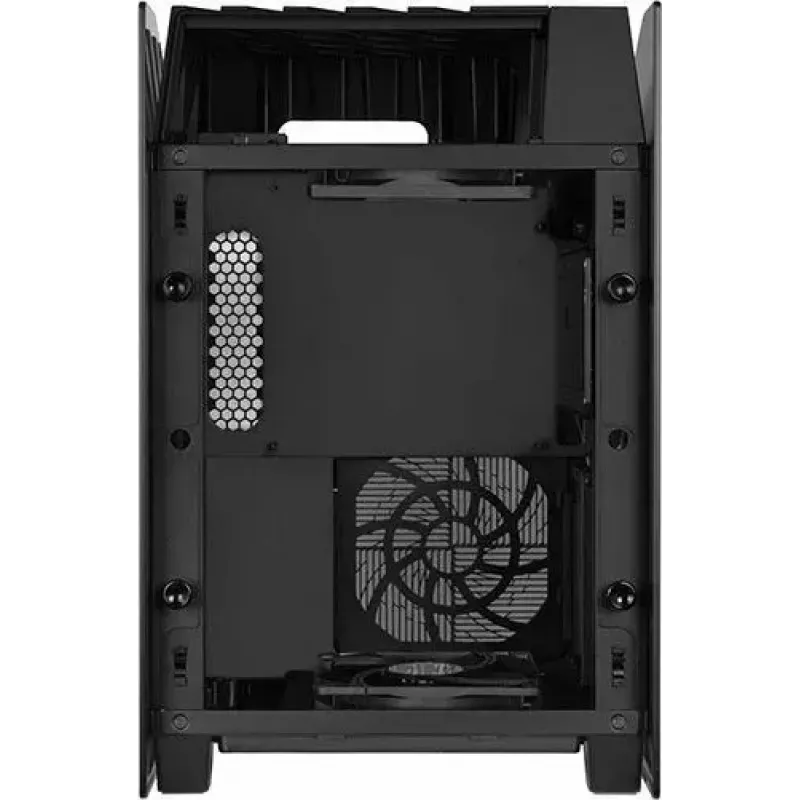

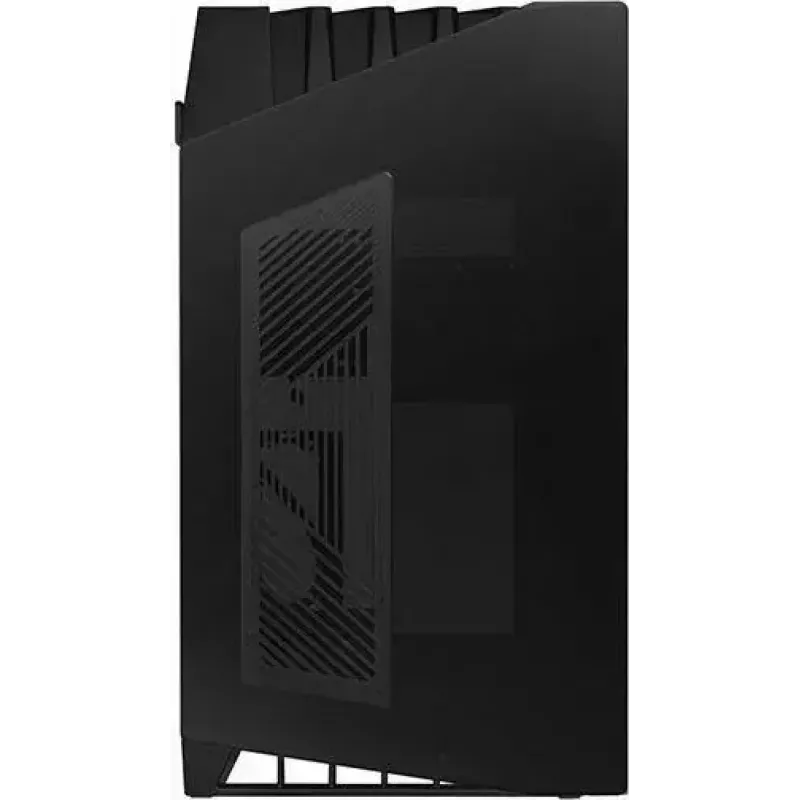

Case per computer SilverStone SST-LD03B-AF Mini-ITX nero

SilverStone SST-LD03B-AF Mini-ITX Black is a compact desktop chassis designed for small-form-factor builds that require tempered glass aesthetics and practical internal layout. The case measures 240 x 240 x 350 mm and supports Mini-ITX motherboards while accommodating an ATX power supply. Internal drive bays accept both 2.5" and 3.5" storage devices. The design allows installation of up to four cooling fans and supports a 240 mm radiator for liquid cooling, offering a balance of cooling potential and space efficiency.

Advantages

The chassis combines a tempered glass side panel with a compact footprint to provide a visually clean appearance without sacrificing component compatibility. Support for an ATX power supply simplifies power choices and the internal layout permits multiple storage formats. Cooling flexibility includes mounting points for up to four fans and a 240 mm radiator, enabling efficient airflow and liquid cooling options in a small case volume.

Suitable for

• Compact gaming or workstation builds using Mini-ITX motherboards
• Home theater PC (HTPC) systems where a small footprint and tempered glass are desired
• Systems requiring both 2.5" SSDs and 3.5" hard drives for mixed storage
• Builds that use an ATX power supply rather than SFX units

Key specifications

• Form factor: Mini-ITX chassis
• External dimensions: 240 x 240 x 350 mm
• Side panel: tempered glass
• Power supply compatibility: ATX
• Cooling support: up to 4 fans and up to 240 mm radiator
• Storage bays: supports 2.5" and 3.5" drives

How to use

Install a Mini-ITX motherboard according to the motherboard standoffs and secure an ATX power supply in the designated compartment. Mount storage devices in the provided 2.5" or 3.5" locations and route power and data cables to optimize airflow. Position up to four case fans in the supported mounting points or install a 240 mm radiator in the compatible location for liquid cooling; ensure radiator thickness and component clearances are checked before installation. After assembling components, close the tempered glass panel and verify cable management does not obstruct fans or airflow paths.

Recommendations

For improved airflow in compact builds, use a combination of intake and exhaust fans and choose low-profile CPU coolers or slim radiators when space is limited. When installing a 240 mm radiator, confirm clearance with memory modules and any tall VRM heatsinks; use shorter cables or modular power supply cables to maintain tidy internal routing.
