Case per server Inter-Tech 4U 4452-TFT rack nero

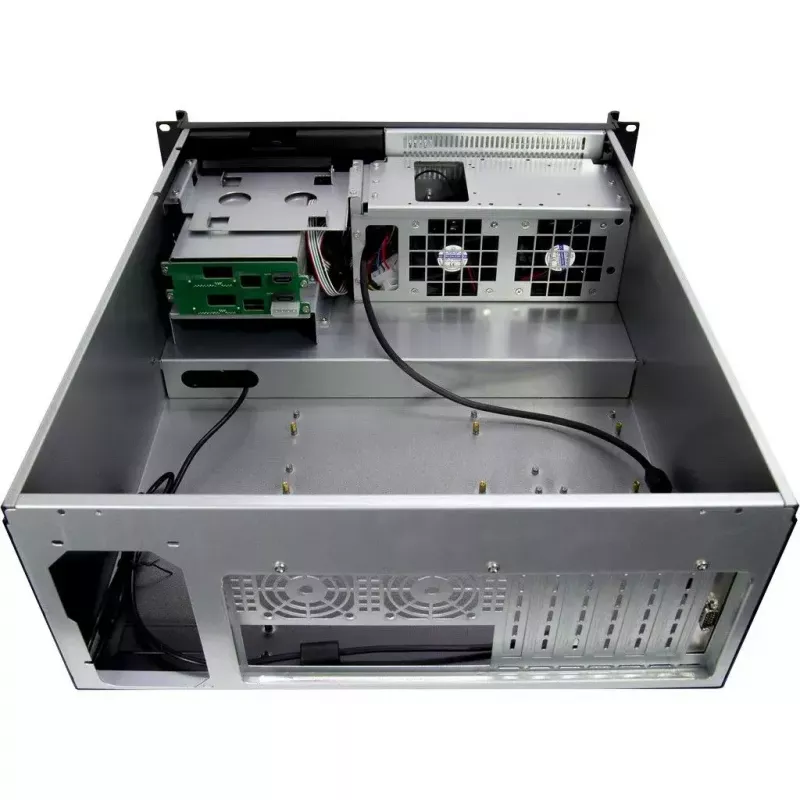

The Inter-Tech 4U 4452-TFT Rack Black is a 4U server case with an integrated TFT display and a built-in keyboard/mouse drawer, designed for servers and workstations where a 19" rack setup is not possible. The steel chassis supports Mini-ITX, Micro ATX and ATX motherboards and accepts both 2.5" and 3.5" hard drives via two hot-swap drive frames located behind a lockable front door. The case includes mounting for a Slim-DVD drive that can be removed for easier installation, two front USB 2.0 ports and supplied VGA cables for display connectivity.

Advantages

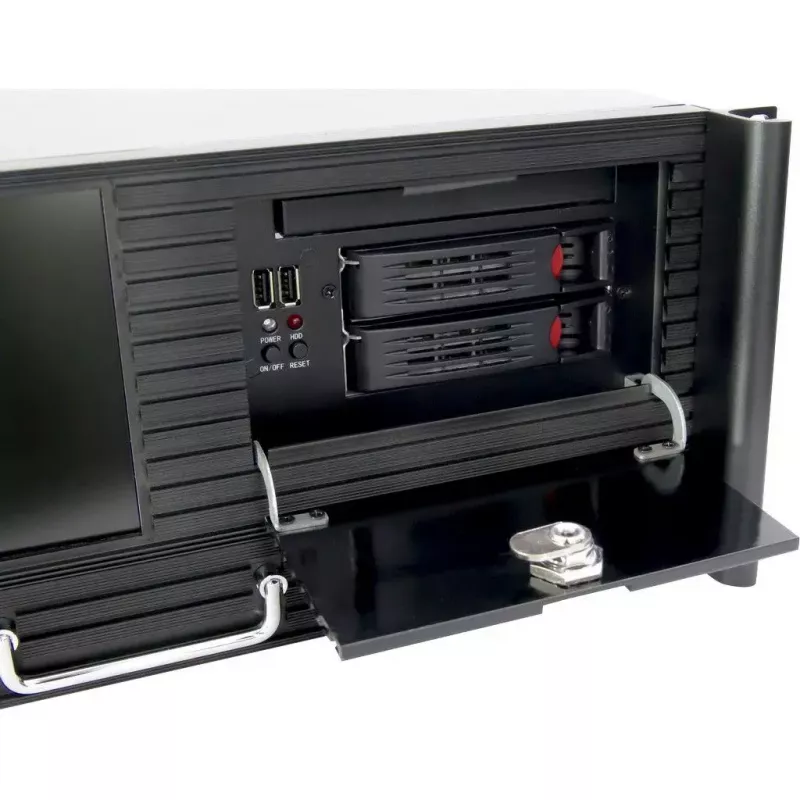

The integrated TFT display and folding keyboard/mouse drawer provide compact, on-site access without requiring a separate 19" rack console. Lockable front door with hot-swap frames secures external drives and USB ports against unauthorized access. Removable Slim-DVD mounting simplifies installation of optical drives. The steel construction and support for common motherboard form factors ensure durability and compatibility with standard server and workstation components.

Suitable for

• Small server deployments where a full 19" rack console is not available
• Workstations that require local display and input in constrained spaces
• Systems needing hot-swappable 2.5" or 3.5" drives with front access

Key specifications

• Form factor: 4U rack case
• Material: Steel
• Supported motherboards: Mini-ITX, Micro ATX, ATX
• Drive bays: 2 × 3.5" (also supports 2.5") hot-swap frames behind lockable front door
• Optical drive: Removable Slim-DVD mounting (no 5.25" bays)
• Front ports: 2 × USB 2.0
• Cooling support: 80 mm front fans, 60 mm rear fan
• Dimensions (W×D×H): 482 × 555 × 177 mm
• Weight: 12.97 kg
• Colour: Black
• Included accessories: VGA cables

How to use

Install the motherboard (Mini-ITX, Micro ATX or ATX) into the steel chassis and mount the power supply (not included) in the designated area. Fit storage drives into the hot-swap frames behind the lockable front door; the frames accept 2.5" and 3.5" drives. If required, remove the Slim-DVD mounting to install a Slim optical drive. Connect peripherals to the front USB 2.0 ports or to rear I/O as needed. Use the integrated TFT display and the pull-out keyboard/mouse drawer for local setup and maintenance in environments without a 19" rack console.

Recommendations

For reliable cooling and longevity, use the specified fan sizes (80 mm front, 60 mm rear) and ensure adequate airflow in the installation environment. Keep the front door locked to protect hot-swap drives and USB ports when the system is unattended.
