Cassetta di giunzione in fibra ottica DeLOCK 67006 nero metallo 482x220x44mm

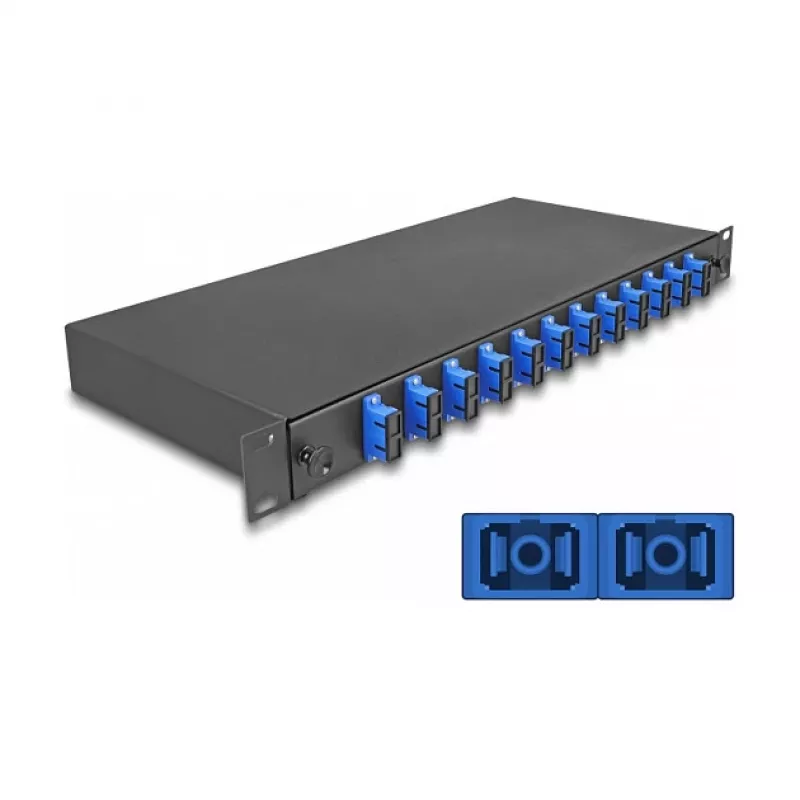

The DeLOCK fibre optic splice enclosure 67006 is a pre-assembled optical fiber splice box designed for mounting in a 19" rack. Housed in a black metal case with dimensions 482 x 220 x 44 mm, it provides a compact, robust solution for organising and protecting fibre optic splices in building network installations.

Advantages

The enclosure comes pre-equipped with 12 SC Duplex couplers and 24 pigtails already inserted into the splice cassette, which reduces installation time and simplifies cable management. The metal housing offers mechanical protection and the front panel is a pull-out drawer, allowing access to both sides of the couplers without removing the cover.

Suitable for

• Rack-mounted fibre optic patching and splicing in server rooms
• Structured cabling installations in commercial or residential buildings
• Network closets where space-efficient 19" rack mounting is required

Key specifications

• Brand: DELOCK
• Model / MPN: 67006
• EAN: 4043619670062
• Dimensions (W x D x H): 482 x 220 x 44 mm
• Material: Metal housing, black finish
• Connector type: 12 × SC Duplex couplers
• Pigtails: 24 pigtails pre-installed in splice cassette
• Mounting: 19" rack compatible

How to use

Install the enclosure in a 19" rack and secure it according to rack-mounting instructions. Route incoming and outgoing fiber cables into the enclosure, prepare fibre ends, and perform splicing in the supplied splice cassette where the 24 pigtails are pre-inserted. Connect completed splices to the 12 SC Duplex couplers on the front panel. Use the pull-out front drawer to access couplers from both sides during routing or maintenance without removing the top cover.

Recommendations

For reliable long-term performance, handle fibres with appropriate fibre-handling tools, follow standard splicing procedures, and ensure the enclosure is installed in a dust-free, climate-appropriate rack space. Use strain relief on incoming cables and label connections to simplify future maintenance.
