Cavo ACT AK4083 DisplayPort 3 m nero

Cavo ACT AK4083 DisplayPort 3 m nero
Cavo ACT AK4083 DisplayPort 3 m nero
Cavo ACT AK4083 DisplayPort 3 m nero
Cavo ACT AK4083 DisplayPort 3 m nero
Cavo ACT AK4083 DisplayPort 3 m nero
Cavo ACT AK4083 DisplayPort 3 m nero
Cavo ACT AK4083 DisplayPort 3 m nero
Cavo ACT AK4083 DisplayPort 3 m nero
60 mesi
Cavo ACT AK4083 DisplayPort 3 m nero
Cavo ACT AK4083 DisplayPort 3 m nero
Cavo ACT AK4083 DisplayPort 3 m nero
Cavo ACT AK4083 DisplayPort 3 m nero
Cavo ACT AK4083 DisplayPort 3 m nero
Cavo ACT AK4083 DisplayPort 3 m nero
Cavo ACT AK4083 DisplayPort 3 m nero
Cavo ACT AK4083 DisplayPort 3 m nero
29,03 €
PDF
PDF
Stock 10 Codice 2411353 Modello AK4083 Garanzia 5 anni

Spedizioni e resi

Consegna stimata martedì 1 dicembre
Ti terremo aggiornato tramite il nostro sistema di tracciamento dettagliato
Opzioni di pagamento
Carta di credito/debitoVisaMastercardPayPalApple PayGoogle PayBonifico bancario

Fai una domanda – l'assistente AI risponde subito.

Descrizione

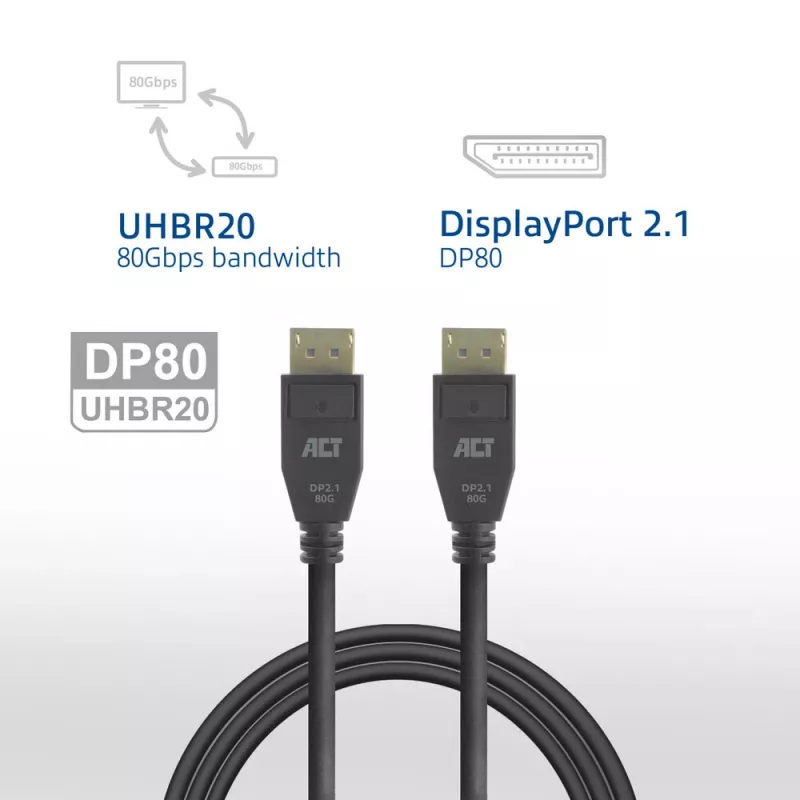

The ACT AK4083 DisplayPort cable is a 3 m black DisplayPort 2.1 cable (DP80 UHBR20) designed for high-bandwidth video and audio connections. The cable supports up to 80 Gbps bandwidth and delivers resolutions up to 10K@30Hz, 8K@60Hz and 4K@240Hz. It includes a snap-in locking connector for a secure physical connection and supports HDR, HDCP 2.2, DSC 1.2a and multi-channel audio formats.

Advantages

The cable provides a high maximum bandwidth of 80 Gbps and UHBR20 performance for demanding video applications, enabling high resolutions and high refresh rates. Support for Display Stream Compression (DSC 1.2a), HDR and HDCP 2.2 ensures compatibility with modern displays and protected content. Gold-plated contacts and full copper conductors ensure reliable signal transmission, while the snap-in lock reduces the risk of accidental disconnection.

Suitable for

When it may not be suitable

This cable may be unnecessary for basic office tasks or older systems that do not support DisplayPort 2.1 features or require only low resolutions and refresh rates. Systems limited to earlier DisplayPort versions or with lower bandwidth needs will not benefit from the full capabilities of this cable.

Key specifications

How to use

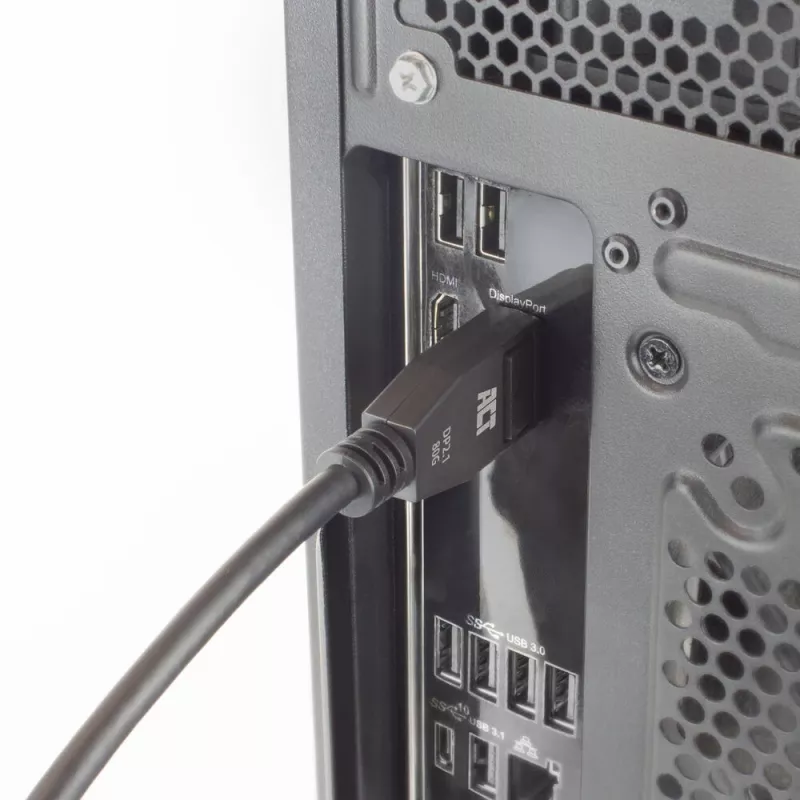

Connect one DisplayPort male connector to the DisplayPort output of your source device (PC, graphics card or media player) and connect the other DisplayPort male connector to the DisplayPort input of your monitor, projector or AV receiver. Ensure both devices support the desired resolution and refresh rate and enable any required settings such as DSC, HDR or the appropriate output mode in the source device's display settings. Push the connector until the snap-in mechanism engages to secure the connection.

What to consider before purchase

Recommendations

For best results use the cable with devices that explicitly support DisplayPort 2.1 and UHBR20. Configure source and display settings to match the target resolution and refresh rate, enable DSC if needed, and ensure firmware and drivers are up to date to achieve stable 8K/10K output and HDR performance.
Punti salienti
  • High-resolution medical imaging displays and diagnostic workstations
  • Lecture halls, auditoriums and educational presentation systems
  • Corporate meeting rooms, video conferencing and presentation systems
  • Home theaters, gaming rigs, graphic design and video editing setups
  • DisplayPort version: 2.1 (DP80 UHBR20)
  • Maximum bandwidth: 80 Gbps
  • Maximum resolutions and refresh rates: 10K@30Hz, 8K@60Hz, 4K@240Hz
  • Video features: HDR support, Display Stream Compression (DSC 1.2a), Forward Error Correction (FEC), Multi-Stream Transport (MST)
  • Content protection: HDCP 2.2 support
  • Audio: multi-channel audio support including Dolby TrueHD and DTS-HD Master Audio

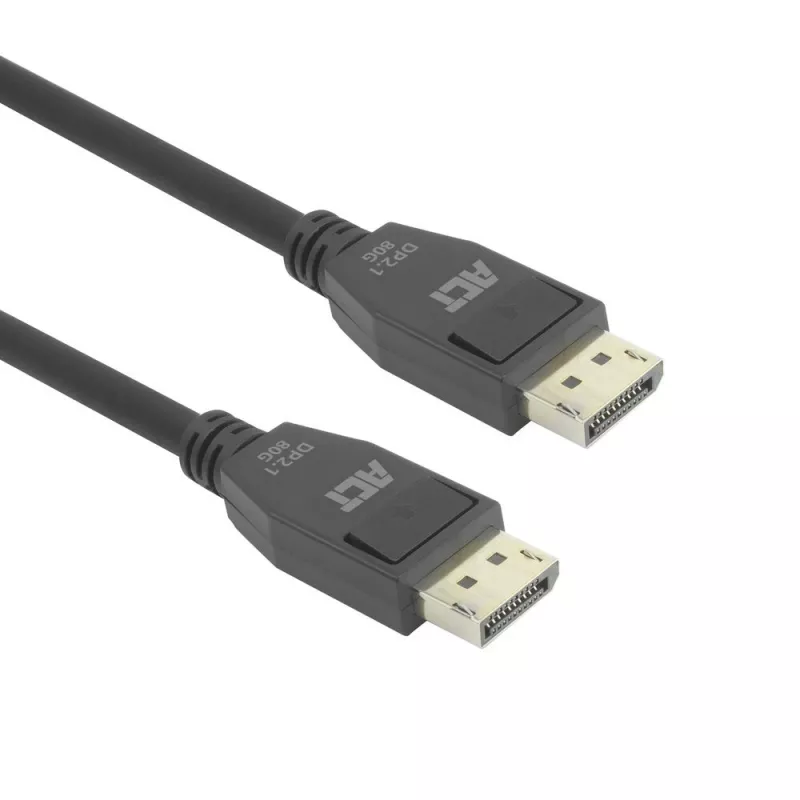

  • Connectors: DisplayPort male to DisplayPort male, snap-in locking connector
  • Conductors and contacts: full copper conductors, gold-plated contacts
  • Cable length: 3 m
  • Colour: black
  • Whether your source device and display support DisplayPort 2.1 features (resolution, refresh rate and DSC)
  • If your workflow requires HDR, HDCP 2.2 or multi-channel audio support
  • Required cable length and routing for your setup (this model is 3 m)
  • Compatibility with existing connectors and mounting constraints (DisplayPort male to male)

Specifiche

Specifiche
Colore del prodotto
Nero
Connettore 1
DisplayPort
Connettore 1 bloccabile
Sì
Connettore 1 maschio/femmina
Maschio
Connettore 2
DisplayPort
Connettore 2 bloccabile
Sì
Connettore 2 maschio/femmina
Maschio
Formato connettore 1
Dritto
Formato connettore 2
Dritto
Frequenza di aggiornamento massima
240 Hz
HDCP
Sì
Lunghezza del cavo
3 m
Materiale della guaina
Cloruro di polivinile (PVC)
Placcatura dei contatti del connettore
Oro
Plug and Play
Sì
Risoluzione massima
7680 x 4320 pixel
Scansione a colori
4:4:4
Schermato magneticamente
Sì
Schermatura del cavo
Foglio di Mylar in alluminio
Sezione del conduttore (AWG)
30
Tipo di cavo
Cavo rotondo
Velocità di trasferimento dati
80 Gbit/s
Versione DisplayPort
2.1
