Cavo adattatore di alimentazione InLine 2x 5,25" / 6 pin PCI-E MF17784

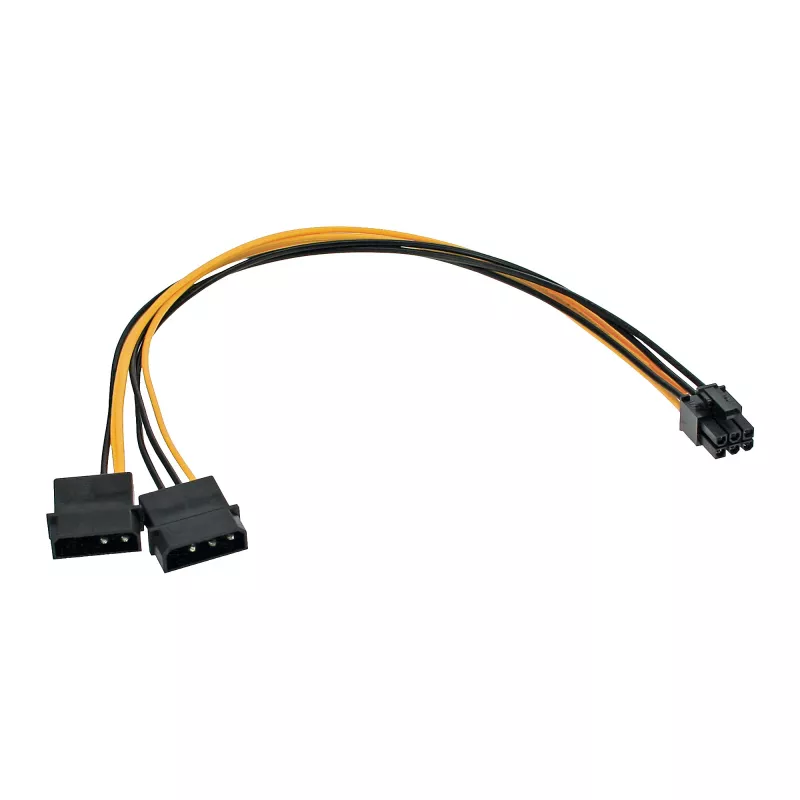

The InLine Power Adapter Cable 2x 5.25" / 6 Pin PCI-E MF17784 is a short adapter cable that provides a 6‑pin PCI‑Express power connector where the power supply unit does not have one. It is intended to route power from standard PSU drive connectors to graphics cards or other components requiring a 6‑pin PCI‑E plug, helping to enable upgrades or additions that need this connector.

Advantages

This adapter offers a compact 0.3 m length for easier cable management in confined enclosures while maintaining reliable power delivery. It converts two 5.25" drive power outputs into a single 6‑pin PCI‑E connector, eliminating the need to replace the existing power supply. The cable is compatible with typical desktop PSUs and supports common graphics card power requirements.

Suitable for

• Connecting graphics cards that require a 6‑pin PCI‑Express power connector
• Supplying additional PCI‑E powered expansion cards
• Temporary or permanent installations where the PSU lacks a native 6‑pin PCI‑E output

Key specifications

• Model: InLine MF17784
• Connector: 2x 5.25" (Molex) to 6‑pin PCI‑E
• Length: 0.3 m
• Colour: Multicolour
• EAN: 4043718048717

How to use

Power off the computer and unplug it from the mains before installation. Connect the two 5.25" drive power (Molex) plugs to available PSU drive power sockets, then insert the 6‑pin PCI‑E connector into the device's PCI‑Express power inlet, ensuring correct orientation. After all connections are secure, restore mains power and power on the system. Verify stable operation of the component under load.

Recommendations

Do not use this adapter if your component's power requirements exceed the combined current rating of the PSU drive outputs; consult the component’s specifications and your PSU manual. Avoid forcing connectors; ensure a secure, correct fit and inspect cables for damage before use.
